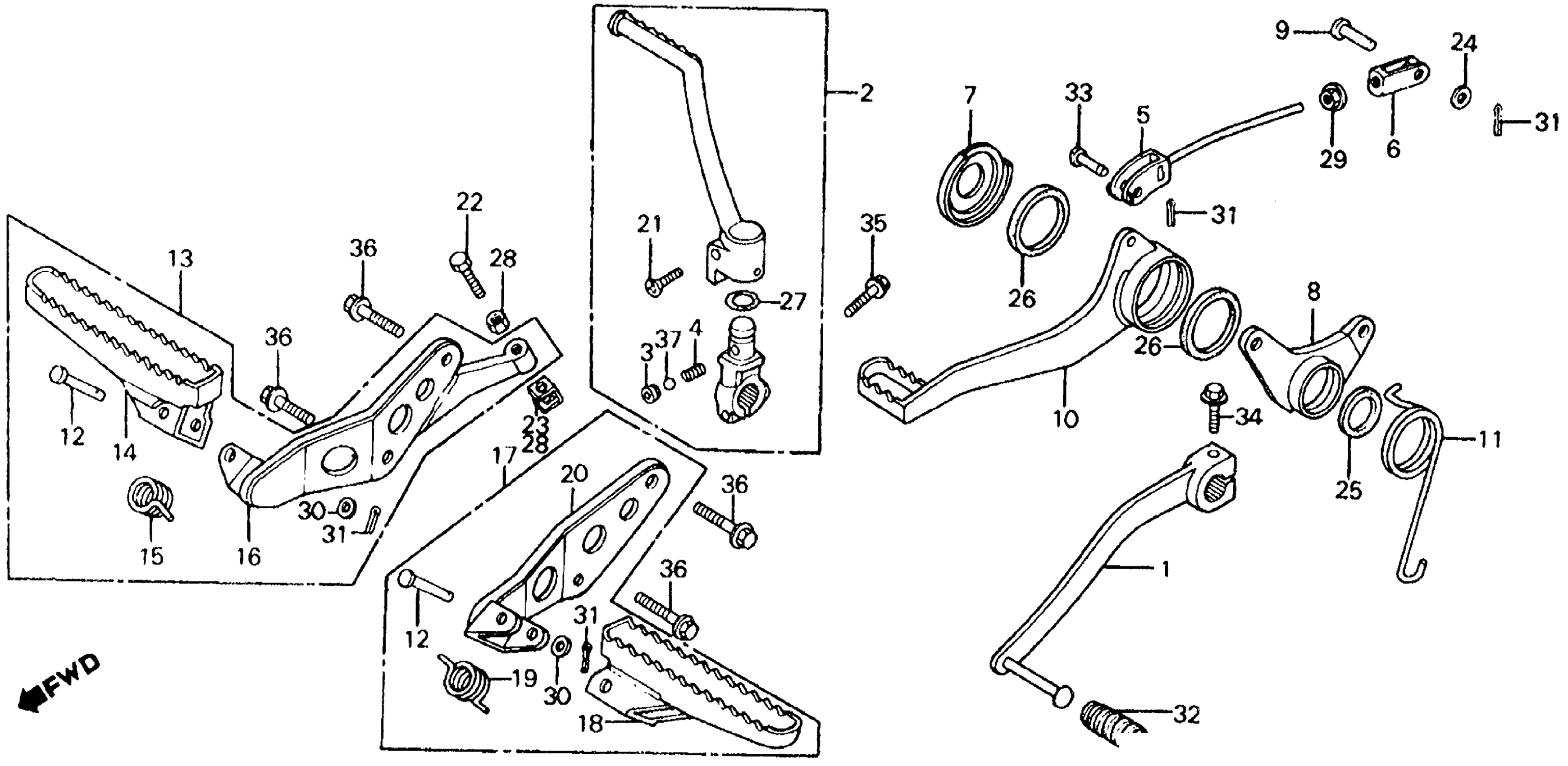

Honda ATC200XA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-FK400006 TO JH3TB052-FK447345 FOOTPEGS + BRAKE PEDAL + GEARSHIFT PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24701-HC0-000

Unavailable

1

PEDAL, GEARSHIFT (NOT AVAILABLE) This part replaces 24701-965-000.

24701-HC0-000

Unavailable

2

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-965-010

Unavailable

3

PLUG, KICK ARM | Use from Frame SN EC300116

28302-965-000

$2.59

4

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

5

ROD, RR. BRAKE (NOT AVAILABLE)

43451-965-000

Unavailable

6

JOINT, BRAKE ROD (NOT AVAILABLE)

43452-965-000

Unavailable

7

STOPPER, BRAKE PEDAL (NOT AVAILABLE)

46501-965-000

Unavailable

8

ARM, MIDDLE BRAKE (NOT AVAILABLE)

46502-965-000

Unavailable

9

PIN, BRAKE ROD

46503-371-000

Unavailable

10

PEDAL, BRAKE

46510-965-000

Unavailable

11

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-965-000

Unavailable

12

PIN, STEP JOINT (NOT AVAILABLE) | Use from Frame SN EC300116 This part replaces 50603-964-670.

50603-HA0-680

Unavailable

12

PIN, STEP JOINT (NOT AVAILABLE) | Use up to Frame SN EC300115

50603-965-000

Unavailable

13

ARM ASSY., R. STEP (NOT AVAILABLE) This part replaces 50610-965-020.

50610-965-030

Unavailable

13

ARM ASSY., R. STEP (NOT AVAILABLE)

50610-965-030

Unavailable

14

STEP, R. (NOT AVAILABLE) This part replaces 50610-964-670.

50610-HA0-770

Unavailable

15

SPRING, R. STEP RETURN

50617-HA0-680

Unavailable

15

SPRING, R. STEP RETURN This part replaces 50617-964-000.

50617-HA0-680

Unavailable

16

ARM, R. FOOTPEG | Use up to Frame SN EC300115 This part replaces 50618-965-020.

50618-965-030

Unavailable

16

ARM, R. FOOTPEG | Use up to Frame SN EC300115

50618-965-030

Unavailable

16

ARM, R. FOOTPEG

50618-965-030

Unavailable

17

ARM ASSY., L. FOOTPEG (NOT AVAILABLE)

50640-965-030

Unavailable

18

STEP, L. (NOT AVAILABLE) This part replaces 50620-964-670.

50620-HA0-770

Unavailable

19

SPRING, L. STEP RETURN

50618-HA0-680

Unavailable

19

SPRING, L. STEP RETURN This part replaces 50618-964-000.

50618-HA0-680

Unavailable

20

ARM, L. FOOTPEG (NOT AVAILABLE)

50648-965-030

Unavailable

21

BOLT, KICK ARM | Use up to Frame SN EC300115

90101-329-000

$3.67

21

SCREW (6X28) | Use from Frame SN EC300116

90104-965-003

Unavailable

22

BOLT, HEX. (8X28) (NOT AVAILABLE) | Use up to Frame SN EK305025

90115-428-000

Unavailable

23

NUT, BRAKE STOPPER BOLT

90304-965-003

Unavailable

24

WASHER (7X12)

90501-310-000

$1.74

25

OIL SEAL (19X25X3)

91206-965-003

Unavailable

26

OIL SEAL (36X42X3) (NOT AVAILABLE)

91207-965-003

Unavailable

27

O-RING (13.5X1.5) (ARAI)

91353-671-003

$2.73

28

NUT, HEX. (8MM)

94002-08000-0S

$1.49

29

NUT, FLANGE (6MM)

94050-06000

$1.49

30

WASHER, THRUST (8MM)

90450-147-000

$1.80

31

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

31

PIN, COTTER (1.6X25)

94201-16250

$1.49

32

RUBBER, SHIFT PEDAL

95011-40000

$1.49

33

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

34

BOLT, FLANGE (6X20)

90118-968-000

$4.24

35

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

35

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

36

BOLT, FLANGE (10X25) This part replaces 95700-10025-00.

95701-10025-00

$2.19

36

BOLT, FLANGE (10X25)

95701-10025-00

$2.19

37

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
