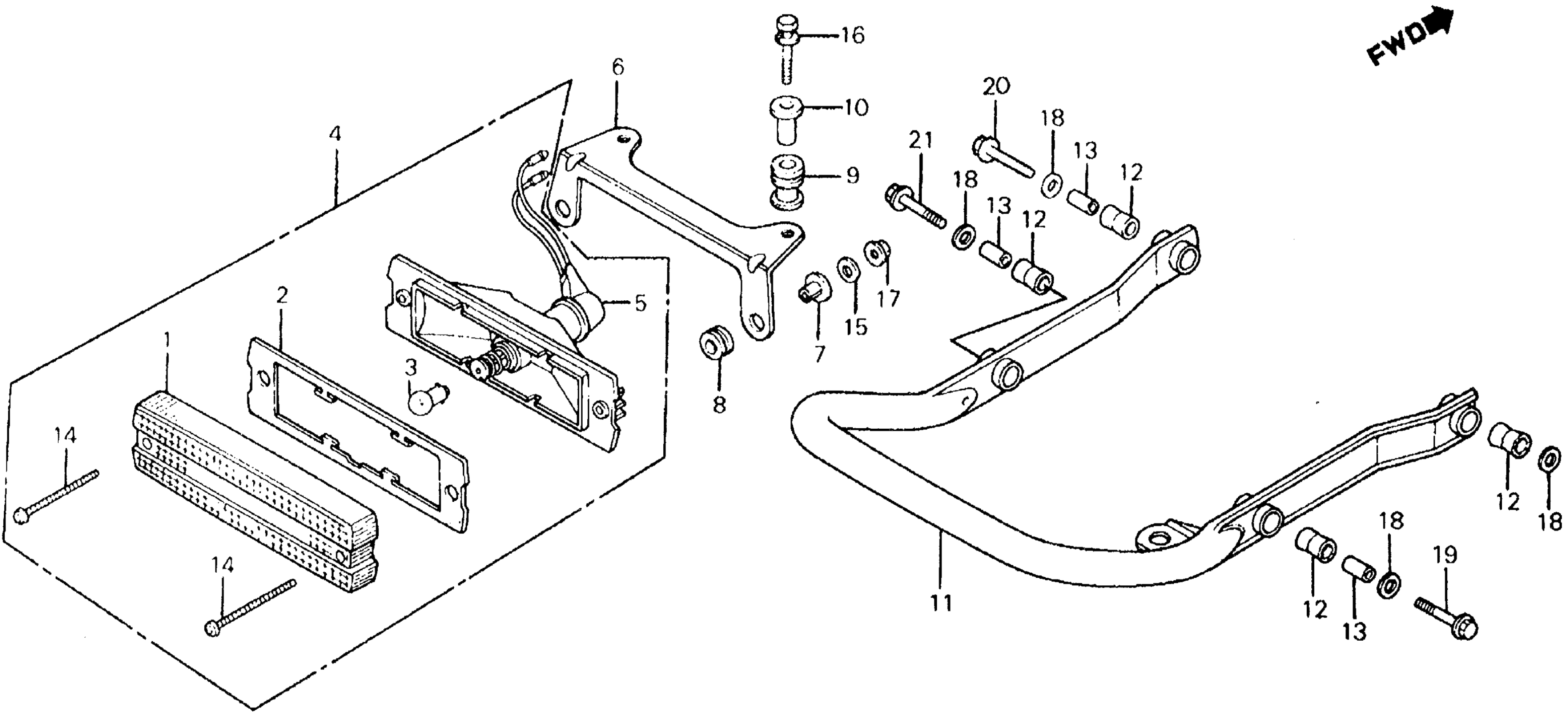

Honda ATC200XA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-EK300006 TO JH3TB052-EK331377 TAILLIGHT Diagram

#

Description
Price

1

LENS, TAILLIGHT

33302-965-003

Unavailable

2

GASKET, TAILLIGHT

33303-965-003

Unavailable

3

BULB (12V5W) (STANLEY) (NOT AVAILABLE) This part replaces 33310-594-601.

34910-504-003

Unavailable

3

BULB (12V5W) (STANLEY) (NOT AVAILABLE)

34910-504-003

Unavailable

4

TAILLIGHT ASSY.

33700-VM4-770

Unavailable

4

TAILLIGHT ASSY. This part replaces 33700-965-003.

33700-VM4-770

Unavailable

5

COVER, SOCKET

33702-965-003

Unavailable

6

BRACKET, TAILLIGHT (NOT AVAILABLE)

33705-965-000

Unavailable

7

COLLAR, TAILLIGHT MOUNTING

33712-965-000

Unavailable

8

RUBBER, TAILLIGHT SETTING

33715-965-000

$5.10

9

RUBBER, TAILLIGHT MOUNT (NOT AVAILABLE)

33731-958-670

Unavailable

10

COLLAR, TAILLIGHT SETTING (NOT AVAILABLE)

33732-958-671

Unavailable

11

PIPE, CARRIER (NOT AVAILABLE)

81200-965-000

Unavailable

12

RUBBER, CARRY PIPE MOUNTING

81201-965-000

Unavailable

13

COLLAR, CARRY PIPE MOUNTING

81202-965-000

Unavailable

14

SCREW, PAN (4X50)

90121-965-003

Unavailable

15

WASHER, SPECIAL (4MM) (NOT AVAILABLE)

90555-357-000

Unavailable

16

BOLT-WASHER (6X35)

93482-06035-08

$2.00

16

BOLT-WASHER (6X35) This part replaces 93492-06035-08.

93482-06035-08

$2.00

17

NUT, FLANGE (4MM)

94050-04000

$1.49

18

WASHER, PLAIN (8MM)

94103-08000

$1.49

19

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

19

BOLT, FLANGE (8X32)

95701-08032-00

$1.49

20

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.30

20

BOLT, FLANGE (8X35)

95701-08035-00

$2.30

21

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.49

21

BOLT, FLANGE (8X40)

95701-08040-00

$1.49
