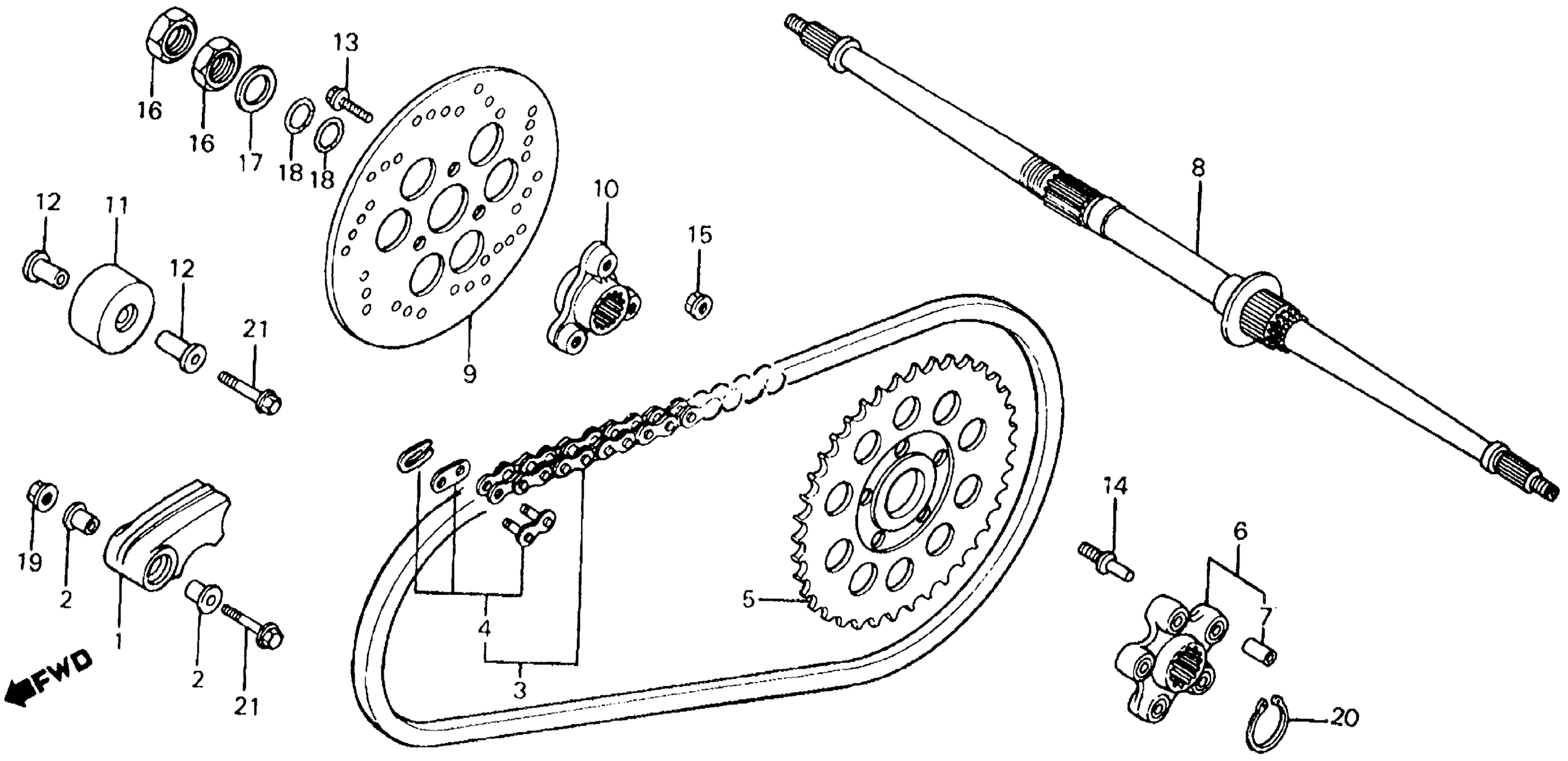

Honda ATC200XA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-EK300006 TO JH3TB052-EK331377 REAR WHEEL AXLE Diagram

#

Description
Price

1

GUIDE, DRIVE CHAIN (NOT AVAILABLE)

40513-965-000

Unavailable

2

COLLAR, CHAIN GUIDE (NOT AVAILABLE)

40514-965-000

Unavailable

3

CHAIN, DRIVE (NOT AVAILABLE)

405W3-HB9-505

Unavailable

3

CHAIN, DRIVE (NOT AVAILABLE) This part replaces 40530-965-003.

405W3-HB9-505

Unavailable

4

MASTER LINK (DAIDO)

40531-HB5-671

Unavailable

4

MASTER LINK (DAIDO) This part replaces 40531-958-671.

40531-HB5-671

Unavailable

5

SPROCKET (40T) This part replaces 41201-965-000.

41201-965-505

Unavailable

6

DAMPER, SPROCKET (NOT AVAILABLE)

41240-965-000

Unavailable

7

BUSH, RR. WHEEL DAMPER

41241-307-010

$15.06

8

AXLE, RR. WHEEL (NOT AVAILABLE)

42310-965-000

Unavailable

9

DISK, BRAKE (NOT AVAILABLE)

43122-965-000

Unavailable

10

FLANGE, BRAKE DISK (NOT AVAILABLE)

43125-965-000

Unavailable

11

ROLLER, CHAIN (NOT AVAILABLE)

52158-467-000

Unavailable

12

COLLAR, CHAIN ROLLER

52159-467-000

$11.56

13

BOLT, UBS (8X18)

90112-HE0-000

Unavailable

13

BOLT, UBS (8X18) This part replaces 90112-961-000.

90112-HE0-000

Unavailable

14

BOLT, DRIVEN SPROCKET FIXING

90128-382-670

$6.52

14

BOLT, DRIVEN SPROCKET FIXING This part replaces 90128-446-770.

90128-382-670

$6.52

15

NUT, AXLE (10MM)

90304-GA6-003

$2.89

16

NUT, RR. AXLE

90307-961-000

Unavailable

17

WASHER, TAPER

90481-HC4-000

$7.70

17

WASHER, TAPER This part replaces 90481-958-000.

90481-HC4-000

$7.70

18

O-RING (32.5X1.8)

91316-PY4-003

$3.39

18

O-RING (32.5X1.8) This part replaces 91355-943-000.

91316-PY4-003

$3.39

19

NUT, FLANGE (8MM)

94050-08000

$1.49

20

CIRCLIP (OUTER) (45MM)

94511-45000

Unavailable

21

BOLT, FLANGE (8X40) This part replaces 95800-08040-00.

95801-08040-00

$1.49

21

BOLT, FLANGE (8X40)

95801-08040-00

$1.49
