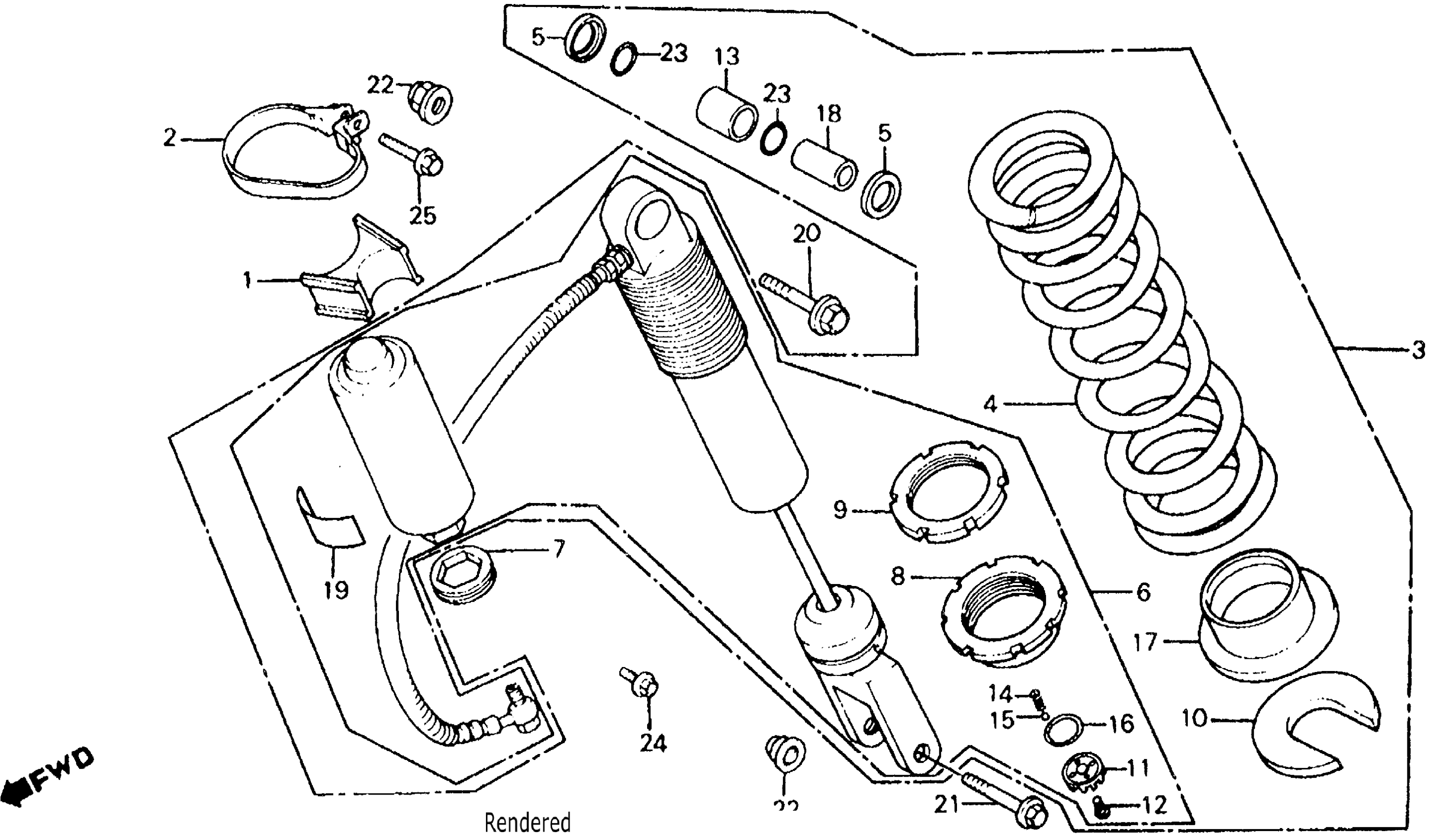

Honda ATC200XA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-EK300006 TO JH3TB052-EK331377 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

RUBBER, SUB-TANK MOUNTING (NOT AVAILABLE)

50250-965-000

Unavailable

2

BAND, SUB-TANK

50252-965-000

Unavailable

3

SHOCK ABSORBER ASSY., RR. | Use up to Frame SN EC300115 This part replaces 52400-965-003.

52400-965-681

Unavailable

3

SHOCK ABSORBER ASSY., RR. This part replaces 52400-965-013.

52400-965-681

Unavailable

3

SHOCK ABSORBER ASSY., RR. | Use up to Frame SN EC300115 This part replaces 52400-965-013.

52400-965-681

Unavailable

3

SHOCK ABSORBER ASSY., RR.

52400-965-681

Unavailable

3

SHOCK ABSORBER ASSY., RR. | Use up to Frame SN EC300115

52400-965-681

Unavailable

4

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE) This part replaces 52401-965-013.

52401-965-681

Unavailable

4

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE) This part replaces 52401-965-003.

52401-965-681

Unavailable

5

CAP, DUST SEAL

52406-KB7-003

$6.48

6

DAMPER, RR. (NOT AVAILABLE) | Use up to Frame SN EC300115

52410-965-003

Unavailable

6

DAMPER, RR. | Use from Frame SN EC300116

52410-965-013

Unavailable

7

SHOCK, SUB-TANK (NOT AVAILABLE)

52412-965-003

Unavailable

10

STOPPER, SPRING SEAT

52424-MA0-003

Unavailable

11

PLATE, ADJUSTING

52429-KF0-003

Unavailable

12

SCREW

52448-KF0-003

$2.90

13

BUSH, SHOCK ABSORBER (UPPER)

52452-KB7-003

$15.55

14

SPRING, CLICK

52455-KF0-003

$4.97

15

BALL

52456-KF0-003

$3.28

16

SEAL, RING

52457-KF0-003

Unavailable

17

SEAT C, SPRING

52459-MA0-003

Unavailable

18

COLLAR, SHOCK ABSORBER (UPPER)

52486-KB7-003

$14.81

20

BOLT, SPECIAL FLANGE (10X58)

90153-965-000

$6.87

20

BOLT, SPECIAL FLANGE (10X58) This part replaces 90153-965-010.

90153-965-000

$6.87

21

BOLT, SPECIAL FLANGE (10X58)

90155-965-003

Unavailable

22

NUT, AXLE (10MM)

90304-GA6-003

$2.89

23

DUST SEAL B

91351-KB7-003

$3.49

24

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

24

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

25

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

25

BOLT, FLANGE (6X16)

95701-06016-08

$1.49
