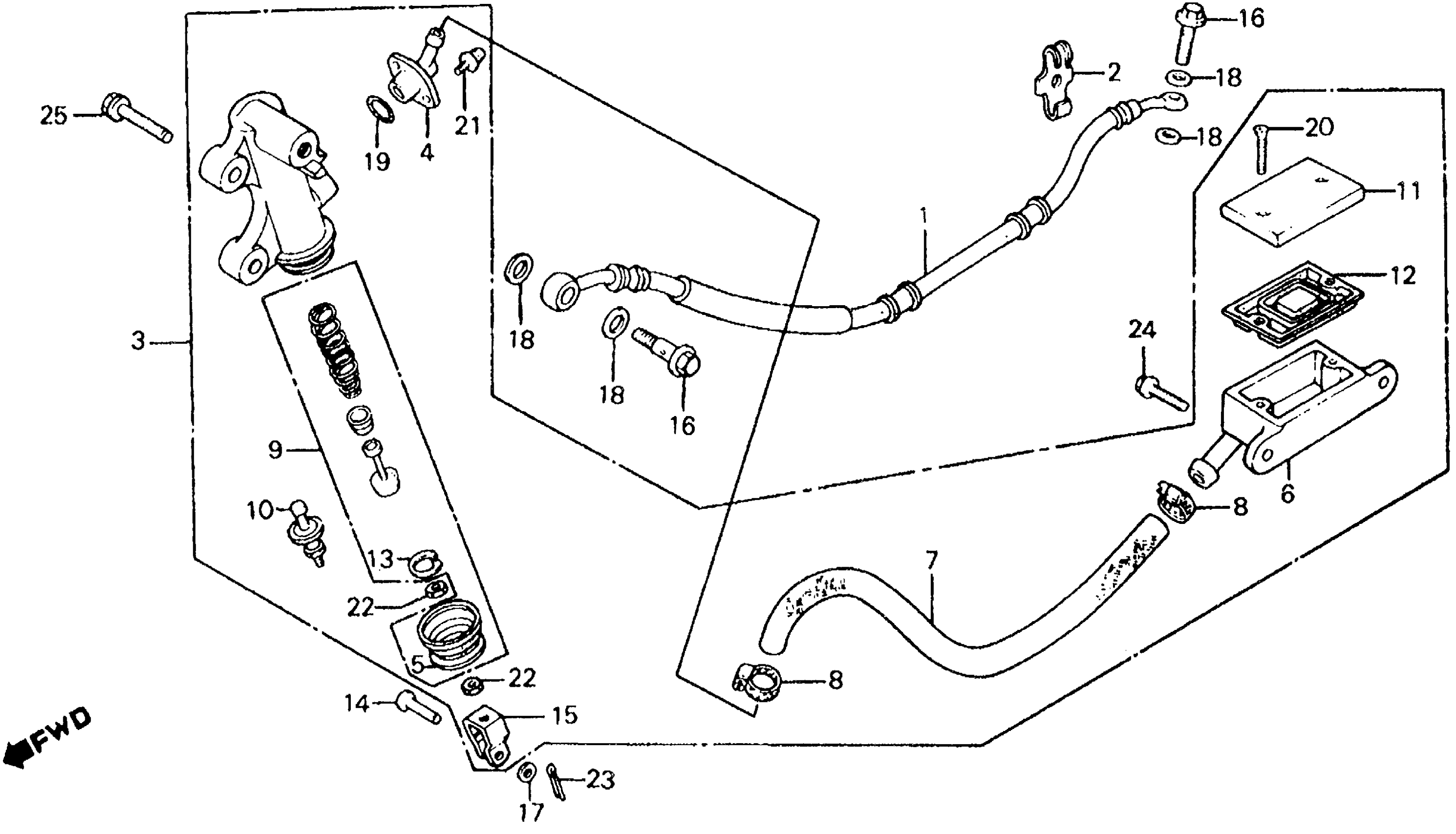

Honda ATC200XA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-EK300006 TO JH3TB052-EK331377 REAR BRAKE MASTER CYLINDER Diagram

HOSE ASSY., RR. BRAKE (NOT AVAILABLE) | Use up to Frame SN EK312811 This part replaces 43310-965-013.

43310-965-023

Unavailable

HOSE ASSY., RR. BRAKE (NOT AVAILABLE) | Use from Frame SN EK312812

43310-965-023

Unavailable

CLAMP, BRAKE HOSE

43311-965-000

$7.61

MASTER CYLINDER ASSY., RR. (NOT AVAILABLE)

43500-965-016

Unavailable

CONNECTOR, MASTER CYLINDER

43503-422-006

Unavailable

CUP, OIL

43511-965-006

Unavailable

HOSE, MASTER CYLINDER OIL (NOT AVAILABLE)

43512-965-016

Unavailable

CLAMP, MASTER CYLINDER OIL HOSE | Use up to Frame SN EK312811

43514-445-771

$12.27

PISTON SET, MASTER CYLINDER

43520-965-305

Unavailable

ROD, PUSH (NOT AVAILABLE)

43530-965-006

Unavailable

CAP, MASTER CYLINDER

45513-GE2-681

Unavailable

DIAPHRAGM

45520-GE2-006

$9.58

DIAPHRAGM

45520-MG7-006

$10.61

CIRCLIP, MASTER CYLINDER

46182-500-013

$4.90

PIN, BRAKE ROD

46503-371-000

Unavailable

JOINT, BRAKE ROD (NOT AVAILABLE) | Use up to Frame SN EK323600

46504-445-771

Unavailable

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

BOLT, OIL

90145-300-010

$9.68

BOLT, OIL This part replaces 90145-961-000.

90145-300-010

$9.68

WASHER (7X12)

90501-310-000

$1.74

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW, FLAT (4X30)

93600-04030-1H

Unavailable

SCREW-WASHER (4X12)

93893-04012-08

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

NUT, HEX. (8MM) | Use up to Frame SN EK323600

94002-08000-0S

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, FLANGE (8X25) This part replaces 95700-08025-07.

95701-08025-07

$1.49

BOLT, FLANGE (8X25)

95701-08025-07

$1.49
