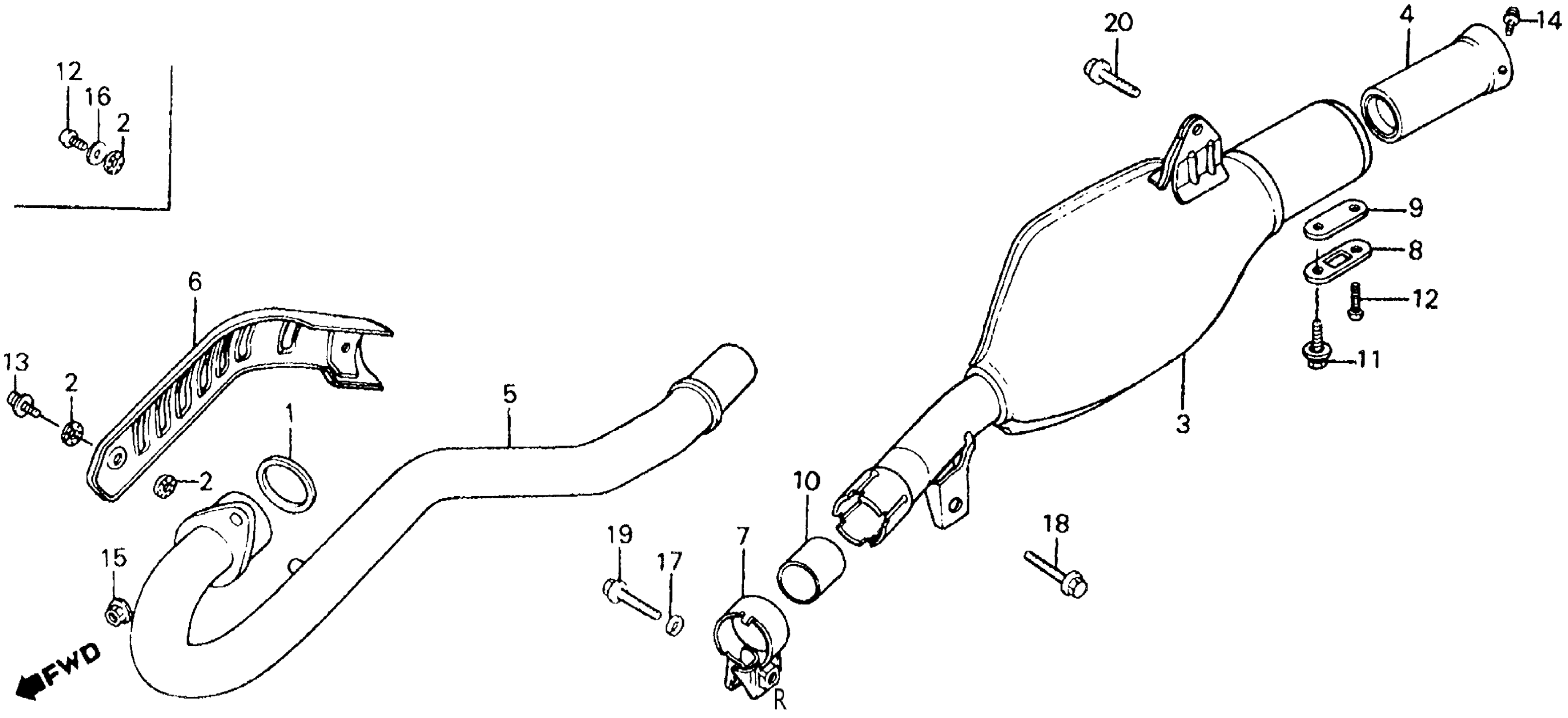

Honda ATC200XA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-EK300006 TO JH3TB052-EK331377 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MN5-650

$3.52

1

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.52

2

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$2.81

2

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$2.81

2

GASKET, PROTECTOR

18292-MM9-740

$2.81

3

MUFFLER (NOT AVAILABLE)

18310-965-003

Unavailable

4

PIPE, TAIL (NOT AVAILABLE)

18311-965-003

Unavailable

5

PIPE, EX.

18320-965-003

Unavailable

6

PROTECTOR, EX. PIPE

18321-965-000

Unavailable

7

BAND, MUFFLER (NOT AVAILABLE)

18371-958-003

Unavailable

8

LID, MUFFLER

18373-429-010

$8.22

9

GASKET, MUFFLER LID

18374-MN1-880

$3.90

9

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$3.90

10

GASKET, MUFFLER

18391-958-306

$17.01

10

GASKET, MUFFLER This part replaces 18391-958-681.

18391-958-306

$17.01

11

BOLT-WASHER (6X12)

93401-06012-07

Unavailable

11

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

Unavailable

11

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

Unavailable

13

SCREW-WASHER (6X10)

93891-06010-08

$0.99

14

SCREW-WASHER (6X12)

93891-06012-07

$0.88

15

NUT, FLANGE (6MM)

94050-06000

$0.59

17

WASHER, SPRING (8MM)

94111-08000

$0.90

18

BOLT, FLANGE (8X14) This part replaces 95700-08014-00.

95701-08014-00

$1.19

18

BOLT, FLANGE (8X14)

95701-08014-00

$1.19

19

BOLT, FLANGE (8X25) | Use up to Frame SN EK308004 This part replaces 95700-08025-00.

95701-08025-00

$1.62

19

BOLT, FLANGE (8X25) | Use up to Frame SN EK308004

95701-08025-00

$1.62

19

BOLT, FLANGE (8X28) | Use from Frame SN EK308005 This part replaces 95700-08028-00.

95701-08028-00

$1.26

19

BOLT, FLANGE (8X28) | Use from Frame SN EK308005

95701-08028-00

$1.26

20

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.09

20

BOLT, FLANGE (8X35)

95701-08035-00

$2.09
