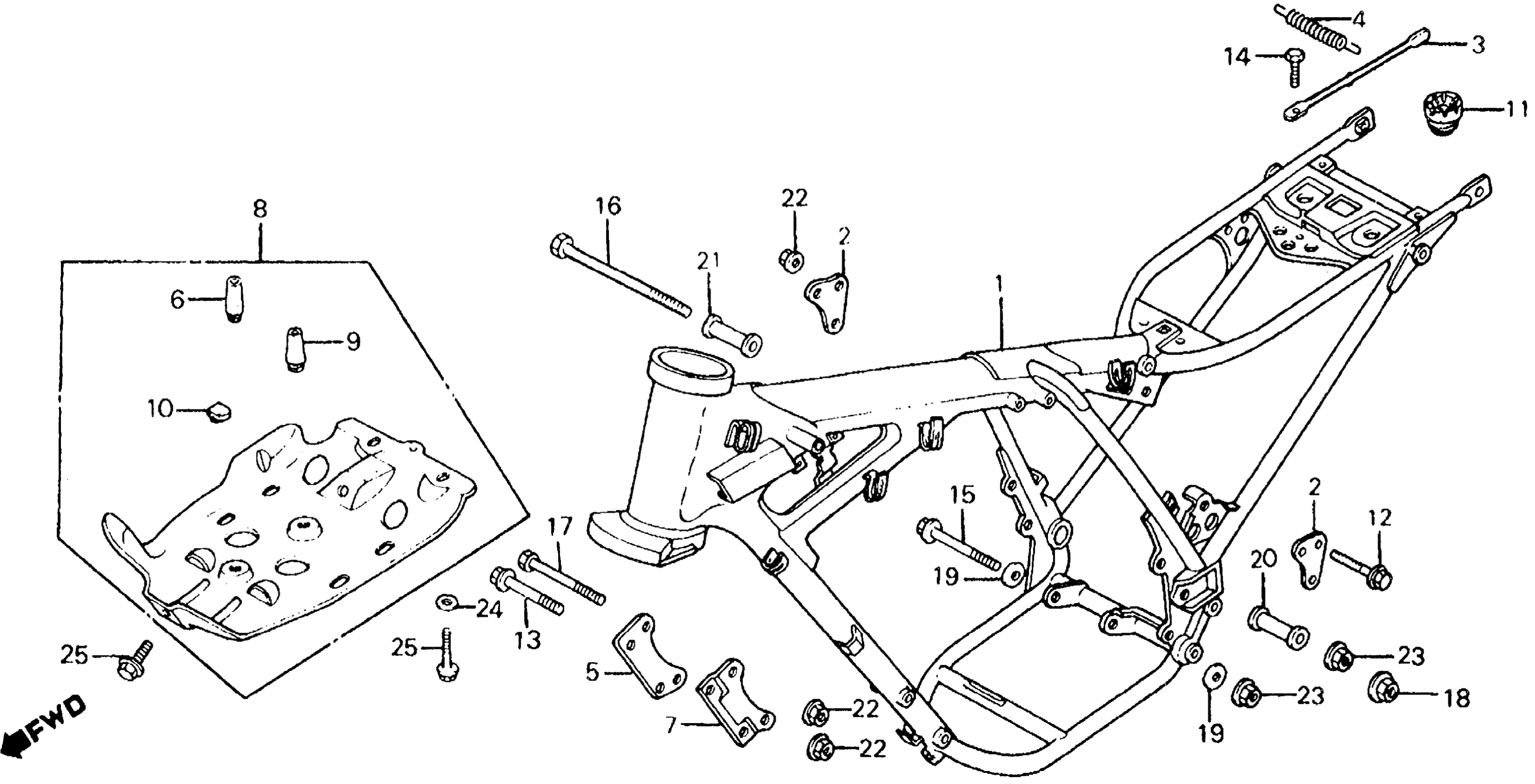

Honda ATC200XA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-EK300006 TO JH3TB052-EK331377 FRAME Diagram

FRAME *R109* (PASSION RED)

50100-965-010ZA

Unavailable

PLATE, ENGINE HANGER (UPPER) *R109* (PASSION RED) (NOT AVAILABLE)

50138-KA2-000ZC

Unavailable

LEVER, SEAT LOCK

50221-965-000

Unavailable

SPRING, SEAT LEVER

50224-965-000

Unavailable

HANGER, R. ENGINE (NOT AVAILABLE)

50351-965-000

Unavailable

RUBBER A, STOPPER

50352-434-000

$5.55

HANGER, L. ENGINE (NOT AVAILABLE)

50352-965-000

Unavailable

GUARD, ENGINE *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

50360-965-000ZA

Unavailable

RUBBER D, STOPPER

50361-961-000

Unavailable

RUBBER A, STOPPER (NOT AVAILABLE)

50361-965-000

Unavailable

RUBBER, SEAT SETTING

77207-HA0-000

$7.14

RUBBER, SEAT SETTING This part replaces 77207-958-670.

77207-HA0-000

$7.14

BOLT, FLANGE (8X62) This part replaces 90016-425-010.

90156-KA6-770

Unavailable

BOLT, FLANGE (8X62)

90156-KA6-770

Unavailable

BOLT, FLANGE (8X72) (NOT AVAILABLE)

90102-965-003

Unavailable

BOLT, FLANGE (6MM) | Use up to Frame SN EK300275

90111-162-000

$2.89

BOLT, FLANGE (10X117)

90120-449-770

Unavailable

BOLT, HEX. (10X220)

90135-437-000

$13.45

BOLT, HEX. (8X90) | Use up to Frame SN EK312820

90157-KA2-000

Unavailable

BOLT, FLANGE (8X85) | Use from Frame SN EK312821

90145-GC4-730

Unavailable

BOLT, FLANGE (8X85) | Use from Frame SN EK312821 This part replaces 90157-965-000.

90145-GC4-730

Unavailable

NUT, U (14MM)

90305-GE8-003

$3.86

WASHER, PLAIN (10MM)

90401-437-000

$2.67

COLLAR, L. ENGINE DISTANCE (NOT AVAILABLE)

90742-965-000

Unavailable

COLLAR, R. ENGINE DISTANCE (NOT AVAILABLE)

90743-965-000

Unavailable

NUT, FLANGE (8MM)

94050-08000

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

WASHER, PLAIN (6MM)

94103-06000

$1.49

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.49

BOLT, FLANGE (8X12)

95701-08012-00

$1.49
