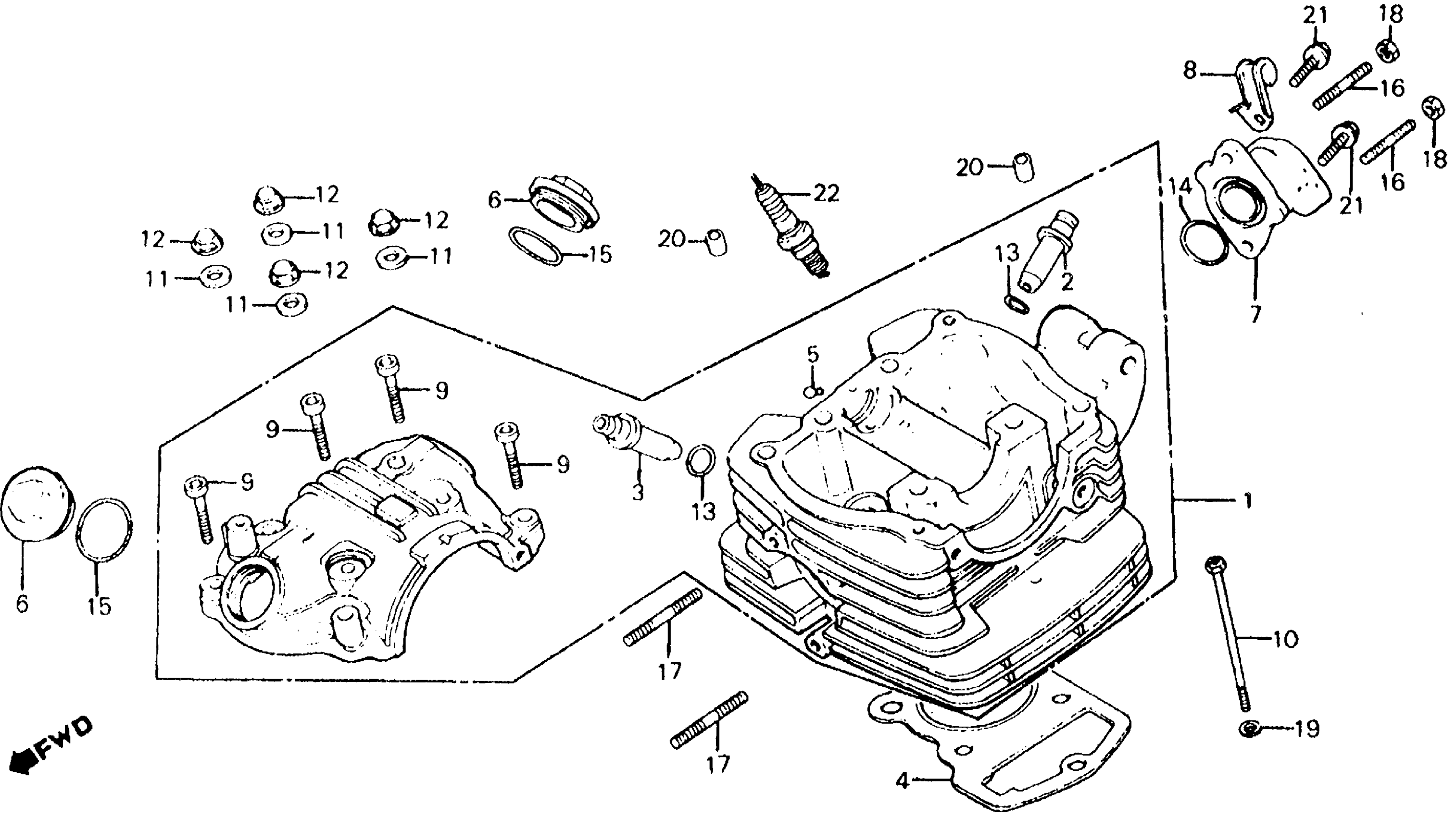

Honda ATC200XA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-EK300006 TO JH3TB052-EK331377 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY. This part replaces 12002-965-000.

12002-965-505

Unavailable

1

CYLINDER HEAD ASSY. This part replaces 12002-965-010.

12002-965-505

Unavailable

1

CYLINDER HEAD ASSY.

12002-965-505

Unavailable

2

GUIDE, VALVE

12021-365-300

$11.84

3

GUIDE, EX. VALVE (OS) This part replaces 12023-437-300.

12206-KCS-305

$26.84

3

GUIDE, EX. VALVE (OS)

12206-KCS-305

$26.84

4

GASKET, CYLINDER HEAD SET

12251-KT0-P00

$25.58

4

GASKET, CYLINDER HEAD SET This part replaces 12251-446-306.

12251-KT0-P00

$25.58

4

GASKET, CYLINDER HEAD SET This part replaces 12251-446-776.

12251-KT0-P00

$25.58

5

RUBBER, OIL SEAL

12271-383-000

$2.92

6

CAP, VALVE ADJ.

12361-383-000

$6.43

7

INSULATOR, CARBURETOR

16210-965-000

Unavailable

8

CLIP, SPARK PLUG CABLE (NOT AVAILABLE)

32921-965-000

Unavailable

9

BOLT, SOCKET (6MM)

90081-383-000

$5.66

10

BOLT (6X116)

90081-427-000

Unavailable

11

WASHER, SEALING (8MM)

90442-028-000

$1.77

12

NUT, CAP (8MM)

90443-107-000

$2.89

13

O-RING (10X1.6)

91301-200-000

$3.01

14

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.70

14

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.70

14

O-RING (33.5X3.0)

91304-HB3-003

$7.70

15

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

16

BOLT, STUD (6X16) This part replaces 92700-06028-0B.

92900-06016-0B

$1.49

17

BOLT, STUD (6X35) This part replaces 92700-06035-3E.

92900-06020-3E

$1.51

17

BOLT, STUD (6X35)

92900-06020-3E

$1.51

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

PIN A, DOWEL (8X14)

94301-08140

$2.25

21

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

21

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

22

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.62

22

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716-03.

98069-38719

$2.62

22

SPARK PLUG (DR8ES-L) (NGK)

98069-38719

$2.62

22

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.54

22

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-58737.

98069-38719

$2.62
