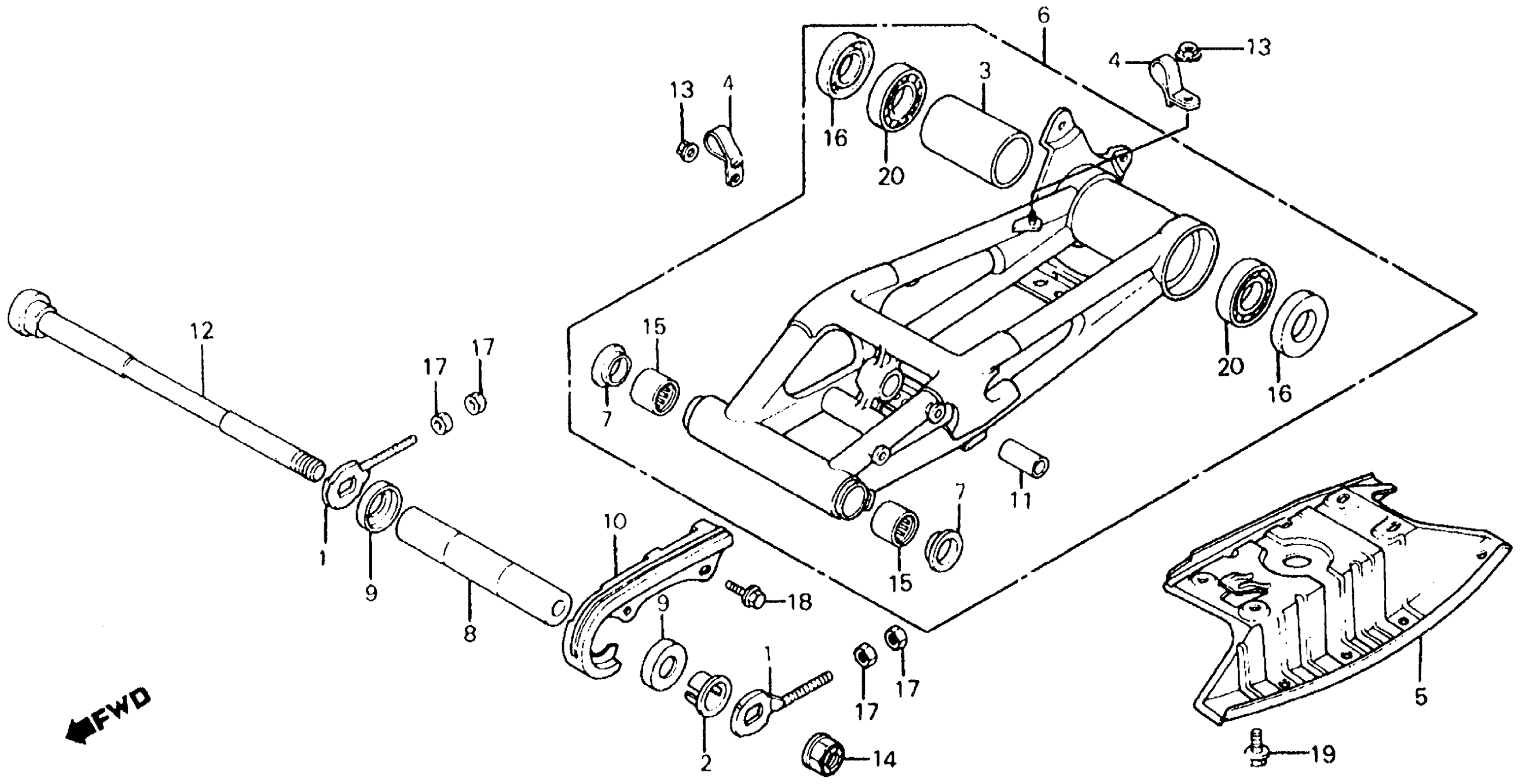

Honda ATC200XA (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-DC263800 TO JH3TB052-DC340134 SWINGARM + ENGINE PROTECTOR 83 Diagram

ADJUSTER, CHAIN

40543-965-000

Unavailable

COLLAR, SWINGARM SIDE

42340-965-010

$12.88

COLLAR, RR. AXLE (NOT AVAILABLE)

42621-961-000

Unavailable

CLAMP, BRAKE HOSE

43311-965-000

$7.61

PLATE, SKID *NH105* (MAT BLACK) (NOT AVAILABLE)

50355-965-000ZA

Unavailable

SWINGARM ASSY. *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

52000-965-000ZA

Unavailable

BUSH, PIVOT THRUST

52109-430-300

$16.01

COLLAR, SWINGARM CENTER

52141-KA2-000

Unavailable

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

SLIDER, CHAIN (NOT AVAILABLE) This part replaces 52170-965-000.

52170-965-010

Unavailable

SLIDER, CHAIN (NOT AVAILABLE)

52170-965-010

Unavailable

BUSH, SHOCK ABSORBER (LOWER) (NOT AVAILABLE) This part replaces 52451-965-000.

52451-HA5-000

Unavailable

BOLT, SWINGARM

90117-965-000

Unavailable

NUT, U (6MM)

90301-473-003

$4.07

NUT, U (14MM)

90305-GE8-003

$3.86

NUT, U (14MM) This part replaces 90305-MA1-003.

90305-GE8-003

$3.86

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-MA0-003

$33.10

DUST SEAL (42X62X7)

91252-958-013

$21.74

NUT, HEX. (8MM)

94002-08000-0S

$1.49

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.49

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

BEARING, RADIAL BALL (6007)

96150-60070-10

$25.42
