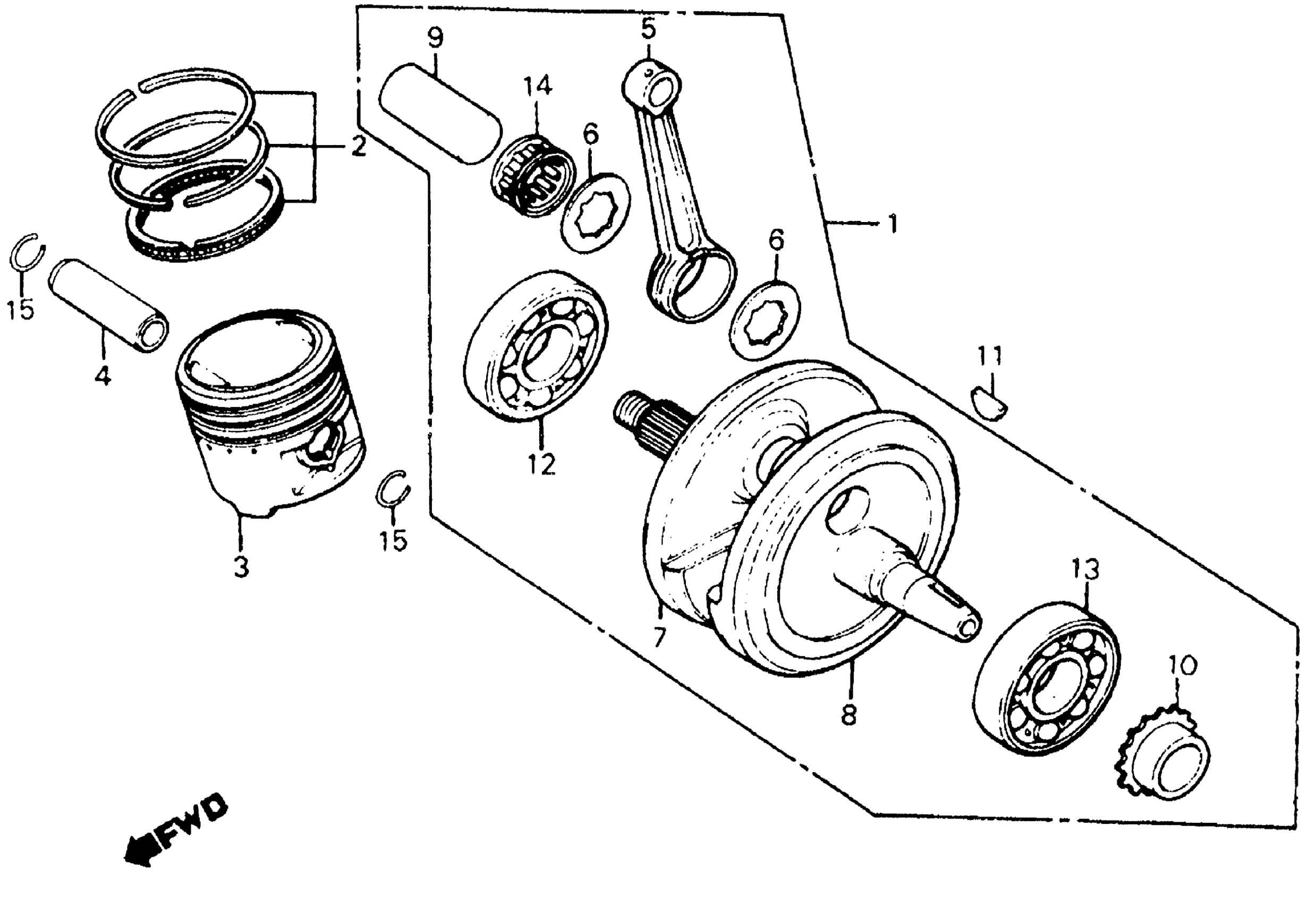

Honda ATC200XA (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-DC263800 TO JH3TB052-DC340134 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT | Use up to Engine SN 6005231

13000-KT0-308

Unavailable

1

CRANKSHAFT | Use up to Engine SN 6005231 This part replaces 13000-446-771.

13000-KT0-308

Unavailable

1

CRANKSHAFT | Use from Engine SN 6005232 This part replaces 13000-965-000.

13000-965-305

Unavailable

1

CRANKSHAFT | Use from Engine SN 6005232

13000-965-305

Unavailable

2

RING SET, PISTON (STD)

13011-958-671

Unavailable

2

RING SET, PISTON (STD) This part replaces 13011-958-672.

13011-958-671

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional).

13012-958-671

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13012-958-672.

13012-958-671

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13013-958-671

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13013-958-672.

13013-958-671

Unavailable

3

PISTON (STD)

13101-965-000

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-965-000

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13103-965-000

Unavailable

4

PIN, PISTON

13111-425-000

$21.65

5

ROD, CONNECTING | Use up to Engine SN 6005231

13201-446-770

$168.41

5

ROD, CONNECTING | Use from Engine SN 6005232

13202-427-300

Unavailable

6

PLATE, CONNECTING ROD SIDE | Use from Engine SN 6005232

13202-958-300

$12.02

7

CRANKSHAFT, R.

13311-446-305

Unavailable

7

CRANKSHAFT, R. This part replaces 13311-446-770.

13311-446-305

Unavailable

8

CRANKSHAFT, L.

13300-KF9-318

Unavailable

8

CRANKSHAFT, L. This part replaces 13321-446-771.

13300-KF9-318

Unavailable

9

PIN, CRANK | Use up to Engine SN 6005231

13381-HF1-670

Unavailable

9

PIN, CRANK | Use up to Engine SN 6005231 This part replaces 13381-440-300.

13381-HF1-670

Unavailable

9

PIN, CRANK | Use from Engine SN 6005232

13381-446-770

Unavailable

10

SPROCKET, TIMING (16T) This part replaces 14311-107-000.

14311-958-000

$41.06

10

SPROCKET, TIMING (16T)

14311-958-000

$41.06

11

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

11

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

11

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

12

BEARING, RADIAL BALL (63/28) This part replaces 91001-KY7-003.

91009-HC0-003

$31.43

12

BEARING, RADIAL BALL (63/28) This part replaces 91001-440-003.

91009-HC0-003

$31.43

12

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

13

BEARING, RADIAL BALL (28X72X18)

91001-KBR-003

$49.69

13

BEARING, RADIAL BALL (28X72X18) (NTN) This part replaces 91001-446-771.

91001-KBR-003

$49.69

14

BEARING A, CONNECTING ROD (RED) (TOYO) | Use from Engine SN 6005232

91002-440-003

Unavailable

14

BEARING A, CONNECTING ROD LARGE END (RED) | Use up to Engine SN 6005231

91002-446-771

$33.59

14

BEARING B, CONNECTING ROD (BLUE) (TOYO) | Use from Engine SN 6005232

91003-440-003

Unavailable

14

BEARING B, CONNECTING ROD LARGE END (BLUE) | Use up to Engine SN 6005231

91003-446-771

$33.59

14

BEARING C, CONNECTING ROD (WHITE) (TOYO) | Use from Engine SN 6005232

91004-440-003

Unavailable

14

BEARING C, CONNECTING ROD LARGE END (WHITE) | Use up to Engine SN 6005231

91004-446-771

$33.59

15

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
