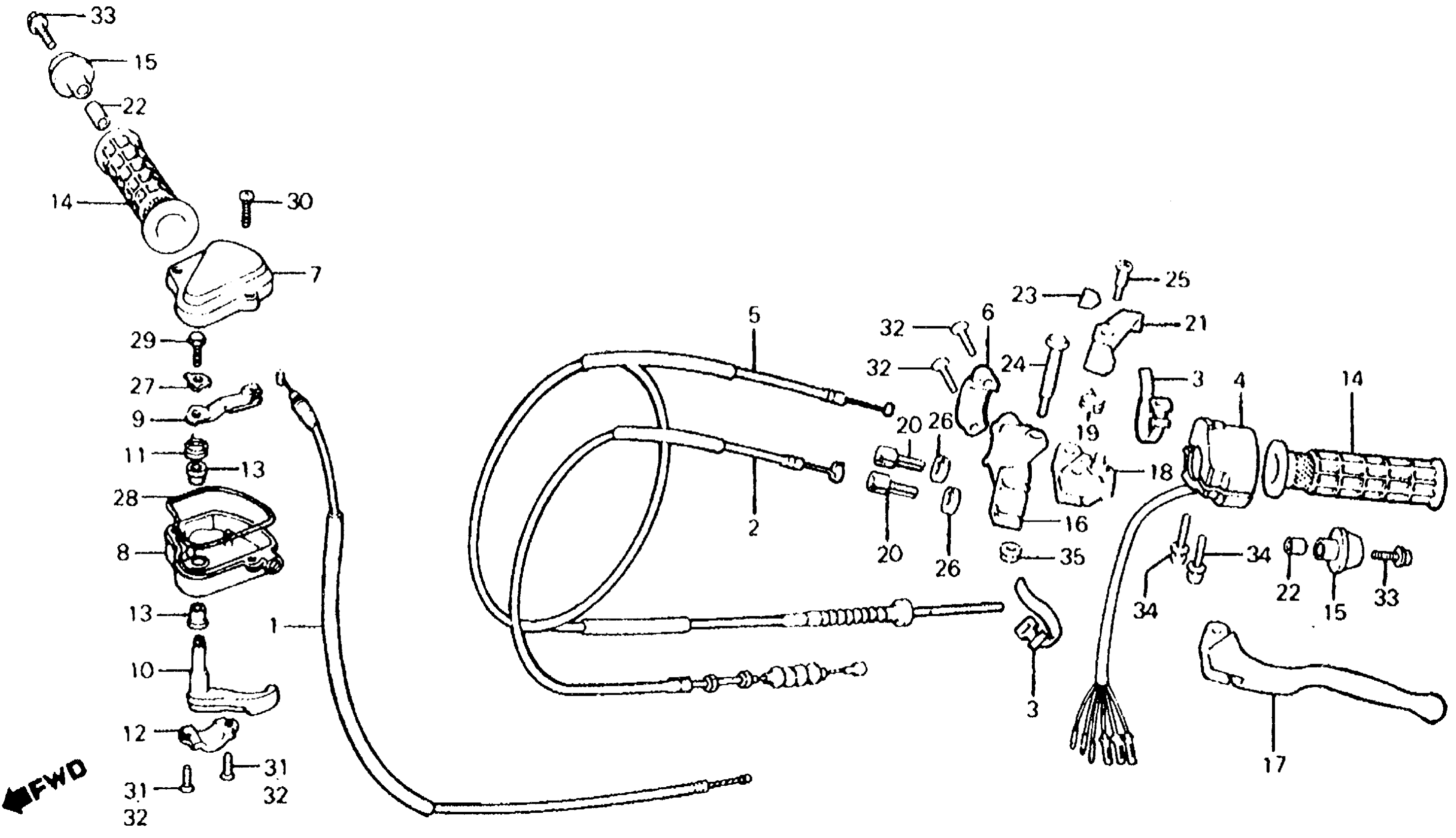

Honda ATC200XA (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-DC263800 TO JH3TB052-DC340134 CONTROL LEVERS + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-VM3-405

Unavailable

1

CABLE, THROTTLE This part replaces 17910-965-000.

17910-VM3-405

Unavailable

2

CABLE, CLUTCH This part replaces 22870-KB1-600.

22870-KF9-900

$35.45

2

CABLE, CLUTCH This part replaces 22870-KB1-970.

22870-KF9-900

$35.45

2

CABLE, CLUTCH This part replaces 22870-KB5-000.

22870-KF9-900

$35.45

2

CABLE, CLUTCH

22870-KF9-900

$35.45

2

CABLE, CLUTCH This part replaces 22870-965-000.

22870-KF9-900

$35.45

2

CABLE, CLUTCH This part replaces 22870-965-010.

22870-KF9-900

$35.45

3

BAND B1, CABLE

32161-404-000

$2.23

4

SWITCH ASSY., LIGHTING/ENGINE STOP (NOT AVAILABLE)

35200-965-003

Unavailable

5

CABLE, PARKING BRAKE

43455-HB5-000

Unavailable

5

CABLE, PARKING BRAKE This part replaces 43455-965-000.

43455-HB5-000

Unavailable

6

HOLDER, MASTER CYLINDER

45517-961-000

Unavailable

7

COVER, THROTTLE

53141-965-000

Unavailable

8

CASE, THROTTLE (NOT AVAILABLE) | Use up to Frame SN DC276299 This part replaces 53142-965-000.

53142-965-020

Unavailable

8

CASE, THROTTLE (NOT AVAILABLE) | Use up to Frame SN DC276299 This part replaces 53142-965-010.

53142-965-020

Unavailable

8

CASE, THROTTLE (NOT AVAILABLE) This part replaces 53142-965-010.

53142-965-020

Unavailable

8

CASE, THROTTLE (NOT AVAILABLE)

53142-965-020

Unavailable

9

ARM, THROTTLE (NOT AVAILABLE)

53144-965-000

Unavailable

10

CONTROL LEVER, THROTTLE (NOT AVAILABLE)

53145-965-003

Unavailable

11

SPRING, THROTTLE RETURN (NOT AVAILABLE)

53146-965-000

Unavailable

12

HOLDER, THROTTLE CASE

53147-965-000

Unavailable

13

BUSH, THROTTLE LEVER (NOT AVAILABLE)

53148-965-003

Unavailable

14

GRIP, HANDLE

53165-958-010

$13.38

15

GUARD, HANDLEBAR END

53167-958-680

$6.40

16

BRACKET, L. HANDLEBAR

53172-961-000

Unavailable

17

LEVER, L. HANDLEBAR

53178-965-000

Unavailable

18

ARM ASSY., PARKING BRAKE

53180-961-010

Unavailable

19

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

20

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

21

LEVER, PARKING BRAKE LOCK (NOT AVAILABLE)

53192-961-000

Unavailable

21

LEVER, PARKING BRAKE LOCK

53192-965-000

$21.58

22

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

23

MARK, PARKING BRAKE LEVER (NOT AVAILABLE)

87574-961-010

Unavailable

24

BOLT, HANDLE LEVER PIVOT

90114-961-000

Unavailable

25

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

26

NUT, FIXING

90321-315-670

$7.31

26

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

27

WASHER, LOCK (5MM) (NOT AVAILABLE)

90501-965-000

Unavailable

28

O-RING, THROTTLE CASE (NOT AVAILABLE)

91351-965-000

Unavailable

29

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

29

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

29

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

30

SCREW, PAN (4X10)

93500-04010-0G

$1.49

32

SCREW, OVAL (6X25)

93700-06025-0B

$1.49

33

SCREW-WASHER (6X25)

93891-06025-07

$1.49

34

SCREW-WASHER (5X20)

93892-05020-07

$1.49

35

NUT, FLANGE (6MM)

94050-06000

$1.49
