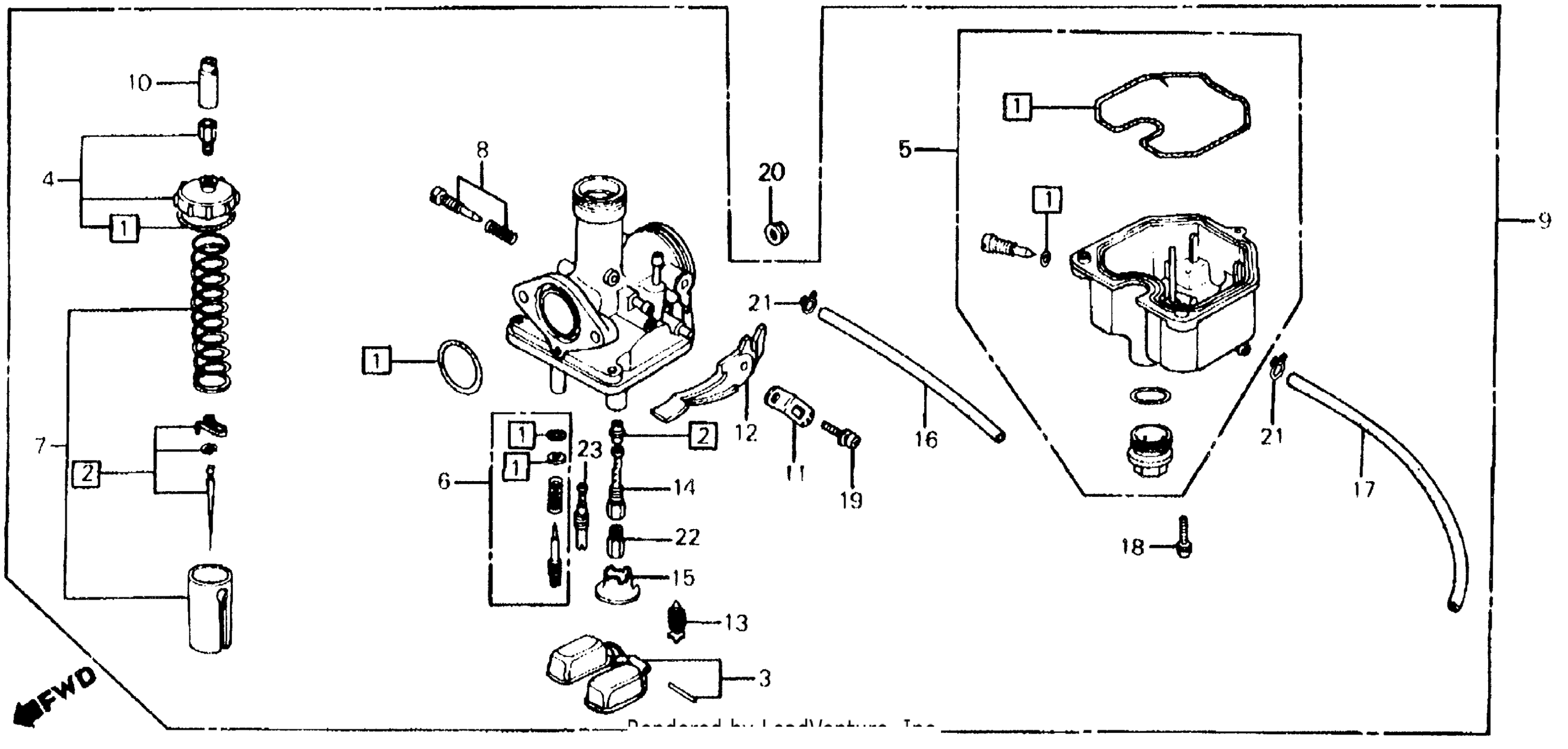

Honda ATC200XA (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-DC263800 TO JH3TB052-DC340134 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-HB5-305

$27.44

1

GASKET SET This part replaces 16010-324-680.

16010-HB5-305

$27.44

2

NEEDLE SET, JET

16012-965-004

Unavailable

3

FLOAT SET

16013-439-921

$76.36

4

TOP SET This part replaces 16014-440-911.

16014-440-912

Unavailable

4

TOP SET

16014-440-912

Unavailable

5

CHAMBER SET, FLOAT

16015-KA2-014

Unavailable

6

SCREW SET A

16016-402-004

$20.82

7

VALVE SET, THROTTLE This part replaces 16022-965-014.

16022-965-024

Unavailable

7

VALVE SET, THROTTLE

16022-965-024

Unavailable

8

SCREW SET B This part replaces 16028-402-004.

16028-KB1-D11

$5.98

9

CARBURETOR ASSY. This part replaces 16100-965-014.

16100-965-024

Unavailable

9

CARBURETOR ASSY.

16100-965-024

Unavailable

10

CAP, CABLE SEALING This part replaces 16118-439-921.

16148-KB1-921

$17.51

10

CAP, CABLE SEALING

16148-KB1-921

$17.51

11

PLATE, STAY

16119-440-004

$9.75

12

LEVER, CHOKE

16135-KA8-671

Unavailable

13

VALVE, FLOAT

16155-413-751

$32.50

14

HOLDER, NEEDLE JET

16165-965-004

Unavailable

15

HOLDER, JET

16168-382-014

$9.81

16

TUBE, FUEL This part replaces 16198-HB5-405.

16199-KG4-405

$9.49

16

TUBE, FUEL This part replaces 16199-355-701.

16199-KG4-405

$9.49

17

TUBE, RUBBER

16199-435-771

$11.39

17

TUBE, OVERFLOW This part replaces 16199-965-004.

16199-435-771

$11.39

18

SCREW-WASHER (4X16)

93892-04016-08

$1.49

19

SCREW-WASHER (5X12)

93892-05012-08

$1.49

20

NUT, FLANGE (6MM)

94050-06080

$1.49

21

CLIP, TUBE (B6.5)

95002-02650

$1.49

22

JET, MAIN (#110) This part replaces 99101-357-1100.

99113-GHB-1100

$9.32

22

JET, MAIN (#110)

99113-GHB-1100

$9.32

23

JET, SLOW (#40) This part replaces 99103-KA3-0400.

99103-GBF-0400

$13.18

23

JET, SLOW (#40) This part replaces 99103-440-0400.

99103-GBF-0400

$13.18
