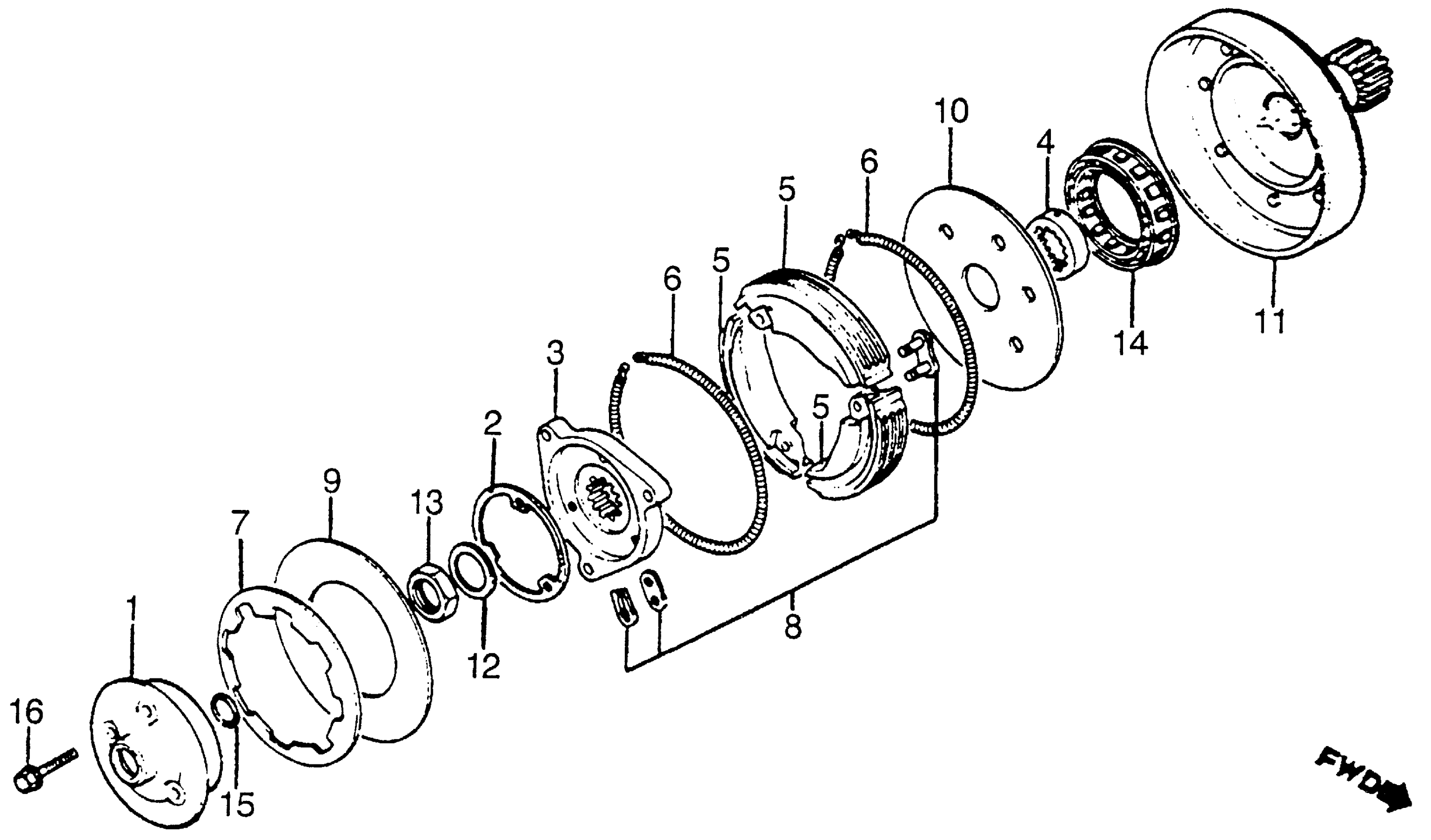

Honda ATC200SA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB053-GK500006 ONE-WAY CLUTCH Diagram

CAP, OIL FILTER

15436-958-000

Unavailable

GASKET, OIL FILTER

15459-KE4-770

Unavailable

GASKET, OIL FILTER This part replaces 15459-958-000.

15459-KE4-770

Unavailable

GASKET, OIL FILTER This part replaces 15459-958-306.

15459-KE4-770

Unavailable

HUB A, CLUTCH (NOT AVAILABLE)

22451-958-010

Unavailable

COLLAR, ONE-WAY

22453-958-000

Unavailable

SHOE, CLUTCH

22461-KE4-771

Unavailable

SHOE, CLUTCH This part replaces 22461-958-010.

22461-KE4-771

Unavailable

SPRING, CLUTCH

22462-958-000

Unavailable

SPRING, SIDE FRICTION

22463-958-000

Unavailable

MASTER LINK (DAIDO) This part replaces 22464-958-010.

40531-355-013

$4.15

PLATE A, CLUTCH

22470-958-010

Unavailable

PLATE B, CLUTCH

22480-958-010

Unavailable

DRUM, CLUTCH

22500-958-010

$142.21

WASHER, SPRING (22MM)

23926-PB6-010

$13.85

NUT, FLANGE (22MM) This part replaces 90201-PB6-000.

90201-PB6-020

$15.70

NUT, FLANGE (22MM) This part replaces 90201-PB6-010.

90201-PB6-020

$15.70

CLUTCH, ONE-WAY

91101-958-003

$152.01

O-RING (16X1.9)

91306-329-000

$2.92

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
