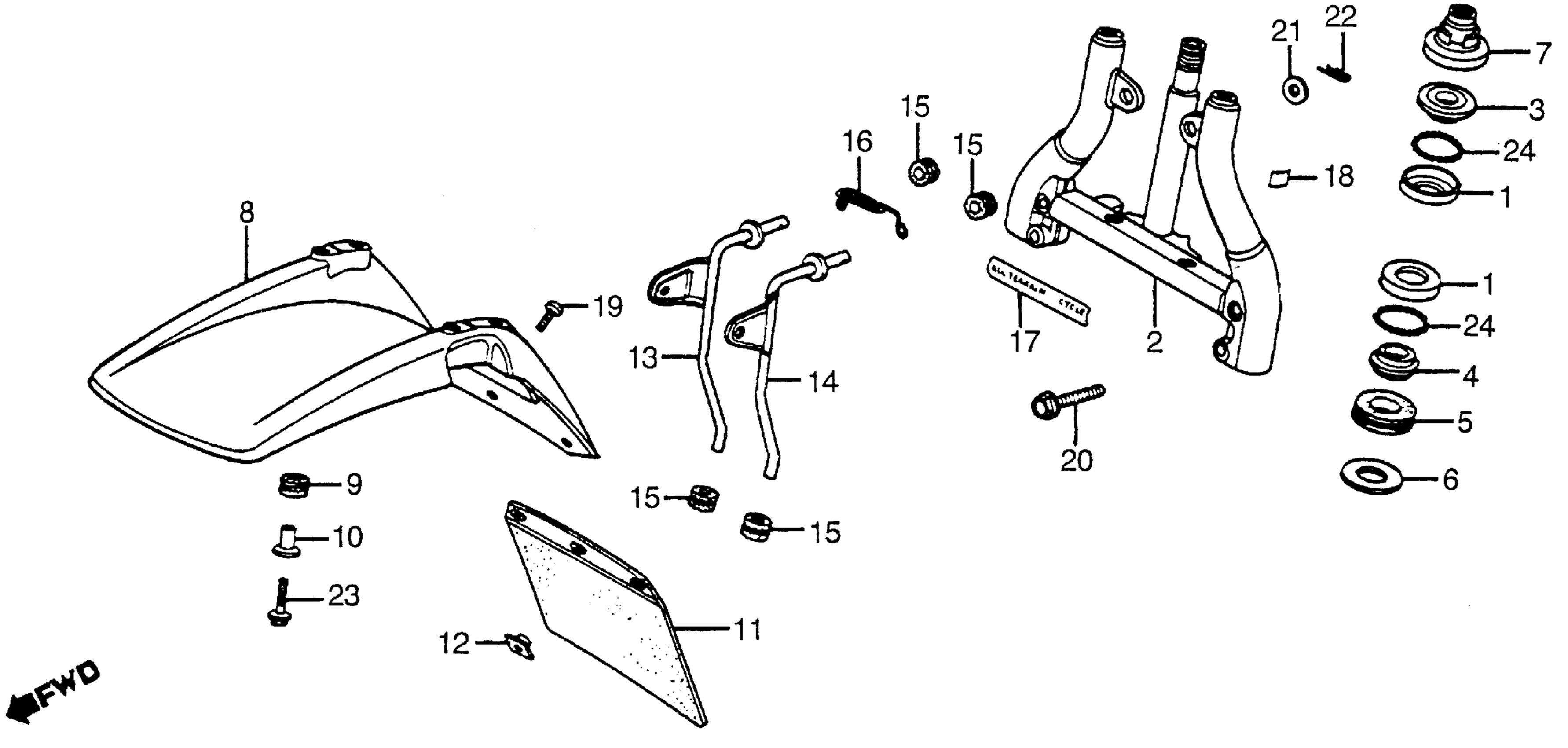

Honda ATC200SA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB053-GK500006 FRONT FORK I + FRONT FENDER Diagram

#

Description
Price

1

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

1

RACE, STEERING TOP BALL

50301-041-010

$12.39

2

STEM, STEERING | Use up to Frame SN GK502717 This part replaces 53200-VM4-770.

53200-VM4-771

Unavailable

2

STEM, STEERING | Use up to Frame SN GK502717

53200-VM4-771

Unavailable

2

STEM, STEERING

53200-VM4-771

Unavailable

3

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

3

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

4

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

4

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

5

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

6

WASHER, DUST SEAL

53215-GF8-000

$4.17

6

WASHER, DUST SEAL This part replaces 53215-918-000.

53215-GF8-000

$4.17

7

THREAD, STEERING HEAD TOP This part replaces 53220-051-690.

53220-098-670

$16.83

7

THREAD, STEERING HEAD TOP

53220-098-670

$16.83

7

THREAD, STEERING HEAD TOP This part replaces 53220-115-000.

53220-098-670

$16.83

7

THREAD, STEERING HEAD TOP This part replaces 53220-958-000.

53220-098-670

$16.83

8

FENDER, FR. (NOT AVAILABLE)

61100-958-671

Unavailable

9

RUBBER, FR. FENDER SETTING

61103-430-000

$3.67

10

COLLAR, FENDER SETTING

61104-444-000

$7.61

11

SPLASH GUARD, FR. (NOT AVAILABLE)

61111-VM4-000

Unavailable

12

NUT, SPECIAL (6X7)

61304-958-003

$3.24

13

BRACKET, R. HEADLIGHT CASE (NOT AVAILABLE) | Use up to Frame SN GK502717 This part replaces 61311-VM4-770.

61311-VM4-771

Unavailable

13

BRACKET, R. HEADLIGHT CASE (NOT AVAILABLE)

61311-VM4-771

Unavailable

14

BRACKET, L. HEADLIGHT CASE

61312-VM4-770

Unavailable

15

RUBBER, SETTING (22MM)

61315-358-000

$5.34

16

HOLDER, WIRE (NOT AVAILABLE) | Use up to Frame SN GK502717 This part replaces 61321-VM4-770.

61321-VM4-771

Unavailable

16

HOLDER, WIRE (NOT AVAILABLE)

61321-VM4-771

Unavailable

17

EMBLEM, FR. FORK (NOT AVAILABLE)

87102-958-010

Unavailable

18

LABEL, HELMET HOLDER

87511-323-670

$2.72

19

SCREW, TORUS (6X7)

90102-673-003

Unavailable

20

BOLT, FLANGE (10X35) This part replaces 90118-958-000.

90118-KG8-900

Unavailable

21

WASHER, PLAIN (8MM)

94101-08800

$1.93

22

PIN, LOCK (8MM)

94251-08000

$1.49

23

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

23

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

24

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
