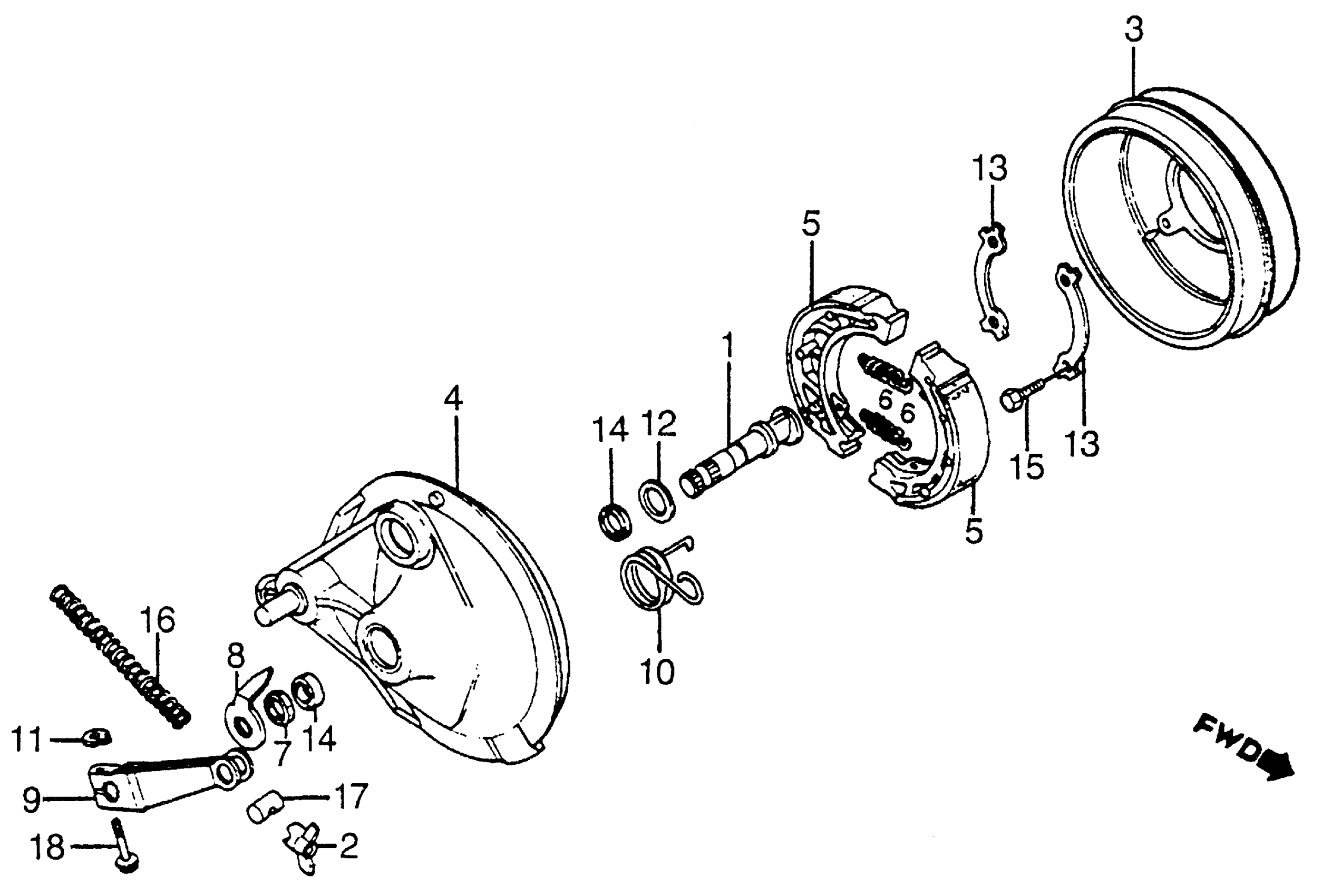

Honda ATC200SA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB053-GK500006 FRONT BRAKE PANEL Diagram

#

Description
Price

1

CAM, FR. BRAKE (NOT AVAILABLE)

45141-VM4-680

Unavailable

2

NUT, BRAKE ADJUST

43459-434-000

$15.27

3

DRUM, FR. BRAKE

44602-969-010

Unavailable

4

PANEL SUB, FR. BRAKE (NOT AVAILABLE)

45010-VM4-770

Unavailable

5

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

5

SHOE SET, BRAKE (JB) This part replaces 45120-GAG-003.

06450-178-932

$24.89

5

SHOE SET, BRAKE (JB) This part replaces 45120-096-651.

06450-178-932

$24.89

5

SHOE, BRAKE (ASK) (NOT AVAILABLE)

45120-968-681

Unavailable

6

SPRING, BRAKE SHOE

45133-028-000

$2.03

7

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

8

INDICATOR, FR. BRAKE

45145-VM4-680

Unavailable

9

ARM, FR. BRAKE (NOT AVAILABLE)

45410-VM4-680

Unavailable

10

SPRING, FR. BRAKE ARM RETURN (NOT AVAILABLE)

45435-VM4-770

Unavailable

11

NUT, FR. BRAKE ARM SETTING

45436-001-000

$1.80

12

WASHER (14.2MM)

90451-115-000

$2.92

13

WASHER, TONGUED (NOT AVAILABLE)

90514-VM3-000

Unavailable

14

OIL SEAL (14X20X4) (NIPPON OIL-SEAL)

91208-611-005

$4.35

15

BOLT, HEX. (8X20) This part replaces 92000-08020-0H.

92101-08020-0H

$1.77

15

BOLT, HEX. (8X20)

92101-08020-0H

$1.77

16

SPRING, RR. BRAKE ROD

43467-HA0-000

Unavailable

17

JOINT, BRAKE ARM

95015-32001

$1.49

18

BOLT, FLANGE (6X28) This part replaces 95700-06028-08.

95701-06028-08

$2.08

18

BOLT, FLANGE (6X28)

95701-06028-08

$2.08
