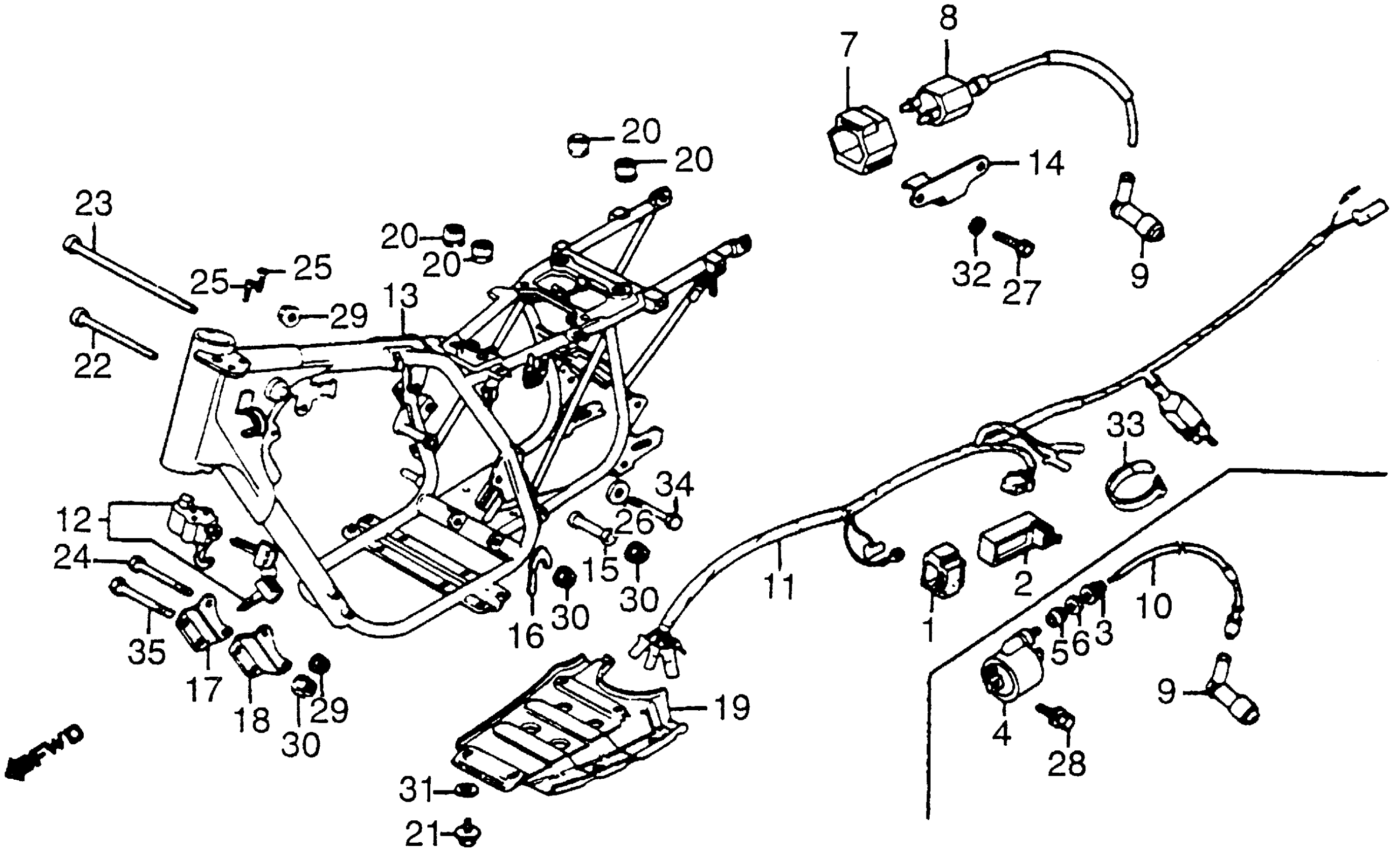

Honda ATC200SA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB053-GK500006 FRAME + WIRE HARNESS Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-GE8-000.

30401-GB4-770

$5.72

2

MODULE, IGNITION CONTROL (CDI)

30410-VM4-771

Unavailable

7

SUSPENSION, IGNITION COIL This part replaces 30506-KK4-000.

30506-VM6-000

Unavailable

7

SUSPENSION, IGNITION COIL

30506-VM6-000

Unavailable

8

COIL, IGNITION

30510-KJ2-405

$86.48

8

COIL, IGNITION This part replaces 30510-VM4-770.

30510-KJ2-405

$86.48

9

CAP ASSY. This part replaces 30700-GAR-000.

30700-GAR-003

$19.81

9

CAP ASSY. This part replaces 30700-KJ9-010.

30700-GAR-003

$19.81

9

CAP ASSY. This part replaces 30700-KJ9-020.

30700-GAR-003

$19.81

11

WIRE HARNESS (NOT AVAILABLE)

32100-VM4-770

Unavailable

12

LOCK SET

35010-VM4-770

Unavailable

13

FRAME

50100-VM4-770

Unavailable

14

STAY, IGNITION COIL (NOT AVAILABLE)

50124-VM3-680

Unavailable

15

COLLAR, ENGINE MOUNTING (NOT AVAILABLE)

50250-958-000

Unavailable

16

WASHER, ENGINE HANGER (LOWER) (NOT AVAILABLE)

50253-958-680

Unavailable

17

HANGER, R. ENGINE (NOT AVAILABLE)

50351-958-010

Unavailable

18

HANGER, L. ENGINE (NOT AVAILABLE)

50352-958-010

Unavailable

19

PLATE, ENGINE PROTECTOR

50355-VM4-000

Unavailable

20

RUBBER, SEAT SETTING

77207-HA0-000

$7.14

20

RUBBER, SEAT SETTING This part replaces 77207-958-670.

77207-HA0-000

$7.14

21

BOLT, ENGINE PROTECTOR PLATE

90118-VM4-000

Unavailable

22

BOLT, HEX. (10X115)

90125-958-000

Unavailable

23

BOLT, HEX. (10X240)

90135-958-000

$12.48

24

BOLT, HEX. (8X85)

90157-437-000

Unavailable

25

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

26

WASHER, PLAIN (8.5X22X2.3)

90509-642-000

$6.84

27

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

27

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

27

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

29

NUT, FLANGE (8MM)

94050-08000

$1.49

30

NUT, FLANGE (10MM)

94050-10000

$1.59

31

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

31

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

31

WASHER, PLAIN (6MM)

94101-06800

$1.49

32

WASHER, SPRING (5MM)

94111-05000

$1.49

33

BAND B1, CABLE

32161-404-000

$2.23

33

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

34

BOLT, HEX. (8X60) This part replaces 95300-08060-00.

95301-08060-00

$1.49

35

BOLT, FLANGE (10X80) This part replaces 95800-10080-00.

95801-10080-00

$2.92

35

BOLT, FLANGE (10X80)

95801-10080-00

$2.92
