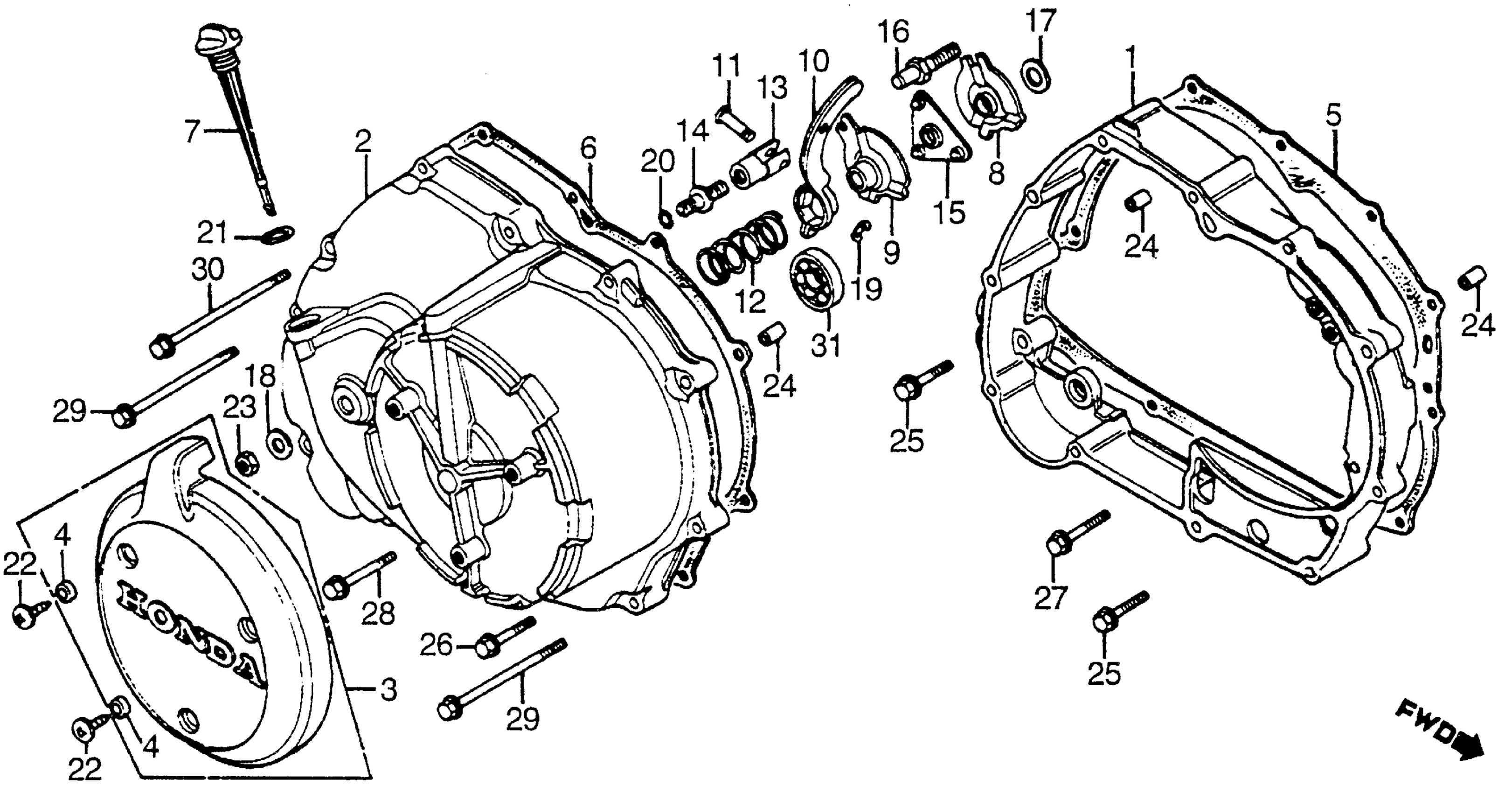

Honda ATC200SA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TB053-FK400004 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

SPACER, R. COVER

11320-958-000

Unavailable

2

COVER, R. CRANKCASE

11330-958-000

Unavailable

3

PROTECTOR

11335-958-000

Unavailable

4

COLLAR (NOT AVAILABLE)

11336-958-000

Unavailable

5

GASKET, R. COVER This part replaces 11393-KT0-710.

11393-KVC-902

$15.56

5

GASKET, R. COVER This part replaces 11393-437-010.

11393-KVC-902

$15.56

5

GASKET, R. COVER This part replaces 11393-437-306.

11393-KVC-902

$15.56

6

GASKET, R. COVER

11394-KE4-770

Unavailable

6

GASKET, R. COVER This part replaces 11394-958-000.

11394-KE4-770

Unavailable

7

DIPSTICK, OIL This part replaces 15650-350-000.

15650-VM5-000

Unavailable

7

DIPSTICK, OIL

15650-VM5-000

Unavailable

8

PLATE A, LIFTER CAM

22821-958-000

Unavailable

9

PLATE B, LIFTER CAM

22823-958-000

Unavailable

10

LEVER, CLUTCH (NOT AVAILABLE)

22831-958-010

Unavailable

11

SHAFT, CLUTCH LEVER

22832-958-000

Unavailable

12

SPRING, CLUTCH LEVER (NOT AVAILABLE)

22833-958-000

Unavailable

13

NUT, CLUTCH ADJ.

22841-958-020

Unavailable

14

BOLT, CLUTCH ADJUSTING

22846-958-010

Unavailable

15

RETAINER, BALL

22860-958-000

Unavailable

16

BOLT, LIFTER STOPPER (NOT AVAILABLE)

90201-958-010

Unavailable

17

WASHER, THRUST (12MM)

90433-958-000

Unavailable

18

WASHER, SEAL (8MM)

90441-286-000

$1.90

19

E-RING (6MM) (NOT AVAILABLE)

90605-355-000

Unavailable

20

O-RING (8X1.7) (ARAI) This part replaces 91303-001-000.

91306-HB3-003

$1.81

20

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

21

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

21

O-RING (18X3)

91307-035-000

$2.92

22

SCREW, TAPPING (6X16)

93903-36210

$1.49

23

NUT, HEX. (8MM)

94031-08000

$1.49

24

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

25

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

25

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

26

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

26

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

27

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

27

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

28

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

28

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

29

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

29

BOLT, FLANGE (6X65)

96001-06065-00

$2.34

30

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.95

30

BOLT, FLANGE (6X70)

96001-06070-00

$1.95

31

BEARING, RADIAL BALL (6203)

96100-62033-00

$10.00
