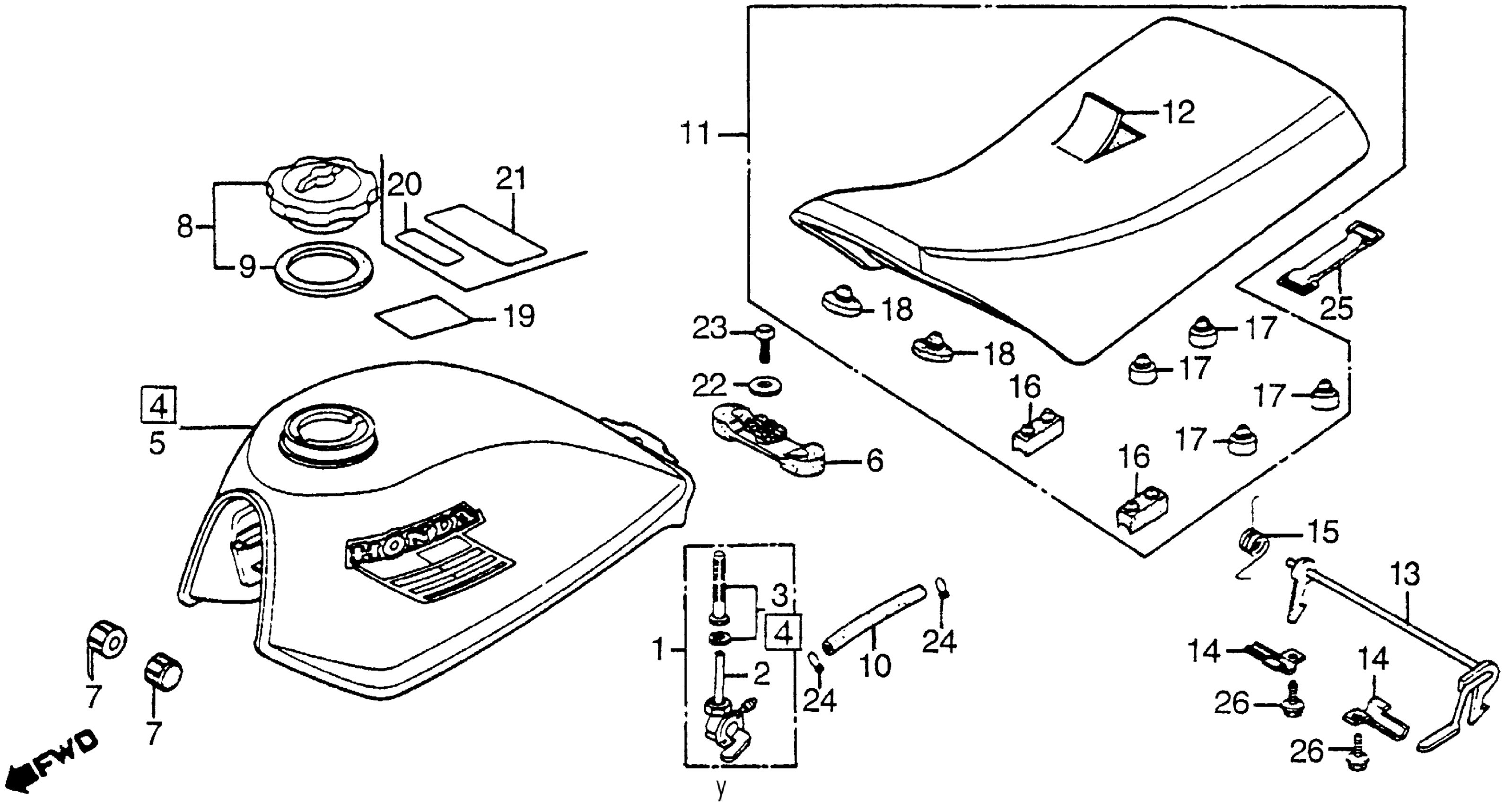

Honda ATC200SA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB053-EK300001 TO JH3TB053-EK315150 FUEL TANK SEAT Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-149-025

$74.04

2

BODY SET, PETCOCK (HONDA KIKAKI)

16951-149-025

Unavailable

3

SCREEN SET, FUEL STRAINER

16952-GB2-721

Unavailable

3

SCREEN SET, FUEL STRAINER This part replaces 16952-124-830.

16952-GB2-721

Unavailable

4

TANK SET, FUEL *R109* (PASSION RED) (NOT AVAILABLE) This part replaces 175A1-VM4-000ZA.

175A1-VM4-680ZA

Unavailable

4

TANK SET, FUEL *R109* (PASSION RED) (NOT AVAILABLE)

175A1-VM4-680ZA

Unavailable

6

RUBBER, RR. TANK

17509-437-000

Unavailable

7

RUBBER, FR. TANK

17611-437-000

$6.63

8

FUEL FILL CAP (TOYOSHA) This part replaces 17620-VM5-000.

17620-HC3-505

Unavailable

8

FUEL FILL CAP (TOYOSHA) This part replaces 17620-968-003.

17620-HC3-505

Unavailable

8

FUEL FILL CAP (TOYOSHA) This part replaces 17620-HC3-771.

17620-HC3-505

Unavailable

8

FUEL FILL CAP (TOYOSHA) This part replaces 17620-VM6-013.

17620-HC3-505

Unavailable

9

GASKET This part replaces 17631-958-680.

17631-899-010

$6.32

9

GASKET This part replaces 17631-VM6-300.

17631-899-010

$6.32

9

GASKET This part replaces 17631-899-000.

17631-899-010

$6.32

10

TUBE, FUEL (4.5X120)

17681-GE2-670

Unavailable

10

TUBE, FUEL (4.5X120) This part replaces 17681-401-680.

17681-GE2-670

Unavailable

11

SEAT (NOT AVAILABLE)

77100-VM4-003

Unavailable

13

LEVER, SEAT LOCK (NOT AVAILABLE)

77105-VM4-000

Unavailable

14

BRACKET, LOCK LEVER

77106-958-000

Unavailable

15

SPRING, SEAT LOCK

77107-958-000

$4.30

16

RUBBER, SEAT SETTING

77204-292-000

$9.11

17

RUBBER, SEAT SETTING

77206-426-000

$5.05

18

RUBBER, SEAT STOPPER

77211-MB0-000

$6.72

20

LABEL, USE CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87504-130-720ZA

Unavailable

21

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-181-760.

87560-181-760ZE

$3.95

21

LABEL, DRIVE CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87560-181-760ZD

Unavailable

21

MARK, DRIVE CAUTION (TYPEB)

87560-181-760ZE

$3.95

22

WASHER, EX. DUCT (NOT AVAILABLE)

90504-567-000

Unavailable

23

BOLT, HEX. (6X12) This part replaces 92000-06012-0H.

92101-06012-0H

$1.49

23

BOLT, HEX. (6X12) This part replaces 92000-06012-08.

92101-06012-0H

$1.49

23

BOLT, HEX. (6X20)

92101-06012-0H

$1.49

24

CLIP, TUBE (B8)

95002-02080

$1.80

25

BAND A, BATTERY This part replaces 95012-11000.

95012-11001

$2.92

25

BAND A, BATTERY

95012-11001

$2.92

26

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

26

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
