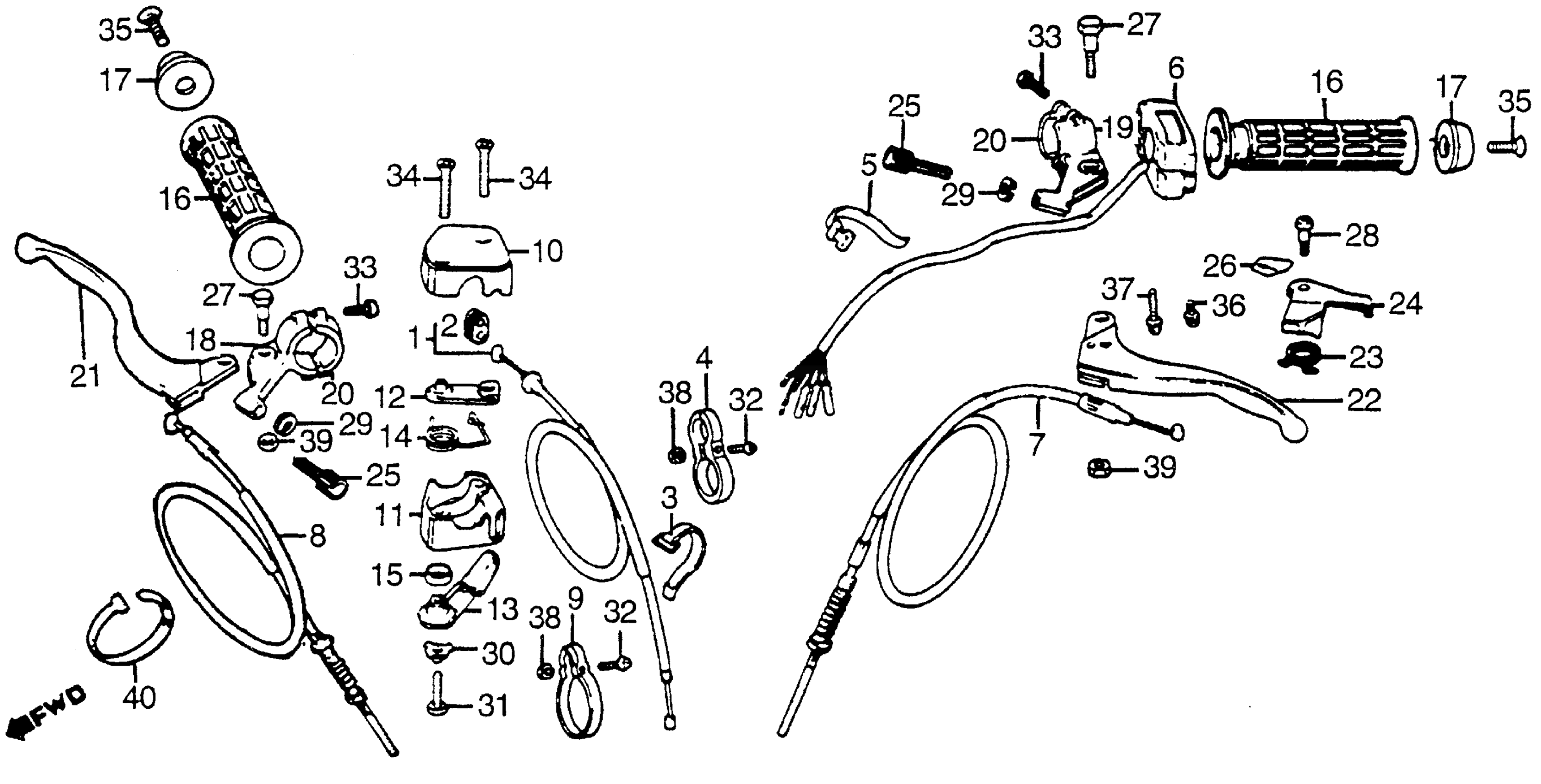

Honda ATC200SA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB053-EK300001 TO JH3TB053-EK315150 CONTROL LEVERS + SWITCHES + CABLES 84 Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-VM3-000

Unavailable

2

GROMMET, THROTTLE CASE (NOT AVAILABLE)

17913-958-300

Unavailable

3

BAND, THROTTLE CABLE (NOT AVAILABLE)

17914-958-010

Unavailable

4

GUIDE, THROTTLE CABLE (NOT AVAILABLE)

17916-958-000

Unavailable

5

BAND B1, CABLE

32161-404-000

$2.23

6

SWITCH ASSY., LIGHTING/ENGINE STOP

35200-958-013

Unavailable

7

CABLE, HAND BRAKE This part replaces 43460-VM4-000.

43460-VM4-770

Unavailable

7

CABLE, HAND BRAKE

43460-VM4-770

Unavailable

8

CABLE, FR. BRAKE This part replaces 45450-VM3-000.

45450-958-681

Unavailable

8

CABLE, FR. BRAKE This part replaces 45450-VM4-770.

45450-958-681

Unavailable

8

CABLE, FR. BRAKE

45450-958-681

Unavailable

8

CABLE, FR. BRAKE This part replaces 45450-969-000.

45450-958-681

Unavailable

9

GUIDE, BRAKE CABLE (NOT AVAILABLE) This part replaces 45467-958-010.

45467-958-020

Unavailable

10

COVER, THROTTLE (NOT AVAILABLE)

53141-958-000

Unavailable

11

CASE, THROTTLE

53142-958-000

Unavailable

12

ARM, THROTTLE (NOT AVAILABLE)

53144-958-000

$5.87

13

CONTROL LEVER, THROTTLE

53145-957-000

Unavailable

14

SPRING, THROTTLE CONTROL LEVER

53146-943-000

Unavailable

15

BUSH, THROTTLE LEVER (NOT AVAILABLE)

53148-957-003

Unavailable

16

GRIP, HANDLE

53165-958-010

$13.38

17

GUARD, HANDLEBAR END

53167-427-770

Unavailable

17

GUARD, HANDLEBAR END This part replaces 53167-437-670.

53167-427-770

Unavailable

18

BRACKET, R. CONTROL LEVER

53171-968-000

Unavailable

19

BRACKET, BRAKE CONTROL LEVER

53172-968-000

Unavailable

20

HOLDER, LEVER BRACKET

53173-958-000

$10.59

21

LEVER, R. HANDLEBAR

53175-958-010

Unavailable

22

LEVER, L. HANDLEBAR This part replaces 53178-968-000.

53178-968-405

Unavailable

22

LEVER, L. HANDLEBAR

53178-968-405

Unavailable

23

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

24

CONTROL LEVER, PARKING BRAKE LOCK (NOT AVAILABLE)

53192-968-000

Unavailable

25

BOLT, WIRE ADJUSTING

53193-968-000

$14.08

26

LABEL, PARKING BRAKE CONTROL LEVER (NOT AVAILABLE)

87574-968-000

Unavailable

27

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

28

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

29

NUT, FIXING

90321-315-670

$7.31

29

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

30

WASHER, LOCK (5MM) (NOT AVAILABLE)

90501-957-000

Unavailable

31

BOLT, HEX. (5X22) This part replaces 92000-05022-0A.

92101-05022-0A

$1.49

31

BOLT, HEX. (5X22)

92101-05022-0A

$1.49

32

SCREW, PAN (4X20)

93500-04020-0A

$1.49

32

SCREW, PAN (4X20) This part replaces 93500-04020-1A.

93500-04020-0A

$1.49

33

SCREW, PAN (5X18)

93500-05018-0A

$1.49

34

SCREW, OVAL (5X22)

93700-05022-0B

$1.49

35

SCREW, OVAL (6X28)

93700-06028-0G

Unavailable

36

SCREW-WASHER (5X20)

93892-05020-07

$1.49

37

SCREW-WASHER (5X40)

93892-05040-07

Unavailable

38

NUT, HEX. (4MM)

94001-04000-0S

$1.49

39

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

39

NUT, HEX. (6MM)

94001-06200-0S

$1.49

40

BAND A2, CABLE

95014-61200

$2.33
