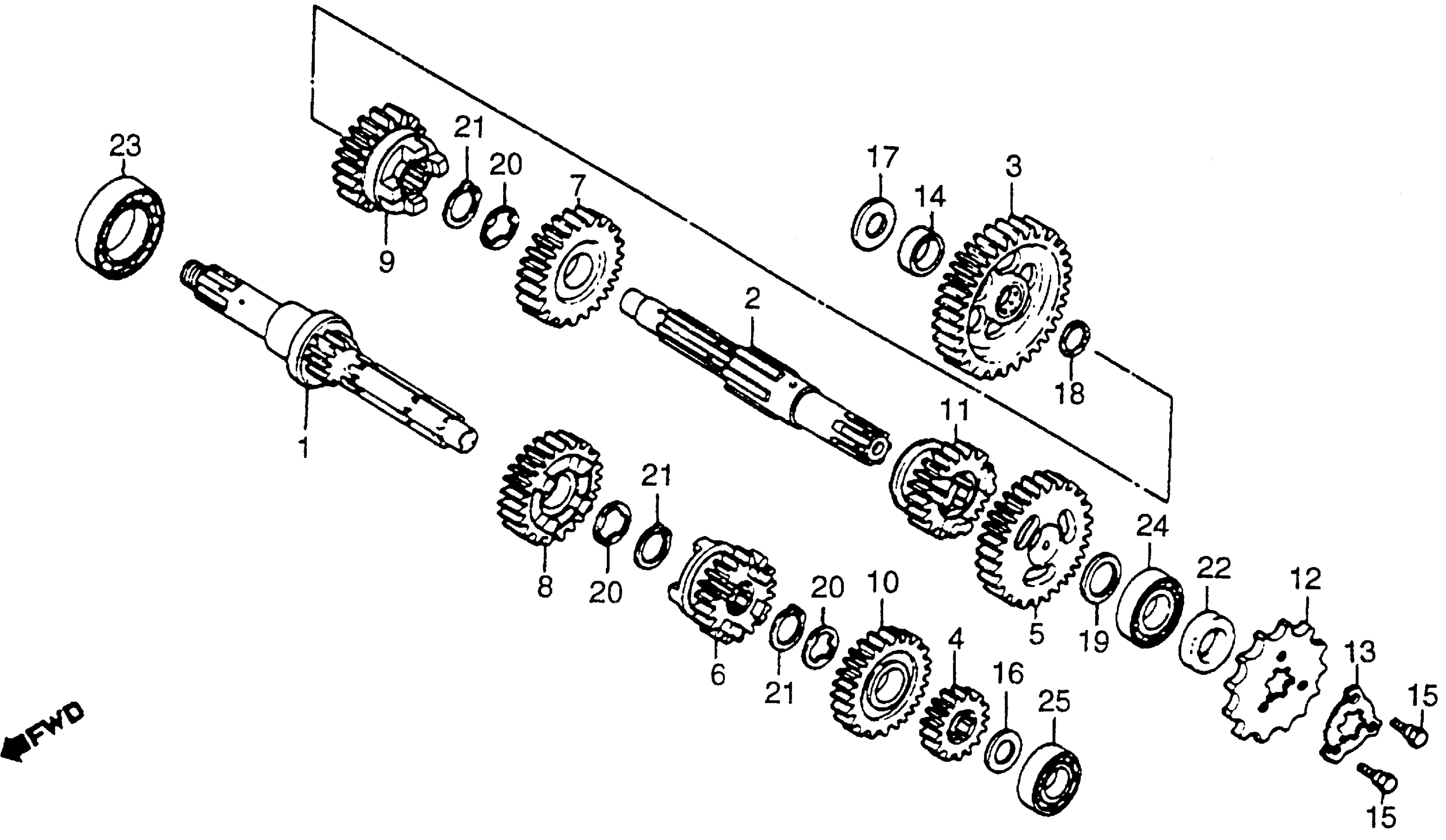

Honda ATC200MA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TB054-FK400001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T)

23210-958-000

$139.61

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) This part replaces 23221-VM3-000.

23221-427-960

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T)

23421-958-000

Unavailable

4

GEAR, MAINSHAFT SECOND (18T)

23441-427-000

Unavailable

5

GEAR, COUNTERSHAFT SECOND (31T)

23451-427-010

Unavailable

6

GEAR, MAINSHAFT THIRD (22T)

23461-427-000

Unavailable

7

GEAR, COUNTERSHAFT THIRD (28T)

23471-331-671

Unavailable

8

GEAR, MAINSHAFT FOURTH (25T)

23481-427-000

$70.13

9

GEAR, COUNTERSHAFT FOURTH (25T)

23491-427-000

Unavailable

10

GEAR, MAINSHAFT FIFTH (27T)

23501-427-010

Unavailable

11

GEAR, COUNTERSHAFT FIFTH (22T)

23511-958-010

Unavailable

12

SPROCKET, DRIVE (11T)

23801-958-000

Unavailable

13

PLATE, FIXING

23802-958-000

Unavailable

14

COLLAR (16.5MM)

23913-958-010

Unavailable

15

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

16

WASHER, THRUST (15MM)

90451-107-000

$1.49

17

WASHER, THRUST (15MM)

90451-365-000

$3.08

18

WASHER, THRUST (16.7MM) (NOT AVAILABLE)

90453-427-000

Unavailable

19

WASHER, THRUST (20MM)

90454-107-000

$1.80

20

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

21

SET-RING (20MM)

90605-200-000

$2.92

22

OIL SEAL (20X40X7) (NOT AVAILABLE)

91201-VM3-003

Unavailable

23

BEARING, RADIAL BALL (6006)

96100-60060-00

$13.13

24

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

25

BEARING, RADIAL BALL (6202Z)

96120-62020-00

$11.02
