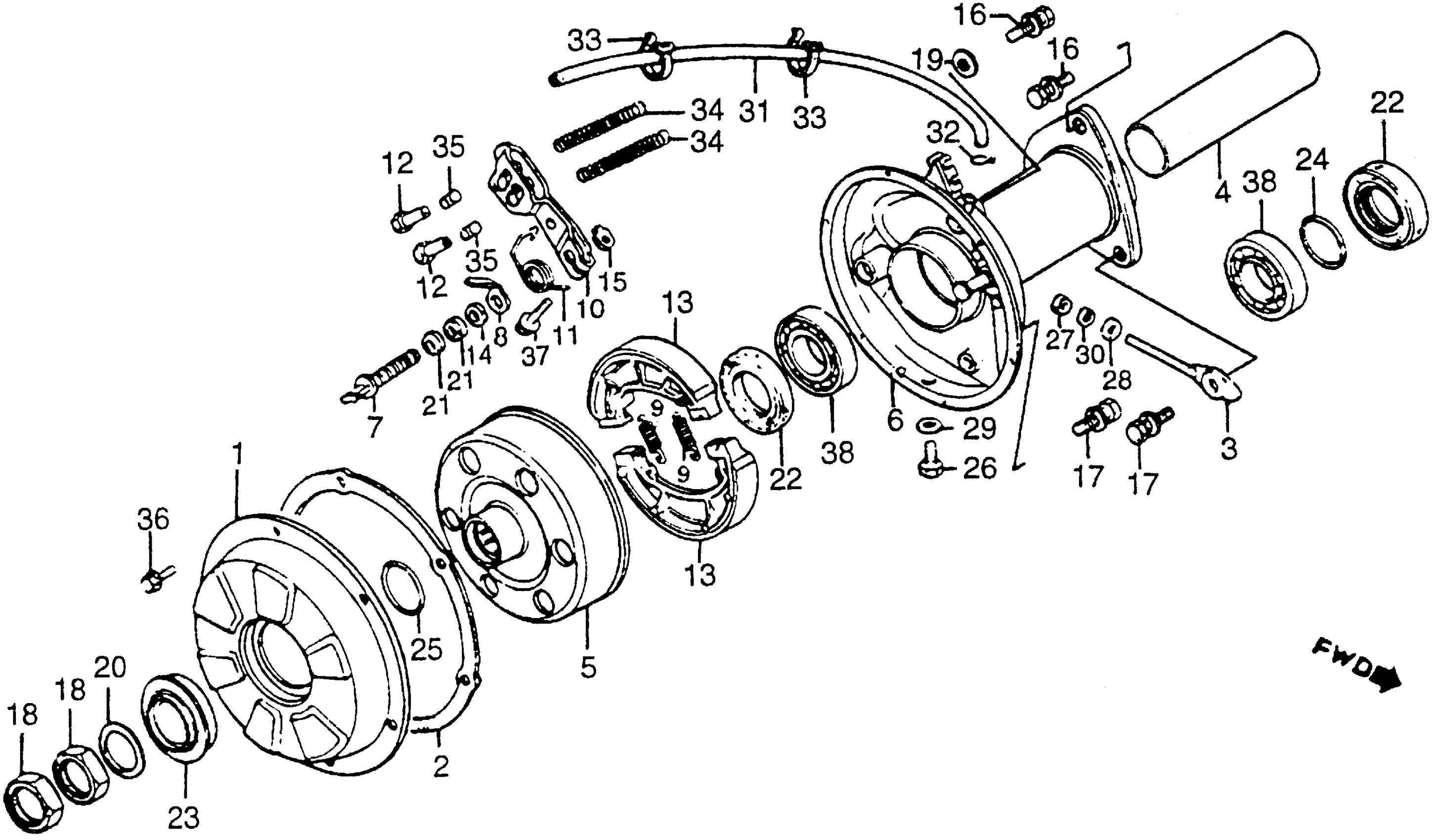

Honda ATC200MA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TB054-FK400001 REAR BRAKE DRUM Diagram

#

Description
Price

1

COVER, BRAKE DRUM (NOT AVAILABLE)

40532-968-680

Unavailable

2

GASKET, BRAKE COVER

40539-968-000

Unavailable

3

ADJUSTER, CHAIN

40543-HB3-000

$10.56

3

ADJUSTER, CHAIN This part replaces 40543-VM6-680.

40543-HB3-000

$10.56

3

ADJUSTER, CHAIN This part replaces 40543-958-010.

40543-HB3-000

$10.56

4

COLLAR, RR. AXLE CENTER (NOT AVAILABLE)

42621-958-000

Unavailable

5

DRUM, RR. BRAKE (NOT AVAILABLE)

42622-VM4-680

Unavailable

6

HOLDER, BEARING & BRAKE (NOT AVAILABLE)

43100-VM3-680

Unavailable

7

CAM, RR. BRAKE (NOT AVAILABLE)

43141-968-680

Unavailable

8

INDICATOR, BRAKE

43145-958-000

Unavailable

8

INDICATOR, BRAKE This part replaces 43145-968-680.

43145-958-000

Unavailable

9

SPRING, BRAKE SHOE

43151-329-000

$2.75

10

ARM, RR. BRAKE (NOT AVAILABLE)

43410-VM3-680

Unavailable

11

SPRING, RR. BRAKE ARM RETURN

43413-968-000

Unavailable

12

NUT, BRAKE ADJUSTING

43459-HM5-A10

$9.78

12

NUT, BRAKE ADJUSTING This part replaces 43459-VM4-000.

43459-HM5-A10

$9.78

13

SHOE, BRAKE (ASK) (NOT AVAILABLE)

45120-968-681

Unavailable

14

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

15

NUT, FR. BRAKE ARM SETTING

45436-001-000

$1.80

16

BOLT-WASHER (12X25)

90116-958-003

Unavailable

17

BOLT-WASHER (12X28)

90117-958-003

Unavailable

18

NUT, RR. AXLE

90307-968-000

Unavailable

19

WASHER, ROTOR SETTING (NOT AVAILABLE)

90427-358-000

Unavailable

20

WASHER, TAPER

90481-HC4-000

$7.70

20

WASHER, TAPER This part replaces 90481-958-000.

90481-HC4-000

$7.70

21

DUST SEAL (14X20X4) (NOK)

91208-611-005

$4.35

22

DUST SEAL (42X62X7)

91252-958-013

$21.74

22

DUST SEAL (42X62X7) This part replaces 91252-958-014.

91252-958-013

$21.74

23

DUST SEAL (45X65X15)

91253-968-005

$29.38

24

O-RING (31.2X1.9) (ARAI)

91307-PA9-003

$3.69

24

O-RING (31.2X1.9) (ARAI) This part replaces 91307-PA9-004.

91307-PA9-003

$3.69

25

O-RING (31.7X2.4)

91306-MA6-005

$3.44

25

O-RING (31.7X2.4) This part replaces 91307-958-003.

91306-MA6-005

$3.44

26

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

27

NUT, HEX. (8MM)

94001-08000-0S

$1.49

27

NUT, HEX. (8MM) This part replaces 94001-08080-0S.

94001-08000-0S

$1.49

27

NUT, HEX. (8MM) This part replaces 94001-08080-05.

94001-08000-0S

$1.49

27

NUT, HEX. (8MM) This part replaces 94001-08200-0S.

94001-08000-0S

$1.49

28

WASHER, PLAIN (8MM)

94101-08800

$1.93

29

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

30

WASHER, SPRING (8MM)

94111-08800

$1.49

31

BULK HOSE, FUEL (3.5X3000) (3.5X690)

95001-35003-60M

$20.85

32

CLIP, TUBE (B7)

95002-02070

$1.80

33

BAND B1, WIRE

32161-404-000

$2.23

33

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

34

SPRING A, BRAKE ROD

95014-73100

$1.49

35

JOINT B, BRAKE ARM

95015-32001

$1.49

36

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

36

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

37

BOLT, FLANGE (6X28) This part replaces 95700-06028-08.

95701-06028-08

$2.08

37

BOLT, FLANGE (6X28)

95701-06028-08

$2.08

38

BEARING, RADIAL BALL (6007)

96150-60070-10

$25.42
