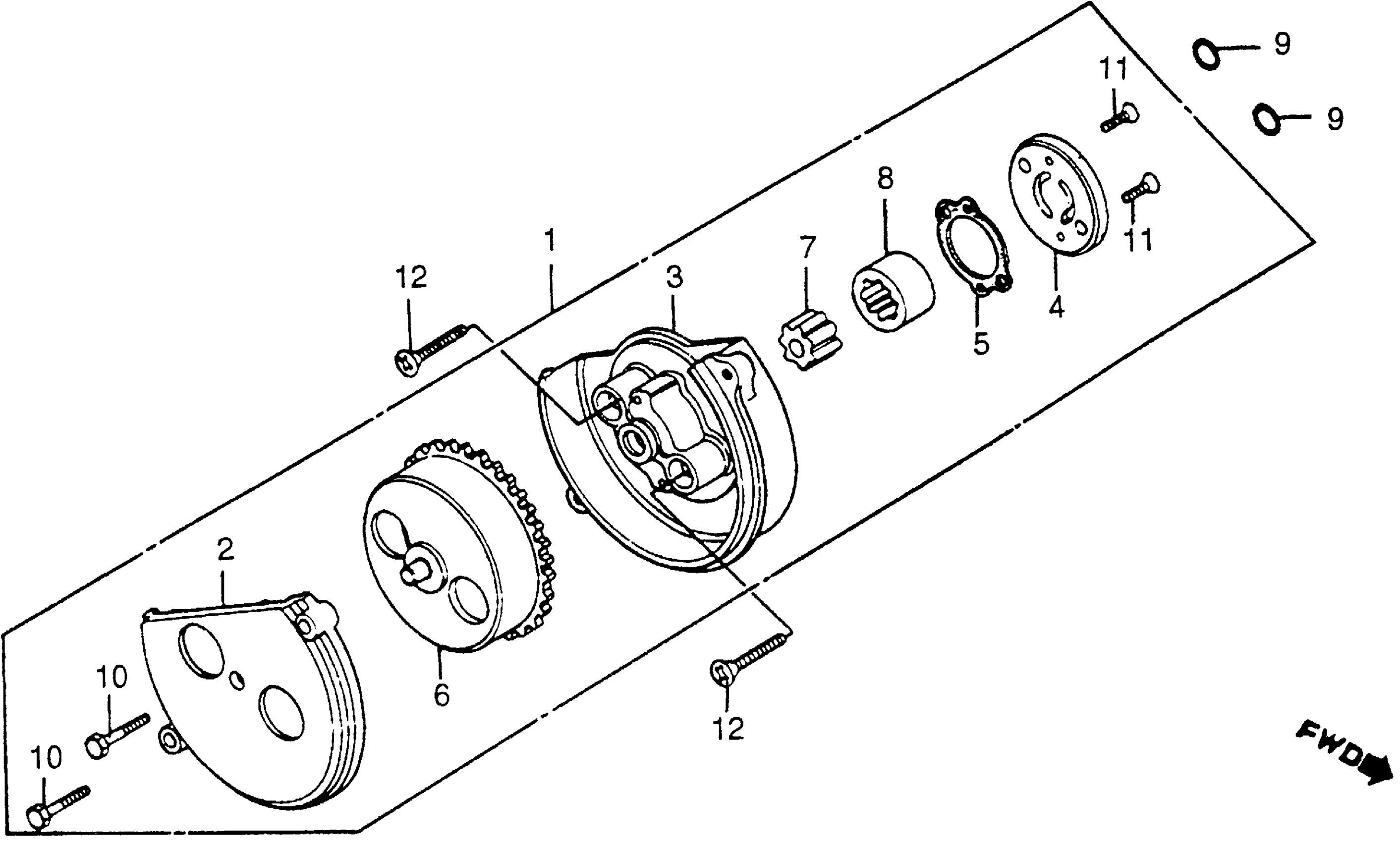

Honda ATC200MA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TB054-FK400001 OIL PUMP Diagram

PUMP ASSY., OIL

15100-958-000

Unavailable

COVER, OIL PUMP GEAR (NOT AVAILABLE)

15106-958-000

Unavailable

BODY, OIL PUMP

15111-958-000

Unavailable

PLATE, OIL PUMP

15116-958-000

Unavailable

GASKET, OIL PUMP

15126-107-020

$1.70

GEAR, OIL PUMP DRIVE

15130-958-000

Unavailable

ROTOR SET, OIL PUMP This part replaces 15331-958-000.

15021-958-000

$35.25

ROTOR SET, OIL PUMP This part replaces 15332-958-000.

15021-958-000

$35.25

O-RING (9.4X2.4)

91304-KK3-830

$2.31

O-RING (9.4X2.4) This part replaces 91304-107-000.

91304-KK3-830

$2.31

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

SCREW, FLAT (4X12)

93600-04012-1A

$1.49

SCREW, FLAT (6X35) This part replaces 93600-06035.

93600-06035-0A

$1.49

SCREW, FLAT (6X35)

93600-06035-0A

$1.49
