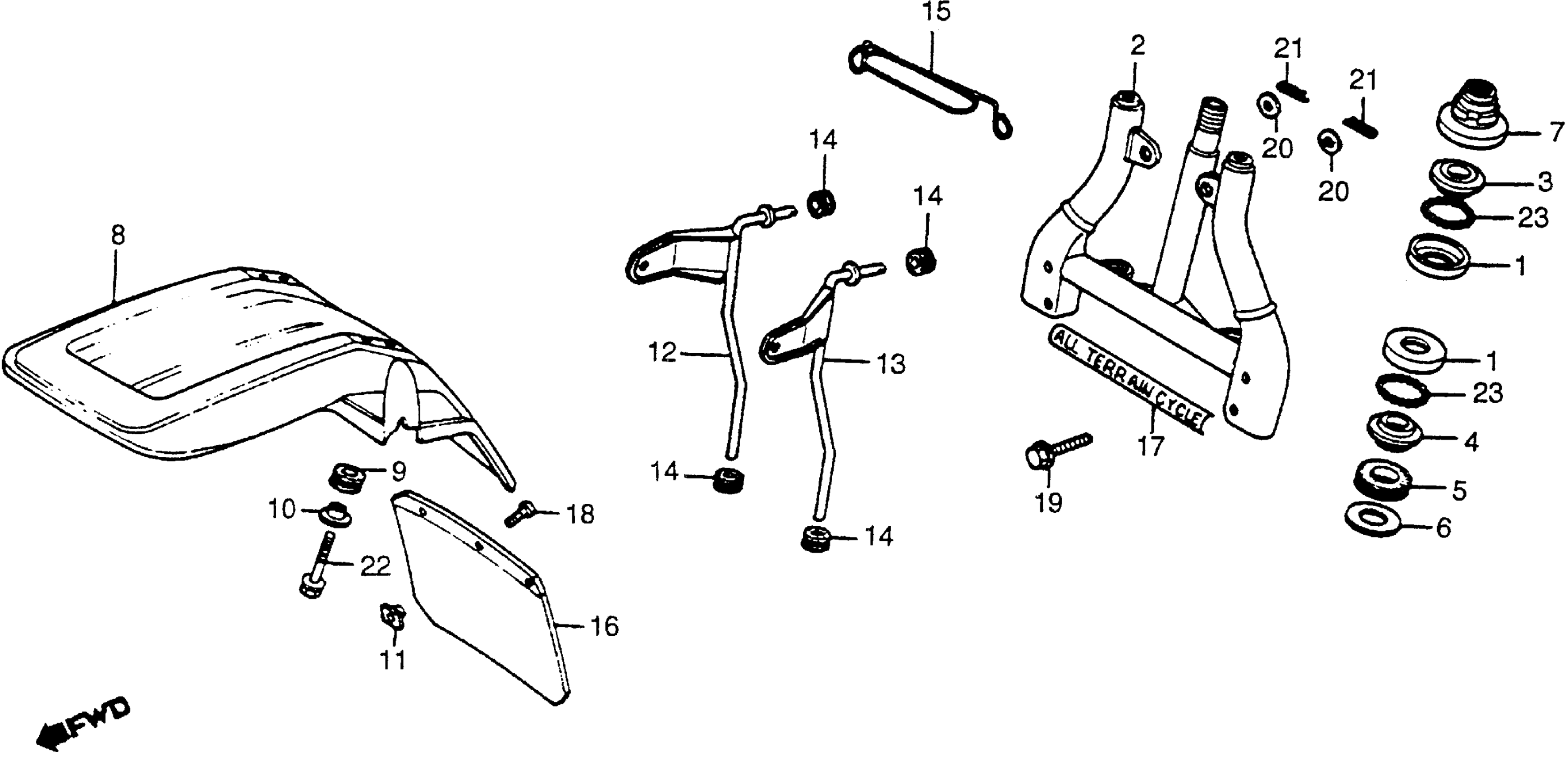

Honda ATC200MA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TB054-FK400001 FRONT FENDER + STEERING STEM Diagram

#

Description
Price

1

RACE, STEERING BALL

50301-041-010

$12.39

2

STEM, STEERING (NOT AVAILABLE) | Use up to Frame SN FK416607 This part replaces 53200-958-000.

53200-958-010

Unavailable

2

STEM, STEERING (NOT AVAILABLE)

53200-958-010

Unavailable

3

RACE, STEERING TOP CONE

53211-028-010

$11.09

4

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

5

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

6

WASHER, DUST SEAL

53215-GF8-000

$4.17

6

WASHER, DUST SEAL This part replaces 53215-918-000.

53215-GF8-000

$4.17

7

THREAD, STEERING HEAD TOP This part replaces 53220-051-690.

53220-098-670

$16.83

7

THREAD, STEERING HEAD TOP

53220-098-670

$16.83

7

THREAD, STEERING HEAD TOP This part replaces 53220-115-000.

53220-098-670

$16.83

7

THREAD, STEERING HEAD TOP This part replaces 53220-958-000.

53220-098-670

$16.83

8

FENDER, FR. (NOT AVAILABLE)

61100-958-020

Unavailable

9

RUBBER, FR. FENDER MOUNTING

61103-430-000

$3.67

10

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

10

COLLAR, RR. FENDER

61105-428-000

Unavailable

11

NUT, SPECIAL (6X7)

61304-958-003

$3.24

12

BRACKET, R. HEADLIGHT CASE (NOT AVAILABLE)

61311-VM3-680

Unavailable

13

BRACKET, L. HEADLIGHT CASE (NOT AVAILABLE)

61312-VM3-680

Unavailable

14

RUBBER, SETTING (22MM)

61315-358-000

$5.34

15

HOLDER, WIRE (NOT AVAILABLE)

61321-VM3-000

Unavailable

16

SPLASH GUARD, FR. (NOT AVAILABLE)

61861-VM3-000

Unavailable

17

EMBLEM, FR. FORK (NOT AVAILABLE)

87102-958-010

Unavailable

18

SCREW, TORUS (6X7) (NOT AVAILABLE)

90102-673-003

Unavailable

19

BOLT, FLANGE (10X35) This part replaces 90118-958-000.

90118-KG8-900

Unavailable

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

PIN, LOCK (8MM)

94251-08000

$1.49

22

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

22

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

23

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
