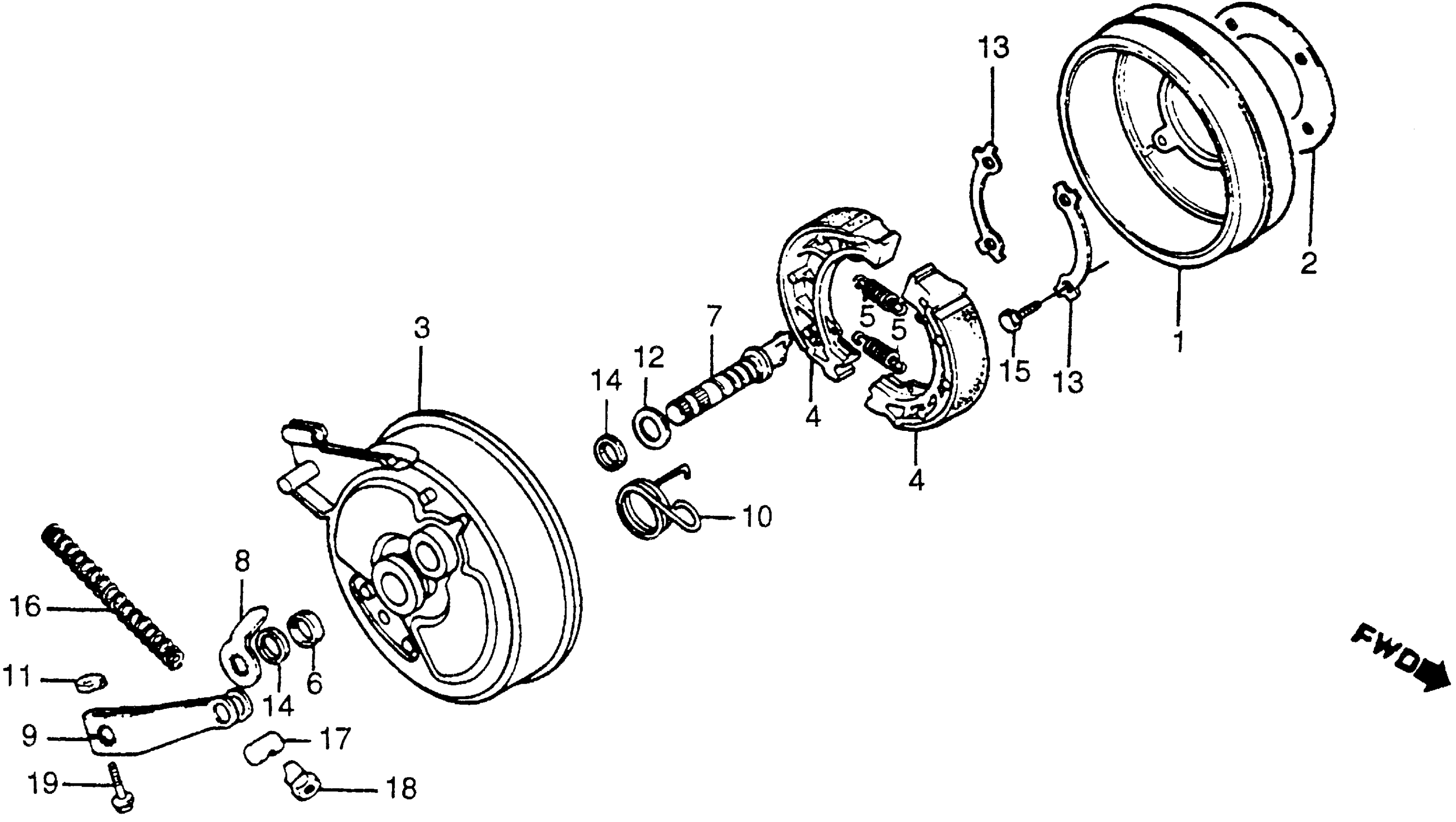

Honda ATC200MA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TB054-FK400001 FRONT BRAKE PANEL Diagram

DRUM, BRAKE (NOT AVAILABLE)

44602-VM3-000

Unavailable

GASKET, BRAKE DRUM (NOT AVAILABLE)

44603-VM3-000

Unavailable

PANEL, FR. BRAKE (NOT AVAILABLE)

45010-VM3-680

Unavailable

SHOE, BRAKE (ASK) (NOT AVAILABLE)

45120-968-681

Unavailable

SPRING, BRAKE SHOE

45133-028-000

$2.03

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

CAM, FR. BRAKE (NOT AVAILABLE)

45141-968-680

Unavailable

INDICATOR, BRAKE This part replaces 45145-968-680.

45145-968-000

Unavailable

ARM, FR. BRAKE (NOT AVAILABLE)

45410-VM3-680

Unavailable

SPRING, FR. BRAKE ARM (NOT AVAILABLE)

45435-968-000

Unavailable

NUT, FR. BRAKE ARM SETTING

45436-001-000

$1.80

WASHER (14.2MM)

90451-115-000

$2.92

WASHER, TONGUED (NOT AVAILABLE)

90514-VM3-000

Unavailable

DUST SEAL (14X20X4) (NOK)

91208-611-005

$4.35

BOLT, HEX. (8X20) This part replaces 92000-08020-0H.

92101-08020-0H

$1.77

BOLT, HEX. (8X20)

92101-08020-0H

$1.77

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT B, BRAKE ARM

95015-32001

$1.49

NUT, BRAKE ADJUSTING

43459-434-000

$15.27

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
