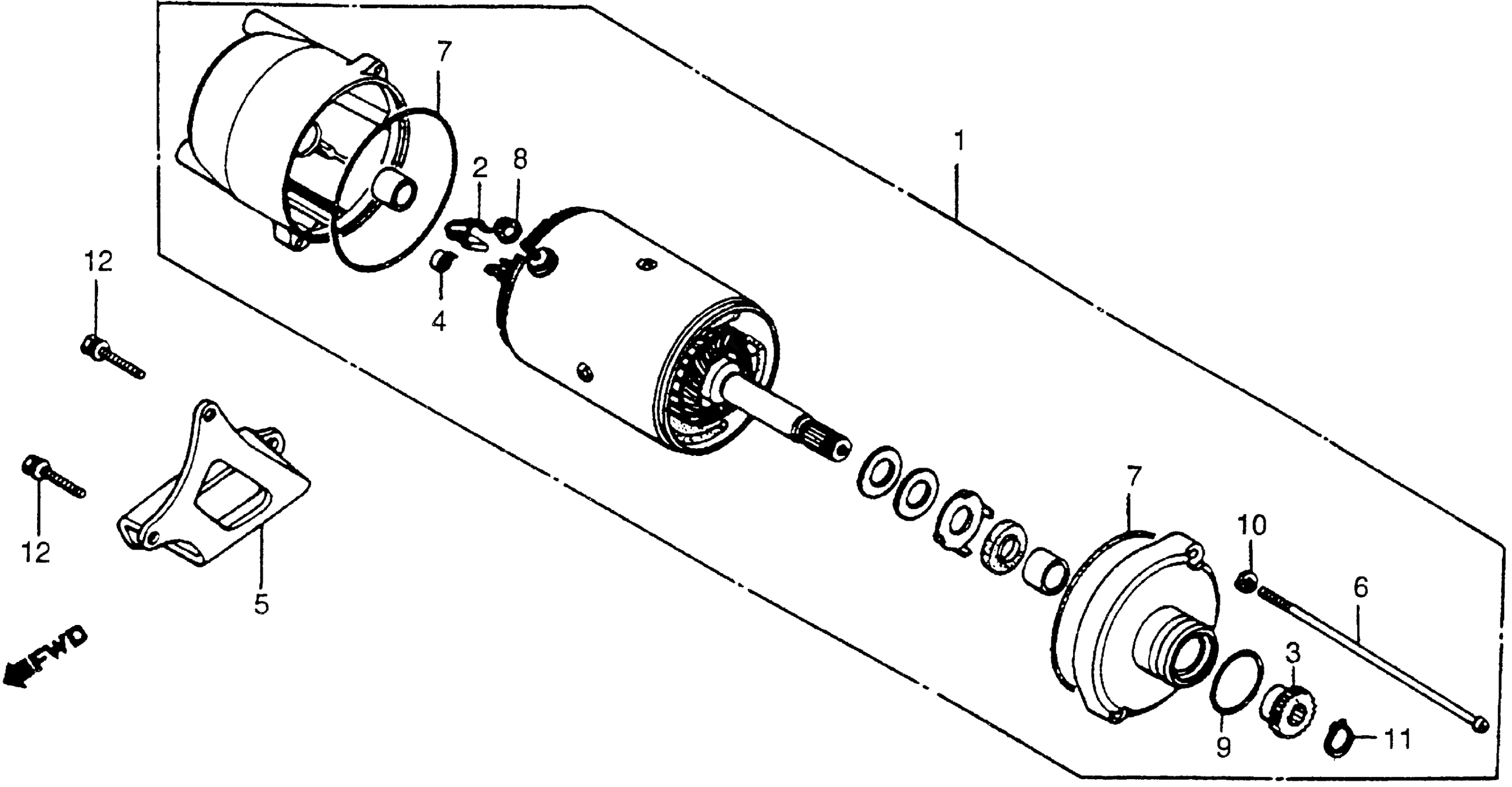

Honda ATC200MA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB054-EC300005 STARTER MOTOR Diagram

STARTER MOTOR ASSY. This part replaces 31200-958-681.

31200-958-405

Unavailable

BRUSH SET, CARBON

31201-292-158

$23.48

GEAR, STARTER MOTOR (NOT AVAILABLE)

31201-958-680

Unavailable

SPRING, CARBON BRUSH

31204-292-158

$3.57

STAY, STARTER MOTOR

31204-958-680

Unavailable

BOLT, STARTER MOTOR COVER (NOT AVAILABLE)

31205-413-780

Unavailable

O-RING (60X1.4)

31206-402-008

Unavailable

O-RING (60X1.4) This part replaces 31206-415-000.

31206-402-008

Unavailable

NUT-WASHER (6MM) | Use from Engine SN 5308487

90071-MB0-000

$1.88

O-RING (24.4X3.1) This part replaces 91309-300-000.

91312-MG7-003

Unavailable

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

WASHER, SPRING (5MM)

94111-05000

$1.03

CIRCLIP (OUTER) (11MM)

94510-11000

$0.65

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$0.96

BOLT, FLANGE (6X16)

96001-06016-00

$0.96
