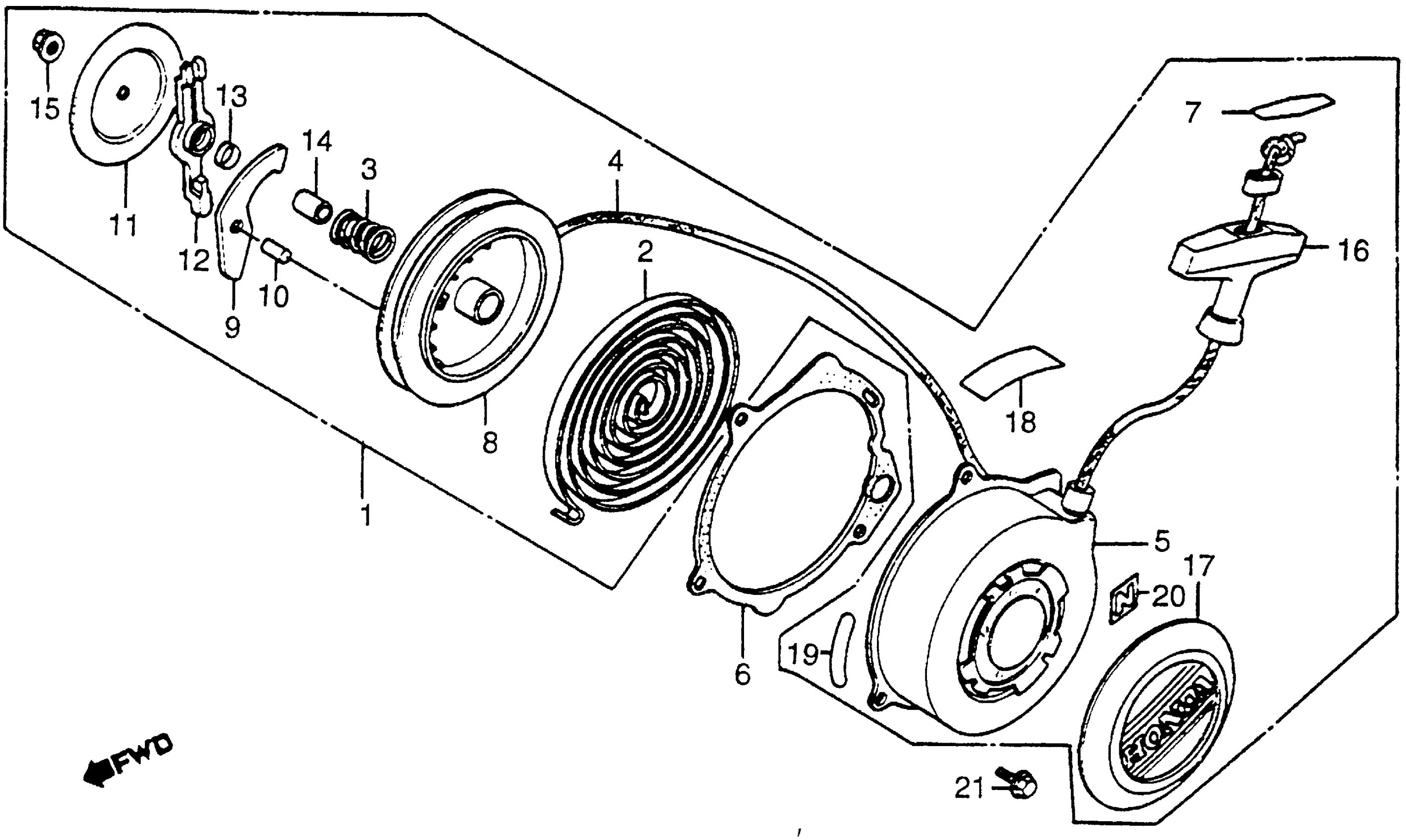

Honda ATC200MA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB054-EC300005 RECOIL STARTER Diagram

#

Description
Price

1

STARTER ASSY., RECOIL (NOT AVAILABLE) This part replaces 28400-VM3-004.

28400-VM5-004

Unavailable

1

STARTER ASSY., RECOIL (NOT AVAILABLE)

28400-VM5-004

Unavailable

2

SPRING, RECOIL STARTER

28402-968-004

Unavailable

3

SPRING, FRICTION

28404-968-004

$3.38

4

ROPE, RECOIL STARTER

28407-958-004

Unavailable

5

CASE, RECOIL STARTER (NOT AVAILABLE)

28410-968-004

Unavailable

6

GASKET, RECOIL STARTER This part replaces 28411-VM3-000.

28411-VM3-306

Unavailable

6

GASKET, RECOIL STARTER

28411-VM3-306

Unavailable

7

CAP, KNOB

28414-958-004

Unavailable

8

REEL, STARTER

28420-968-004

Unavailable

9

RATCHET, STARTER

28422-ZE1-003

$4.80

10

PIN, STARTER RATCHET

28423-968-004

Unavailable

11

PLATE, FRICTION

28431-ZE1-003

$5.08

12

GUIDE, RATCHET

28433-968-004

Unavailable

13

COVER, SPRING

28446-968-004

$5.84

14

SHAFT, SUB

28447-968-004

Unavailable

15

NUT

28448-ZE1-003

Unavailable

16

KNOB, STARTER

28461-958-003

Unavailable

17

COVER, RECOIL STARTER

28470-968-004

Unavailable

18

LABEL, NEUTRAL CAUTION (NOT AVAILABLE)

87103-957-000

Unavailable

20

LABEL, NEUTRAL (NOT AVAILABLE)

87105-958-680

Unavailable

21

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

21

BOLT, FLANGE (6X50)

96001-06050-00

$2.16
