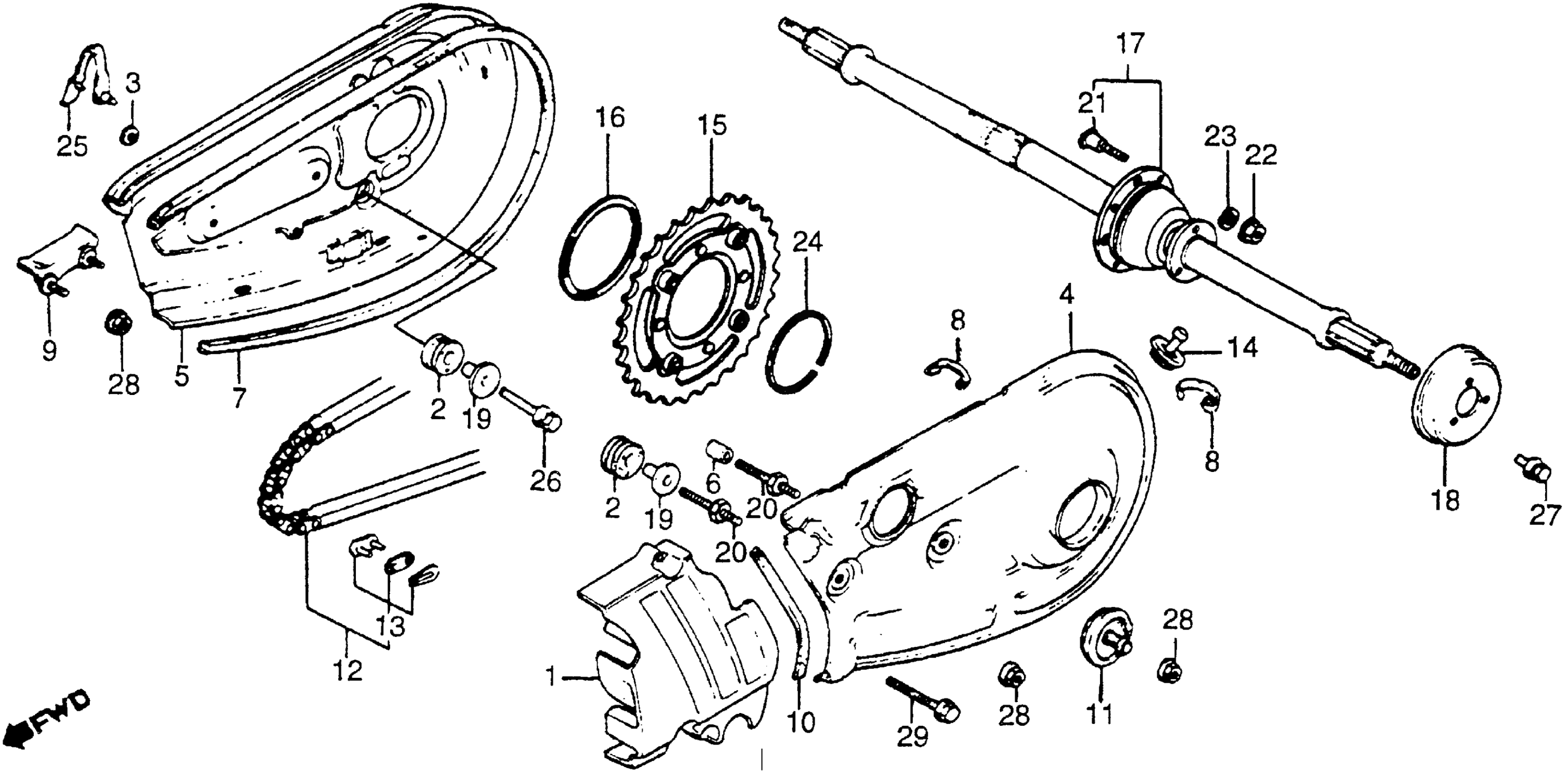

Honda ATC200MA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB054-EC300005 REAR WHEEL AXLE + CHAIN CASE Diagram

#

Description
Price

1

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11361-VM3-000

Unavailable

2

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

3

PLUG, CHAIN CASE

40514-333-000

$2.57

4

CASE, CHAIN (OUTER) (NOT AVAILABLE) This part replaces 40521-958-000.

40521-VM3-680

Unavailable

5

CASE, INSIDE CHAIN (NOT AVAILABLE) This part replaces 40522-VM3-000.

40522-VM3-680

Unavailable

6

COLLAR, CHAIN GUARD (NOT AVAILABLE)

40523-958-000

Unavailable

7

SEAL, INSIDE CHAIN CASE

40524-958-000

Unavailable

8

SPRING, CHAIN GUARD SETTING This part replaces 40525-958-000.

40525-969-680

Unavailable

9

GUIDE, CHAIN (NOT AVAILABLE)

40526-VM3-000

Unavailable

10

SEAL, CHAIN GUARD (OUTER) (NOT AVAILABLE)

40527-958-000

Unavailable

11

CAP, CHAIN PEEP HOLE

40529-958-010

Unavailable

12

CHAIN, DRIVE (NOT AVAILABLE) This part replaces 40530-VM3-000.

405W3-HB9-505

Unavailable

13

MASTER LINK (DAIDO)

40531-HB5-671

Unavailable

13

MASTER LINK (DAIDO) This part replaces 40531-958-671.

40531-HB5-671

Unavailable

14

CAP, CHAIN (NOT AVAILABLE)

40545-958-000

Unavailable

15

SPROCKET ASSY., FINAL DRIVEN (NOT AVAILABLE)

41200-958-000

Unavailable

16

DUST SEAL B, SPROCKET

41207-958-000

Unavailable

17

AXLE, RR. WHEEL (NOT AVAILABLE)

42310-958-020

Unavailable

18

PLATE, SHIELD (NOT AVAILABLE)

42327-958-000

Unavailable

19

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

19

COLLAR, RR. FENDER

61105-428-000

Unavailable

20

BOLT, SPECIAL (6X22) (NOT AVAILABLE)

90102-958-000

Unavailable

21

BOLT, SPROCKET FIXING

90128-961-000

Unavailable

22

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

23

WASHER, PLAIN (8X28) (NOT AVAILABLE)

90501-958-000

Unavailable

24

RING, SNAP (95MM) (NOT AVAILABLE)

90602-958-000

Unavailable

25

STRAP B, CABLE (125MM) (BLUE)

90669-671-003

Unavailable

26

BOLT, HEX. (6X20) This part replaces 92000-06020-0H.

92101-06020-0H

$1.49

26

BOLT, HEX. (6X20)

92101-06020-0H

$1.49

27

BOLT-WASHER (6X8)

93492-06008-08

Unavailable

28

NUT, FLANGE (6MM)

94050-06080

$1.49

29

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

29

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
