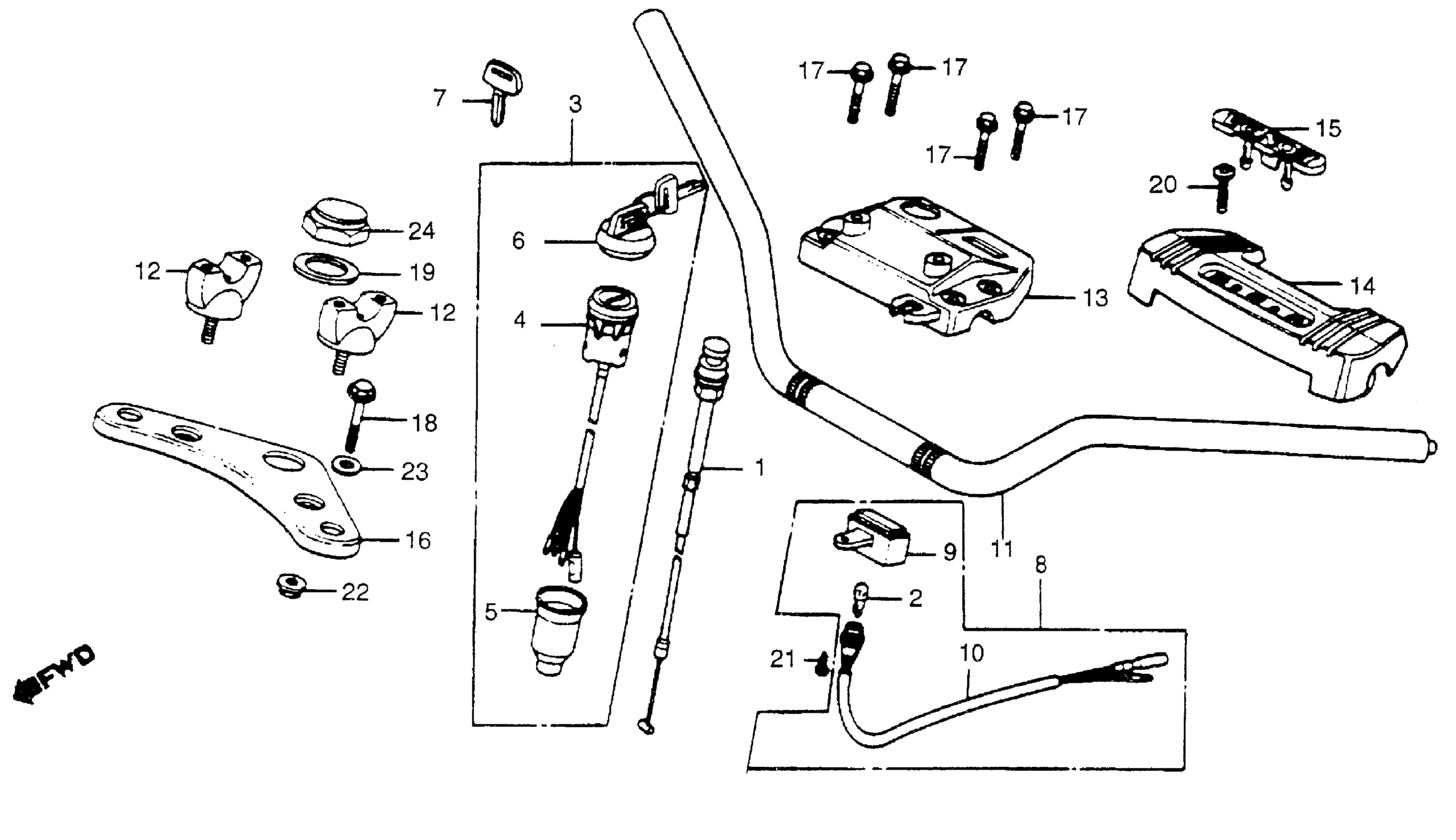

Honda ATC200MA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB054-EC300005 HANDLEBAR + TOP BRIDGE Diagram

CABLE, CHOKE

17950-VM3-000

Unavailable

BULB 12V 2.3W WED This part replaces 34908-MB0-003.

34275-S2X-003

$3.28

LOCK SET

35010-958-680

Unavailable

LOCK SET

35010-958-680

Unavailable

LOCK SET This part replaces 35100-958-681.

35010-958-680

Unavailable

COVER, COMBINATION SWITCH (NOT AVAILABLE)

35105-958-680

Unavailable

CAP, COMBINATION SWITCH KEY

35113-958-681

Unavailable

KEY,BLANK (NO.1) | (Optional). This part replaces 35121-086-811.

35121-GW0-731

$9.44

KEY,BLANK (NO.2) | (Optional). This part replaces 35122-086-811.

35122-GW0-731

Unavailable

INDICATOR ASSY., NEUTRAL (NOT AVAILABLE)

38400-968-003

Unavailable

CASE, NEUTRAL INDICATOR (NOT AVAILABLE)

38401-968-003

Unavailable

SOCKET (NOT AVAILABLE)

38402-968-003

Unavailable

HANDLEBAR (NOT AVAILABLE)

53100-958-681

Unavailable

HOLDER, HANDLE (LOWER) This part replaces 53130-HA7-670.

53130-HB9-000

Unavailable

HOLDER, HANDLE (LOWER) This part replaces 53130-958-000.

53130-HB9-000

Unavailable

HOLDER, HANDLEBAR (UPPER) (NOT AVAILABLE)

53131-968-000

Unavailable

COVER, HANDLEBAR (NOT AVAILABLE)

53205-958-682

Unavailable

LABEL, HANDLEBAR COVER (NOT AVAILABLE)

53206-958-003

Unavailable

BRIDGE, FORK TOP (NOT AVAILABLE)

53231-958-020

Unavailable

BOLT, FLANGE (8X36) This part replaces 90111-402-700.

90111-362-000

$4.80

BOLT-WASHER (12X25) (NOT AVAILABLE)

90115-958-681

Unavailable

WASHER, STEERING STEM

90503-958-000

Unavailable

SCREW-WASHER (6X20)

93891-06020-08

$1.80

SCREW, TAPPING (4X12)

93903-34320

$1.49

NUT, FLANGE (10MM)

94050-10080

$3.24

WASHER, PLAIN (12MM)

94101-12000

$1.49

NUT, STEERING STEM

90304-159-000

$7.02

NUT, STEERING STEM This part replaces 95020-11100.

90304-159-000

$7.02
