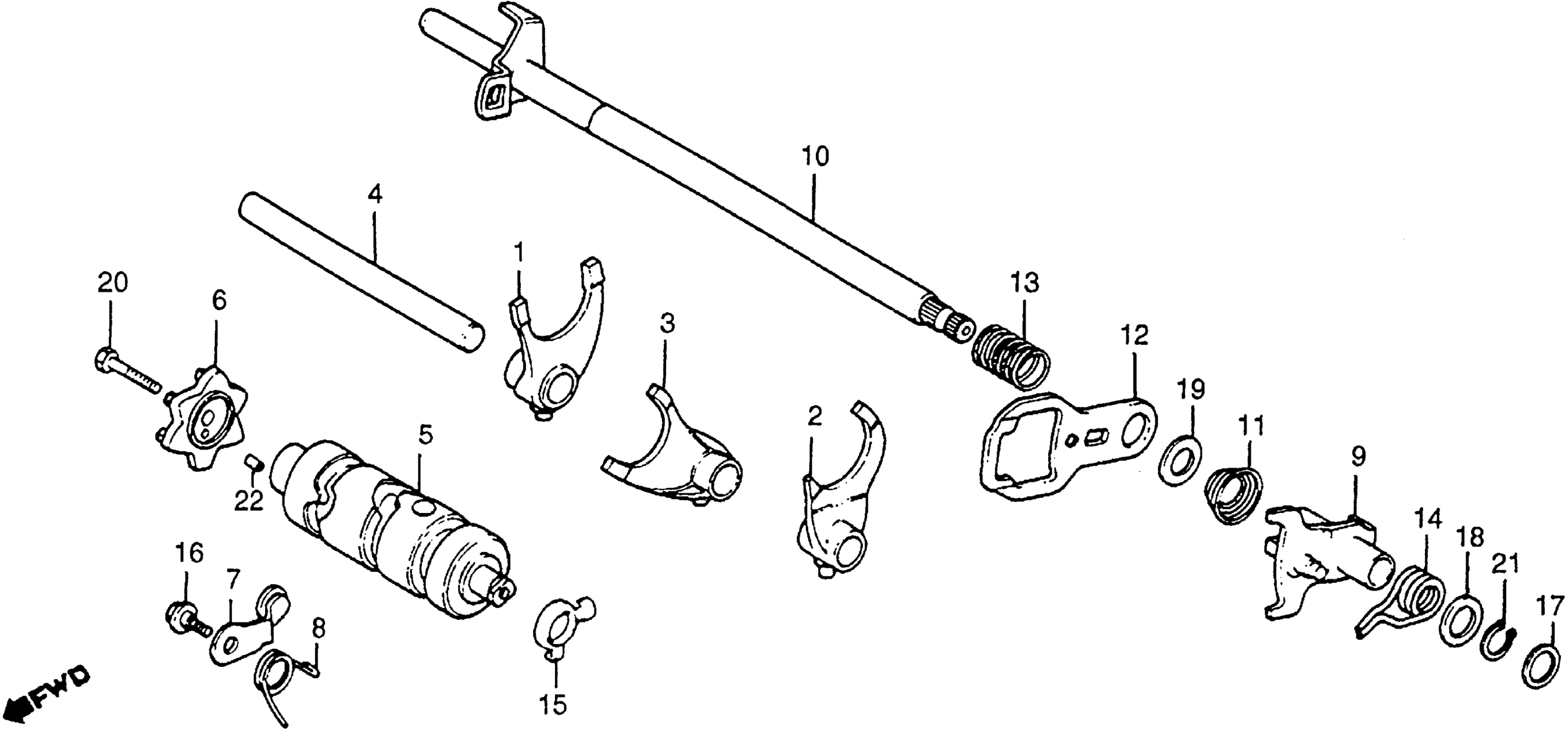

Honda ATC200MA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB054-EC300005 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-437-010

Unavailable

2

FORK, L. GEARSHIFT

24221-427-010

$67.83

3

FORK, CENTER GEARSHIFT

24231-107-010

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE

24241-399-000

$15.23

5

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-958-680

Unavailable

6

CAM, GEARSHIFT

24411-958-010

$34.33

7

STOPPER, GEARSHIFT DRUM

24430-437-000

$15.71

8

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-958-000

Unavailable

9

ARM, GEARSHIFT MASTER (NOT AVAILABLE)

24510-958-000

Unavailable

10

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-958-000

Unavailable

11

SPRING, GEARSHIFT SPINDLE (NOT AVAILABLE)

24617-958-004

Unavailable

12

PLATE, GEARSHIFT (NOT AVAILABLE)

24621-958-010

Unavailable

13

SPRING, SHIFT PLATE (NOT AVAILABLE)

24631-958-000

Unavailable

14

SPRING, SHIFT RETURN

24651-958-000

Unavailable

15

ROTOR, NEUTRAL SWITCH

35753-KG2-951

$4.45

15

ROTOR, NEUTRAL SWITCH This part replaces 35753-028-601.

35753-KG2-951

$4.45

16

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.04

16

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.04

17

WASHER A, THRUST (14MM)

90427-958-000

Unavailable

18

WASHER B, THRUST (14MM)

90428-958-000

$4.33

19

WASHER, THRUST (10MM) (NOT AVAILABLE)

90451-350-000

Unavailable

20

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.48

20

BOLT, HEX. (6X25) This part replaces 92000-06025-0A.

92101-06025-0A

$1.48

20

BOLT, HEX. (6X25) This part replaces 92100-06025.

92101-06025-0A

$1.48

20

BOLT, HEX. (6X25)

92101-06025-0A

$1.48

21

CIRCLIP, OUTER (14MM)

94510-14000

$0.93

22

ROLLER (4X10)

96220-40100

$0.45
