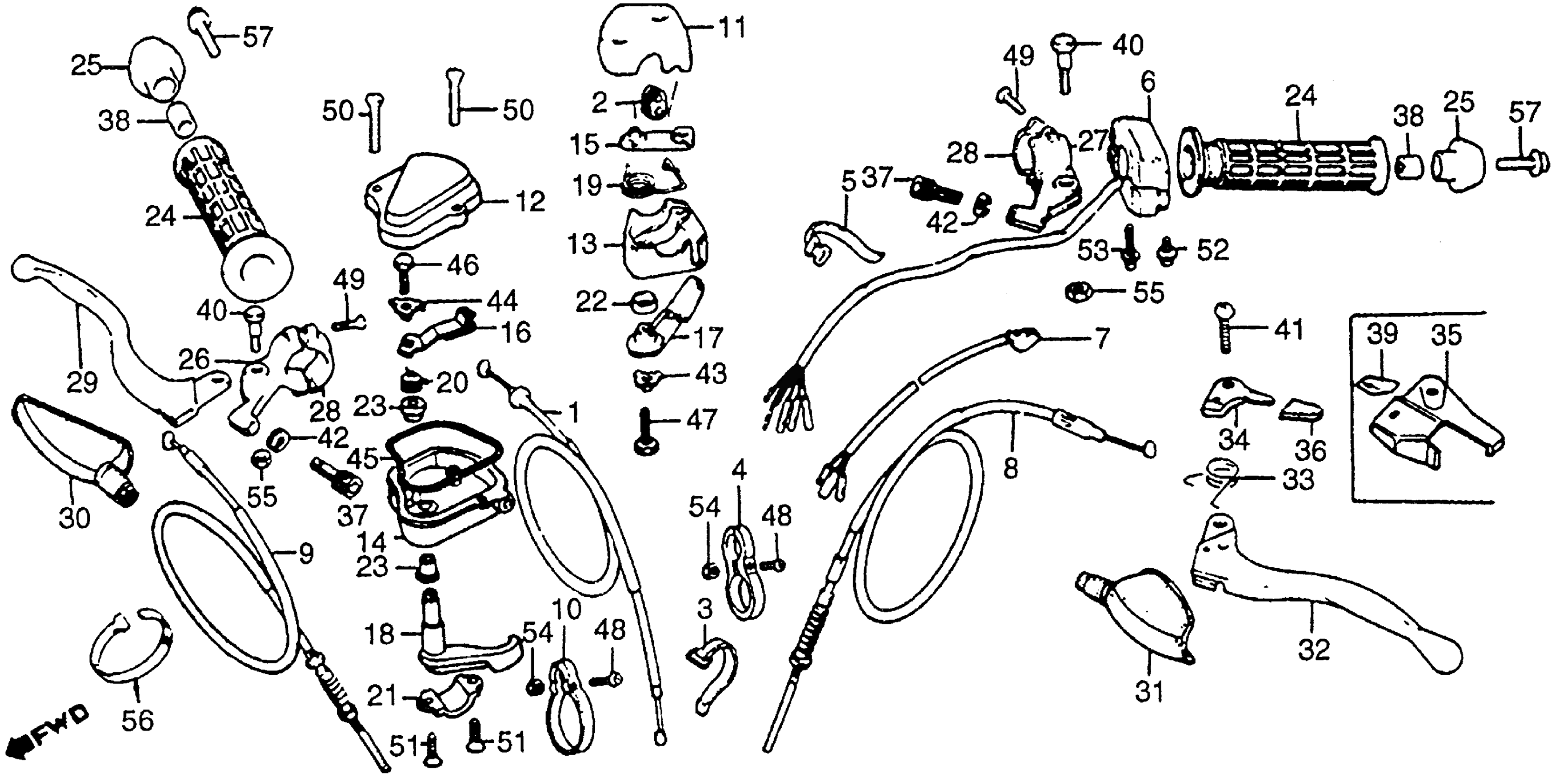

Honda ATC200MA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB054-EC300005 CABLES + SWITCHES + CONTROL LEVERS Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-VM3-000

Unavailable

2

GROMMET, THROTTLE CASE (NOT AVAILABLE)

17913-958-300

Unavailable

3

BAND, THROTTLE CABLE (NOT AVAILABLE)

17914-958-010

Unavailable

4

GUIDE, THROTTLE CABLE (NOT AVAILABLE)

17916-958-000

Unavailable

5

BAND B1, WIRE

32161-404-000

$2.23

6

SWITCH ASSY., LIGHTING/ENGINE STOP (NOT AVAILABLE)

35200-958-013

Unavailable

7

SWITCH ASSY., STARTING (NOT AVAILABLE)

35250-958-681

Unavailable

8

CABLE, HAND BRAKE (NOT AVAILABLE)

43460-VM3-000

Unavailable

9

CABLE, FR. BRAKE This part replaces 45450-VM3-000.

45450-958-681

Unavailable

9

CABLE, FR. BRAKE

45450-958-681

Unavailable

10

GUIDE, BRAKE CABLE (NOT AVAILABLE) This part replaces 45467-958-010.

45467-958-020

Unavailable

11

COVER, THROTTLE (NOT AVAILABLE)

53141-958-000

Unavailable

13

CASE, THROTTLE (NOT AVAILABLE)

53142-958-000

Unavailable

15

ARM, THROTTLE (NOT AVAILABLE)

53144-958-000

$5.87

17

CONTROL LEVER, THROTTLE

53145-957-000

Unavailable

19

SPRING, THROTTLE CONTROL LEVER (NOT AVAILABLE)

53146-943-000

Unavailable

22

BUSH, THROTTLE LEVER (NOT AVAILABLE)

53148-957-003

Unavailable

24

GRIP, HANDLE

53165-958-010

$13.38

25

GUARD, HANDLE END

53167-958-680

$6.40

26

BRACKET, R. CONTROL LEVER (NOT AVAILABLE)

53171-968-000

Unavailable

27

BRACKET, BRAKE CONTROL LEVER (NOT AVAILABLE)

53172-968-000

Unavailable

28

HOLDER, LEVER BRACKET

53173-958-000

$10.59

29

LEVER, R. HANDLEBAR

53175-958-010

Unavailable

32

LEVER, L. HANDLEBAR This part replaces 53178-968-000.

53178-968-405

Unavailable

32

LEVER, L. HANDLEBAR

53178-968-405

Unavailable

33

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

35

CONTROL LEVER, PARKING BRAKE LOCK (NOT AVAILABLE)

53192-968-000

Unavailable

37

BOLT, WIRE ADJUSTING

53193-968-000

$14.08

38

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

39

LABEL, PARKING BRAKE CONTROL LEVER (NOT AVAILABLE)

87574-968-000

Unavailable

40

BOLT, HANDLE LEVER PIVOT

90114-310-000

$4.90

41

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

42

NUT, FIXING

90321-315-670

$7.31

42

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

43

WASHER, LOCK (5MM)

90501-957-000

Unavailable

47

BOLT, HEX. (5X22) This part replaces 92000-05022-0A.

92101-05022-0A

$1.49

47

BOLT, HEX. (5X22)

92101-05022-0A

$1.49

48

SCREW, PAN (4X20)

93500-04020-0A

$1.49

48

SCREW, PAN (4X20) This part replaces 93500-04020-1A.

93500-04020-0A

$1.49

49

SCREW, PAN (5X18)

93500-05018-0A

$1.49

50

SCREW, OVAL (5X22)

93700-05022-0B

$1.49

52

SCREW-WASHER (5X20)

93892-05020-07

$1.49

53

SCREW-WASHER (5X40)

93892-05040-07

Unavailable

54

NUT, HEX. (4MM)

94001-04000-0S

$1.49

55

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

55

NUT, HEX. (6MM)

94001-06200-0S

$1.49

56

BAND B1, WIRE

32161-404-000

$2.23

56

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

57

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

57

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
