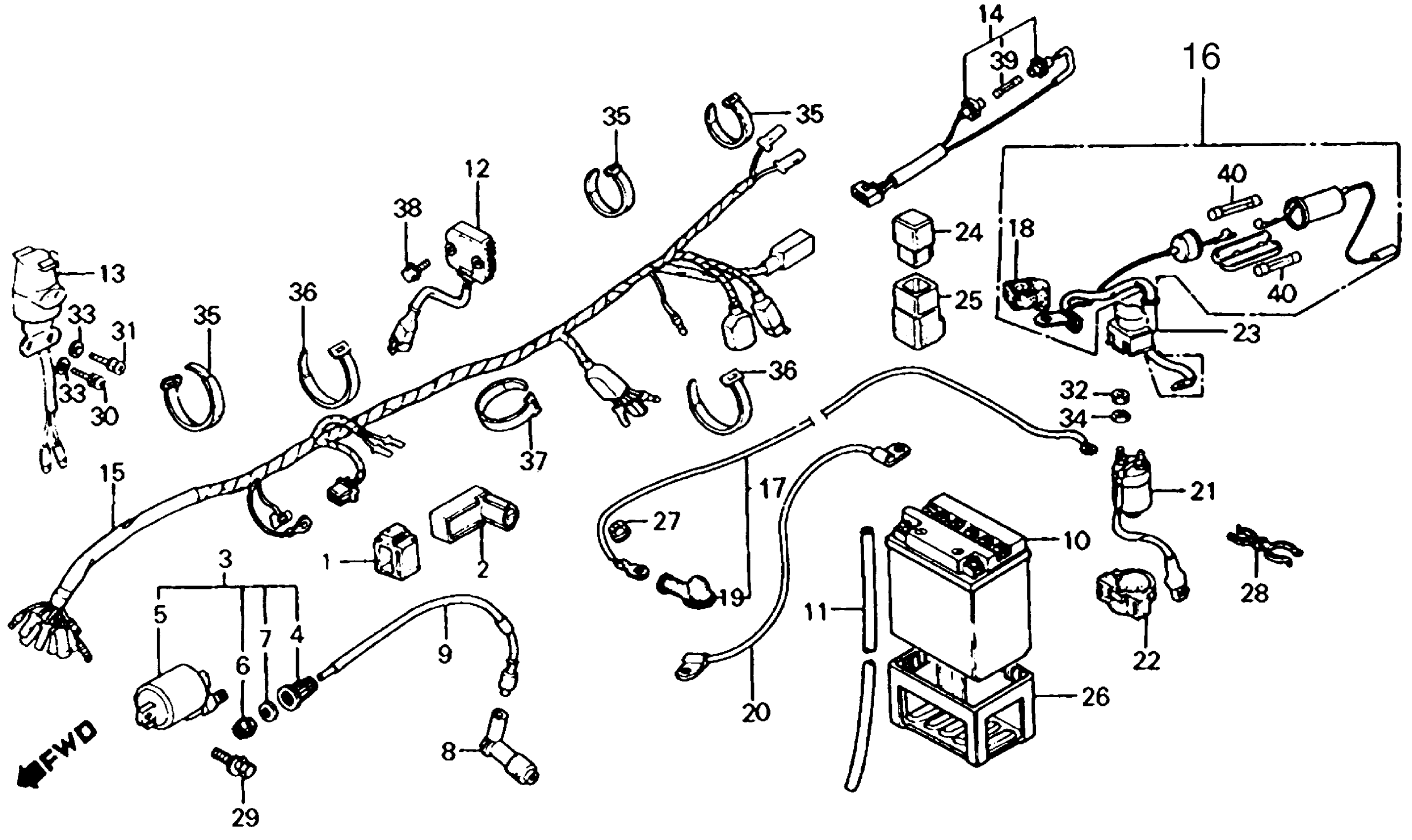

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 WIRE HARNESS + RECTIFIER Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KB4-000

$6.92

2

MODULE, IGNITION CONTROL (CDI) This part replaces 30410-969-003.

30410-969-013

$220.53

2

MODULE, IGNITION CONTROL (CDI)

30410-969-013

$220.53

3

COIL ASSY., IGNITION This part replaces 30500-VM3-000.

30500-VM3-405

Unavailable

3

COIL ASSY., IGNITION

30500-VM3-405

Unavailable

4

CAP, SCREW

30501-428-003

Unavailable

5

COIL, IGNITION This part replaces 30501-958-000.

30510-167-003

Unavailable

5

COIL, IGNITION

30510-167-003

Unavailable

6

SEAL, RUBBER

30502-428-003

$1.49

7

WASHER, CAP

30503-428-003

$1.52

8

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-153.

30700-KE2-942

$17.87

8

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-163.

30700-KE2-942

$17.87

9

WIRE, COIL (4-2) This part replaces 30750-VM3-000.

30750-196-P00

Unavailable

9

WIRE, COIL

30750-196-P00

Unavailable

10

BATTERY ASSY. (YB14A-A2) (YUASA) This part replaces 31500-958-681.

31500-958-682AH

$90.74

10

BATTERY ASSY. (YB14A-A2) (YUASA) This part replaces 31500-958-682.

31500-958-682AH

$90.74

11

PIPE, BREATHER

31502-VM3-000

Unavailable

12

RECTIFIER ASSY., REGULATOR

31600-958-682

Unavailable

13

UNIT ASSY., D.C. (RECEPTACLE)

31650-958-681

Unavailable

14

FUSE ASSY., RECEPTACLE

31655-958-681

Unavailable

15

WIRE HARNESS (NOT AVAILABLE)

32100-969-000

Unavailable

16

CABLE, BATTERY RELAY (NOT AVAILABLE)

32401-969-000

Unavailable

17

CABLE, STARTER MOTOR This part replaces 32402-VM3-010.

32402-VM5-000

Unavailable

17

CABLE, STARTER MOTOR

32402-VM5-000

Unavailable

18

COVER, BATTERY TERMINAL (NOT AVAILABLE)

32411-MB2-000

Unavailable

19

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

19

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

20

CABLE, BATTERY GROUND (NOT AVAILABLE) This part replaces 32601-VM3-000.

32601-958-680

Unavailable

21

SWITCH ASSY., STARTER MAGNETIC

35850-HA8-771

Unavailable

21

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-VM3-010.

35850-HA8-771

Unavailable

21

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-VM3-020.

35850-HA8-771

Unavailable

22

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

23

COVER, MAGNETIC SWITCH (NOT AVAILABLE)

35857-969-000

Unavailable

24

RELAY, INHIBITER This part replaces 38321-969-003.

38500-969-405

Unavailable

25

SUSPENSION, STARTER RELAY (NOT AVAILABLE)

38506-GJ8-004

Unavailable

26

RUBBER, BATTERY (NOT AVAILABLE)

50334-958-681

Unavailable

27

NUT-WASHER (6MM)

90071-MB0-000

$1.97

28

CLIP, WIRE | Use from Frame SN EC319308

90655-969-003

Unavailable

29

BOLT-WASHER (5X25) (NOT AVAILABLE)

93492-05025-08

Unavailable

30

SCREW-WASHER (5X18)

93891-05018-00

Unavailable

30

SCREW-WASHER (5X18) This part replaces 93891-05018-10.

93891-05018-00

Unavailable

31

SCREW-WASHER (5X22)

93894-05022-00

Unavailable

32

NUT, HEX. (6MM)

94002-06000-0S

$1.49

33

WASHER, PLAIN (5MM)

94101-05000

$1.49

34

WASHER, SPRING (6MM)

94111-06000

$1.49

35

BAND B1, CABLE

32161-404-000

$2.23

35

BAND B1, CABLE | Use from Frame SN EC308512

32161-404-000

$2.23

35

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

35

BAND B1, CABLE | Use from Frame SN EC308512 This part replaces 95014-61100.

32161-404-000

$2.23

36

BAND A2, CABLE | Use up to Frame SN EC308511

95014-61200

$2.33

36

BAND A2, CABLE | Use from Frame SN EC308512

95014-61200

$2.33

37

BAND A3, CABLE

95014-61300

$1.97

38

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

38

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

39

FUSE A (5A)

98200-10500

$1.49

40

FUSE B (10A)

98200-21000

$1.49
