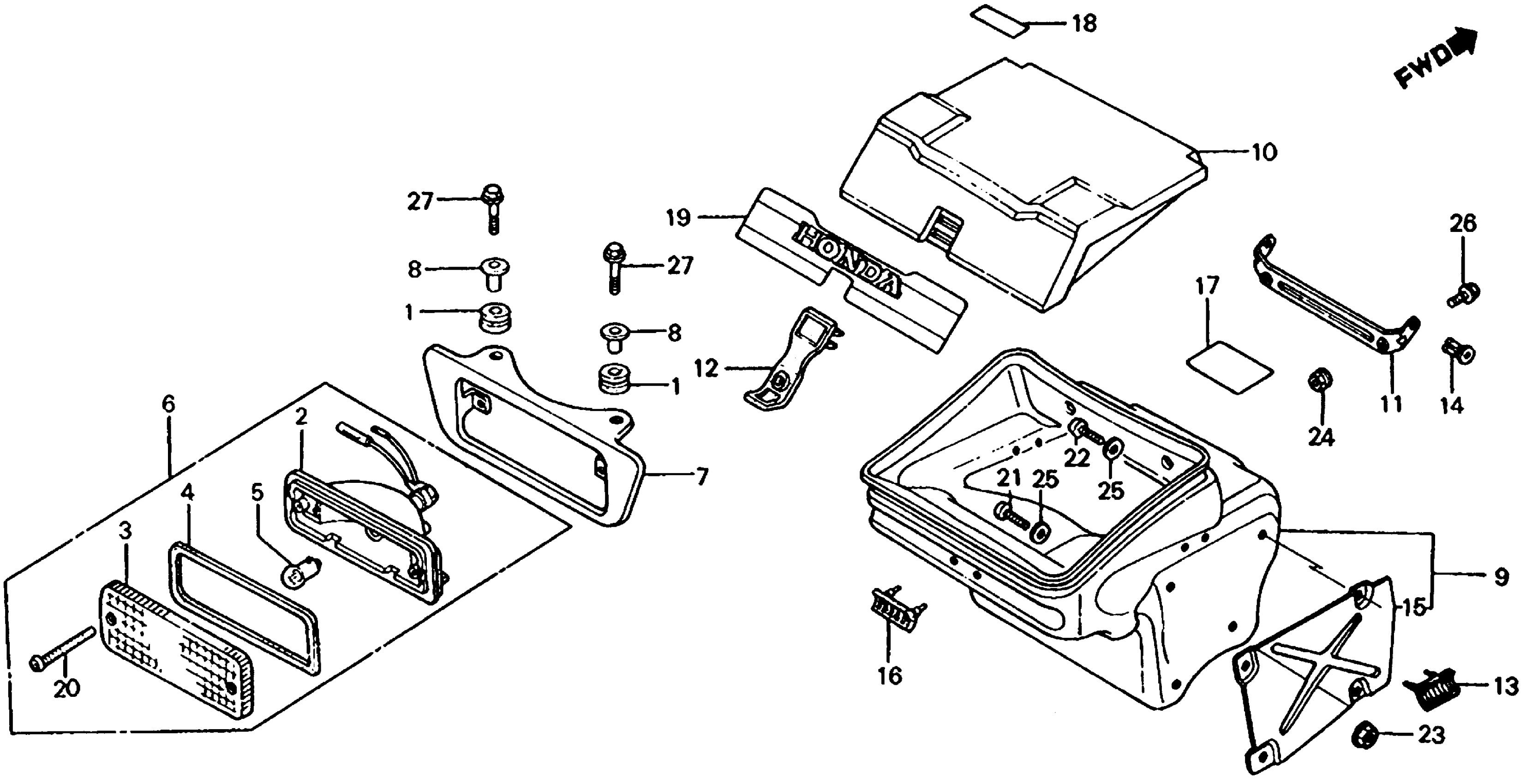

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 TAILLIGHT + TOOL BOX Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

2

HOUSING, TAILLIGHT

33300-958-013

Unavailable

3

LENS, TAILLIGHT

33302-958-013

$19.40

4

GASKET, TAILLIGHT LENS This part replaces 33303-692-003.

33303-958-003

Unavailable

4

GASKET, TAILLIGHT LENS

33303-958-003

Unavailable

5

BULB (12V5W) (STANLEY) (NOT AVAILABLE) This part replaces 33310-594-601.

34910-504-003

Unavailable

5

BULB (12V5W) (STANLEY) (NOT AVAILABLE) This part replaces 34905-965-003.

34910-504-003

Unavailable

5

BULB (12V5W) (STANLEY) (NOT AVAILABLE)

34910-504-003

Unavailable

6

TAILLIGHT ASSY. This part replaces 33700-958-023.

33700-968-003

Unavailable

6

TAILLIGHT ASSY.

33700-968-003

Unavailable

7

BRACKET, TAILLIGHT (NOT AVAILABLE)

33705-958-680

Unavailable

8

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

8

COLLAR, RR. FENDER

61105-428-000

Unavailable

9

BOX, TOOL (NOT AVAILABLE)

80210-958-682

Unavailable

10

LID, TOOL BOX (NOT AVAILABLE)

80211-958-681

Unavailable

11

BRACKET, TOOL BOX LID (NOT AVAILABLE) This part replaces 80212-958-680.

80212-969-680

Unavailable

11

BRACKET, TOOL BOX LID

80212-969-680

Unavailable

12

BAND, TOOL BOX

80214-958-010

Unavailable

13

CUSHION, TOOL BOX (NOT AVAILABLE)

80216-958-680

Unavailable

14

RIVET, TOOL BOX

80217-958-003

$2.23

15

PROTECTOR, TOOL BOX

80218-958-680

Unavailable

16

RUBBER, TOOL BOX STOPPER

80219-958-681

Unavailable

17

LABEL, BATTERY CAUTION (NOT AVAILABLE)

87506-958-680

Unavailable

18

LABEL, OPERATOR WARNING

87510-943-000

Unavailable

19

EMBLEM, TOOL BOX (NOT AVAILABLE)

87527-969-000

Unavailable

20

SCREW, TAPPING (4X35) This part replaces 90140-657-920.

93901-448J0

Unavailable

20

SCREW, TAPPING (4X35)

93901-448J0

Unavailable

21

SCREW, PAN (5X12)

93500-05012-0H

$1.49

22

SCREW, PAN (5X14)

93500-05014-0H

$1.49

23

NUT, FLANGE (5MM)

94050-05000

$1.49

24

NUT, FLANGE (6MM)

94050-06080

$1.49

25

WASHER, PLAIN (5MM)

94101-05800

$1.49

26

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

26

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

27

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

27

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
