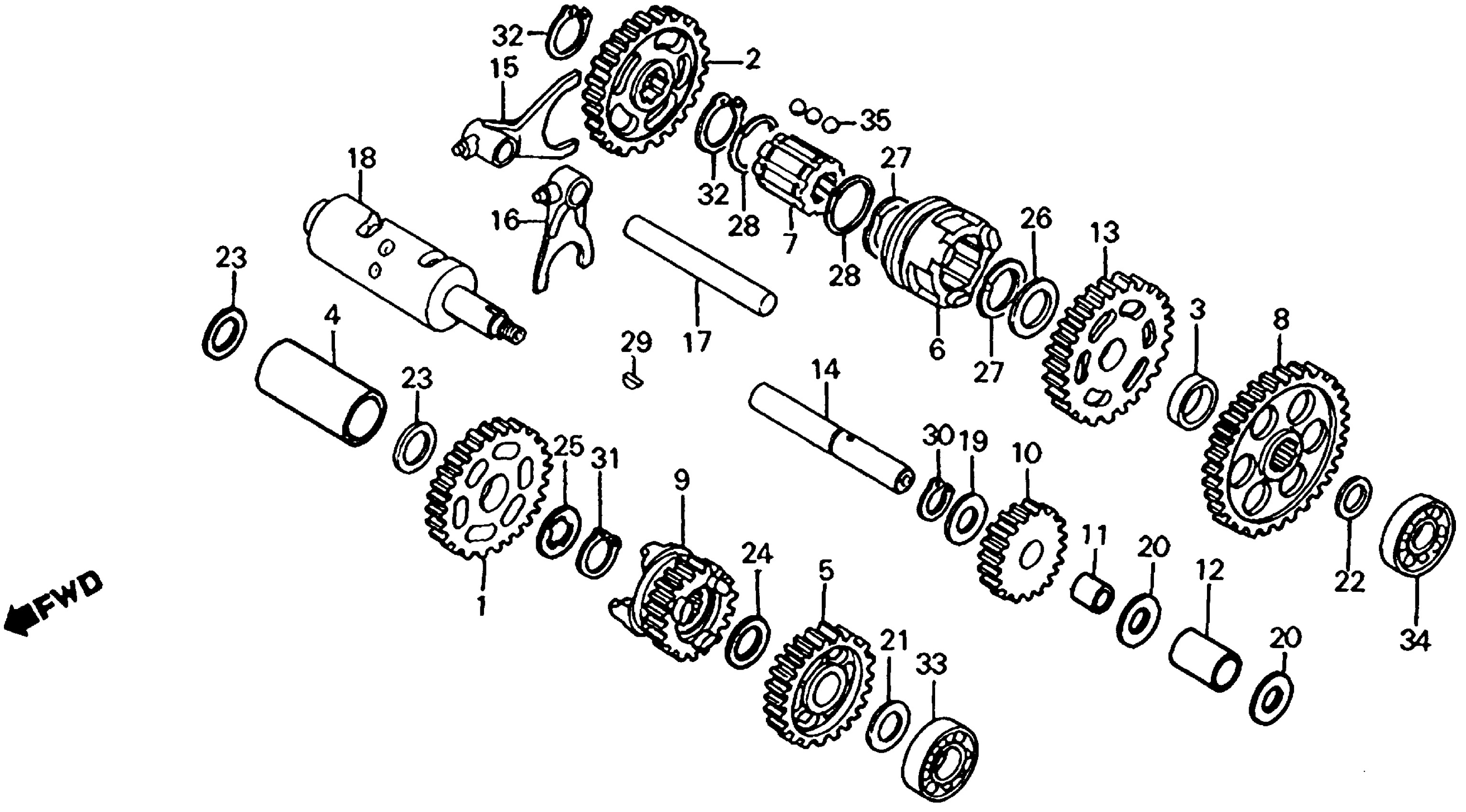

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 SUB-TRANS Diagram

#

Description
Price

1

GEAR, SUB-TRANSMISSION DRIVE HIGH

23910-969-000

Unavailable

2

GEAR, SUB-TRANSMISSION DRIVEN HIGH (NOT AVAILABLE)

23921-969-000

Unavailable

3

COLLAR (20MM)

23922-969-000

Unavailable

4

COLLAR (20X25X31.9)

23924-969-000

Unavailable

5

GEAR, SUB-TRANSMISSION DRIVE LOW (30T) (NOT AVAILABLE)

23930-969-000

Unavailable

6

SLIDER, REVERSE (NOT AVAILABLE)

23935-969-000

Unavailable

7

COLLAR, REVERSE SLIDER

23936-969-000

Unavailable

8

GEAR, SUB-TRANSMISSION DRIVEN LOW (47T)

23941-969-000

Unavailable

9

GEAR, REVERSE DRIVE (18T) (NOT AVAILABLE)

23951-969-000

Unavailable

10

GEAR, REVERSE IDLE (NOT AVAILABLE)

23961-969-000

Unavailable

11

BUSH (15MM) (NOT AVAILABLE)

23962-969-000

Unavailable

12

COLLAR (15X21X17.1)

23963-969-000

Unavailable

13

GEAR, REVERSE DRIVEN (30T)

23970-969-000

Unavailable

14

SHAFT, REVERSE IDLE GEAR

23981-969-000

Unavailable

15

FORK, SUB-TRANSMISSION REVERSE GEARSHIFT (NOT AVAILABLE)

24710-969-000

Unavailable

16

FORK, SUB-TRANSMISSION GEARSHIFT (NOT AVAILABLE)

24711-969-000

Unavailable

17

SHAFT, SUB-TRANS SHIFT FORK (NOT AVAILABLE)

24712-969-000

Unavailable

18

DRUM, SUB-TRANSMISSION GEARSHIFT | Use up to Engine SN 6080531 This part replaces 24721-969-000.

24721-969-010

Unavailable

18

DRUM, SUB-TRANSMISSION GEARSHIFT

24721-969-010

Unavailable

19

WASHER, SPECIAL (15MM)

90403-969-000

Unavailable

20

WASHER, THRUST (15MM) (NOT AVAILABLE)

90404-969-000

Unavailable

21

WASHER, THRUST (15MM)

90412-187-000

$2.05

22

WASHER (17MM)

90452-115-000

$2.20

23

WASHER, THRUST (20X28X1.5)

90453-KA3-710

Unavailable

24

WASHER, THRUST (16.7MM) (NOT AVAILABLE)

90453-427-000

Unavailable

25

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

26

WASHER, THRUST (22MM)

90456-323-000

Unavailable

27

RING, DOUBLE COIL (INNER)

90613-969-003

$14.25

28

CLIP (32.5MM)

90616-969-000

$2.18

29

KEY, WOODRUFF (16X12)

90741-969-000

Unavailable

30

CIRCLIP (OUTER) (15MM)

94510-15000

$1.49

31

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

32

CIRCLIP (OUTER) (25MM)

94510-25000

$1.49

33

BEARING, RADIAL BALL (6202U)

96140-62020

$13.60

33

BEARING, RADIAL BALL (6202U) This part replaces 96140-62020-00.

96140-62020

$13.60

34

BEARING, RADIAL BALL (6203)

96140-62030-00

$18.59

35

BALL, STEEL (#7) (7/32)

96211-07000

$1.49
