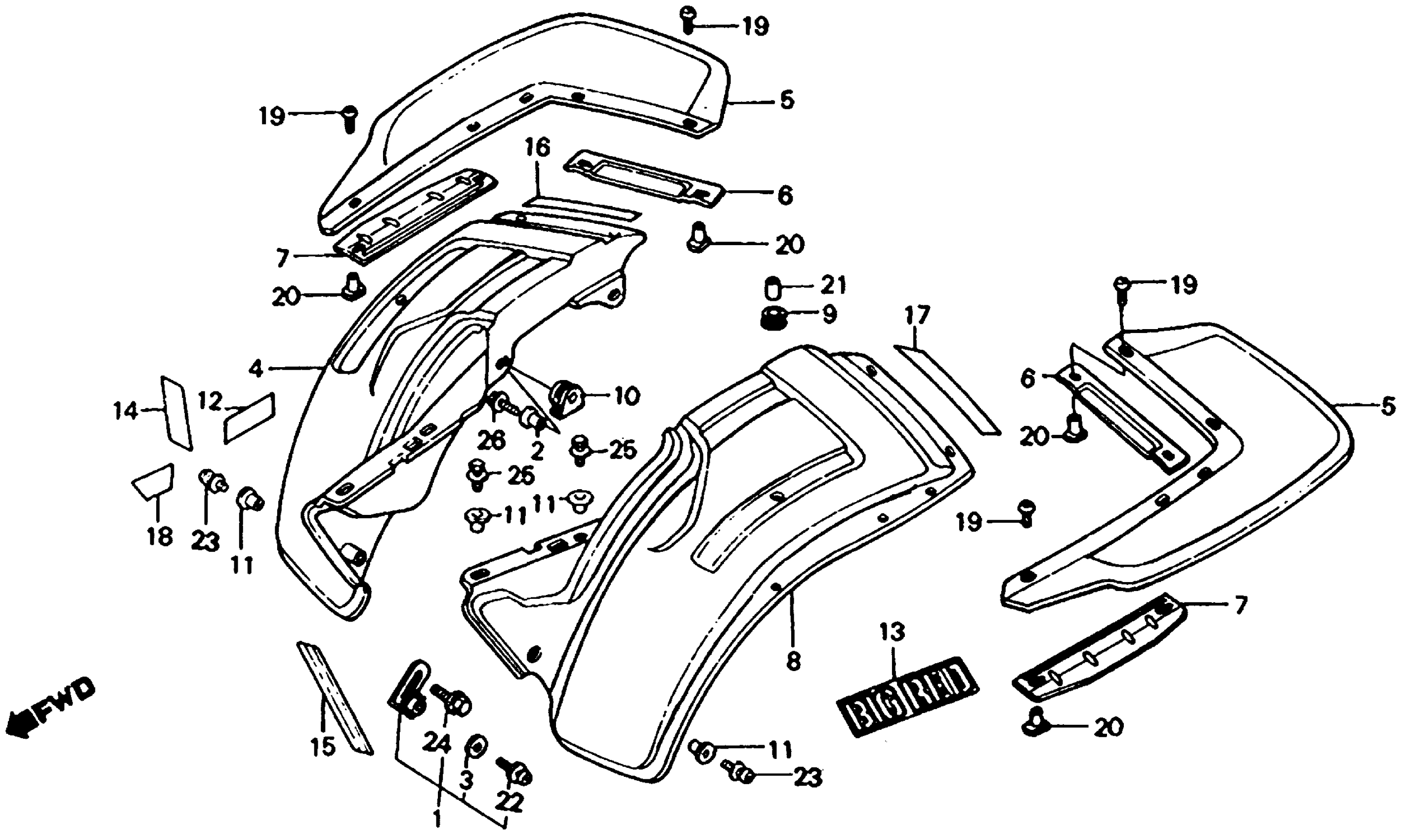

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 REAR FENDER Diagram

#

Description
Price

1

BOLT SET, RR. FENDER | (Optional).

50010-969-305

Unavailable

2

COLLAR, FENDER SETTING

61104-444-000

$7.61

3

WASHER (NOT AVAILABLE) | (Optional).

71979-538-940

Unavailable

4

FENDER, R. RR.

80100-958-684

Unavailable

5

SPLASH GUARD, RR. (NOT AVAILABLE)

80111-958-680

Unavailable

6

PLATE, RR. FENDER This part replaces 80112-VM3-000.

80112-VM3-680

Unavailable

7

PLATE, RR. FENDER SIDE (NOT AVAILABLE)

80113-958-680

Unavailable

8

FENDER, L. RR. *R109* (PASSION RED)

80150-958-682

Unavailable

9

RUBBER, RR. FENDER

80152-958-680

$5.14

10

GROMMET, RR. FENDER (NOT AVAILABLE)

80161-958-680

Unavailable

11

COLLAR

84706-415-000

$2.23

12

LABEL, R. SIDE (NOT AVAILABLE)

87121-969-000

Unavailable

13

LABEL, L. SIDE (NOT AVAILABLE)

87122-969-000

Unavailable

14

STRIPE, R. SIDE (NOT AVAILABLE)

87126-969-000

Unavailable

15

STRIPE, L. SIDE (NOT AVAILABLE)

87127-969-000

Unavailable

16

EMBLEM, R. RR. FENDER (NOT AVAILABLE)

87521-969-000

Unavailable

17

EMBLEM, L. RR. FENDER (NOT AVAILABLE)

87525-969-000

Unavailable

18

LABEL, TIRE CAUTION (NOT AVAILABLE)

87533-969-000

Unavailable

19

SCREW, TORUS (6X7)

90102-673-003

Unavailable

20

NUT, SPECIAL (6MM)

90302-958-680

Unavailable

21

COLLAR (8MM)

90324-449-000

Unavailable

22

SCREW-WASHER (6X10) | (Optional).

93892-06010-08

Unavailable

23

SCREW-WASHER (6X16)

93892-06016-08

$1.49

24

BOLT, FLANGE (6X12) | (Optional). This part replaces 95700-06012-08.

95701-06012-08

$1.67

24

BOLT, FLANGE (6X12) | (Optional).

95701-06012-08

$1.67

25

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

25

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

26

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

26

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
