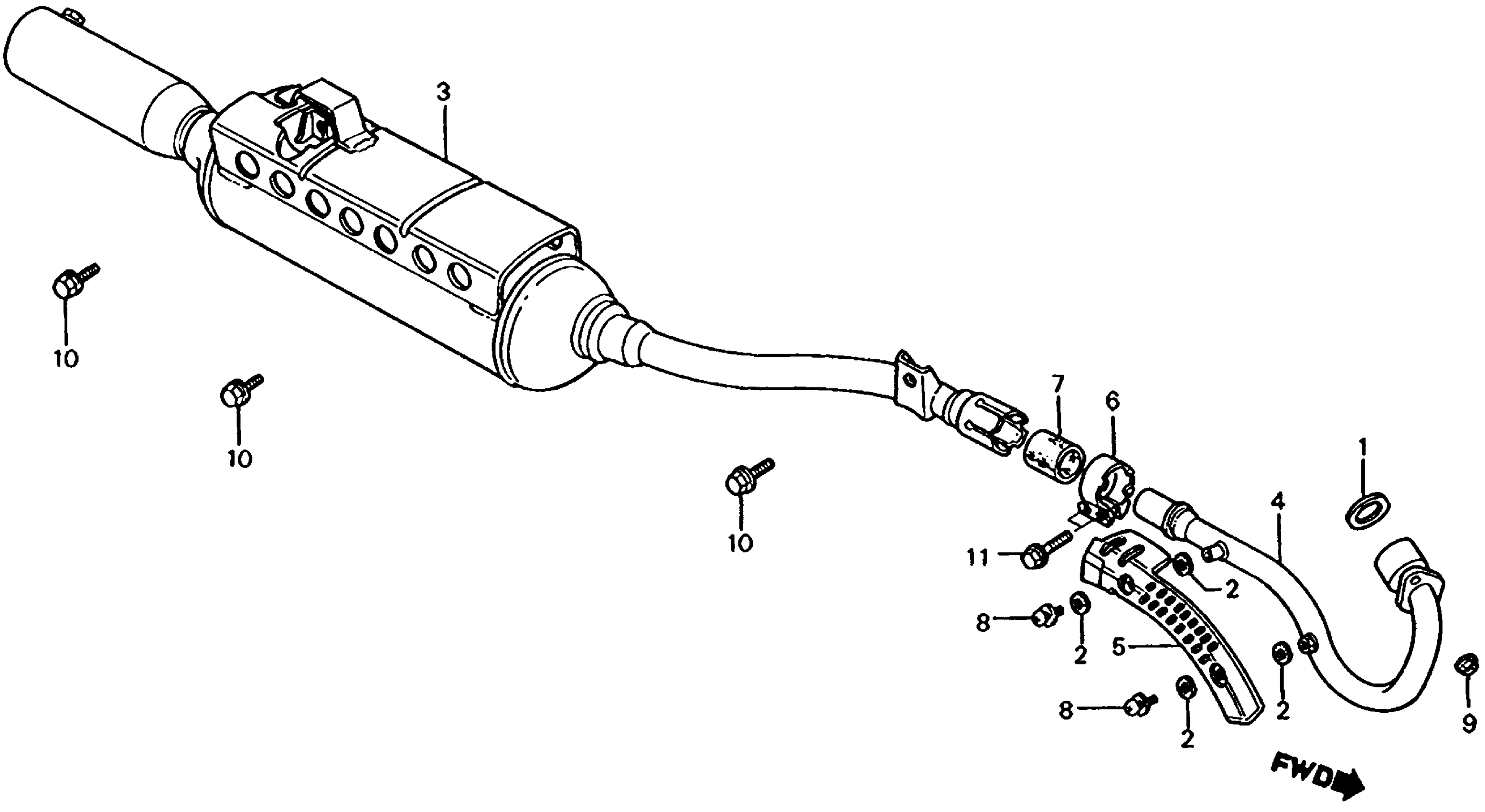

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 MUFFLER Diagram

GASKET, EX. PIPE

18291-MN5-650

$3.61

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.61

GASKET, PROTECTOR

18293-MCA-780

$4.63

GASKET, PROTECTOR This part replaces 18293-MN5-650.

18293-MCA-780

$4.63

GASKET, PROTECTOR This part replaces 18293-422-000.

18293-MCA-780

$4.63

MUFFLER

18310-VM3-003

Unavailable

PIPE, EX. (NOT AVAILABLE)

18320-VM3-003

Unavailable

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18321-VM4-003

Unavailable

BAND, MUFFLER This part replaces 18371-KA2-000.

18371-VM5-000

$20.12

BAND, MUFFLER

18371-VM5-000

$20.12

GASKET, MUFFLER

18391-958-306

$17.39

GASKET, MUFFLER This part replaces 18391-958-681.

18391-958-306

$17.39

SCREW-WASHER (6X10)

93891-06010-08

$1.35

NUT, FLANGE (6MM)

94050-06080

$0.60

BOLT, FLANGE (8X12) This part replaces 95700-08012-08.

95701-08012-08

$1.62

BOLT, FLANGE (8X12)

95701-08012-08

$1.62

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$1.94

BOLT, FLANGE (8X28)

95701-08028-08

$1.94
