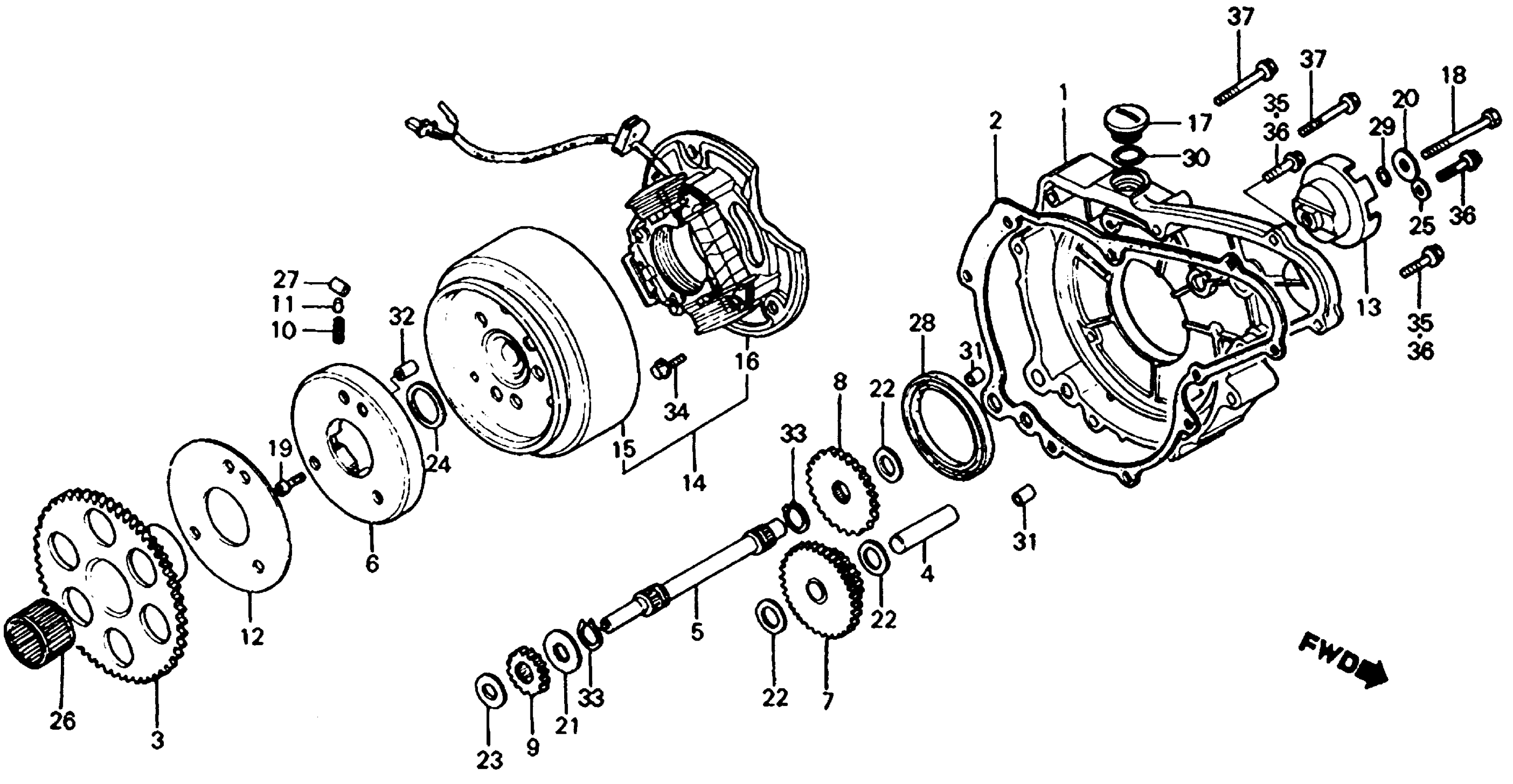

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-969-000

Unavailable

2

GASKET, L. CRANKCASE COVER This part replaces 11396-969-000.

11396-969-306

Unavailable

2

GASKET, L. CRANKCASE COVER

11396-969-306

Unavailable

3

GEAR, STARTER DRIVEN

28110-958-680

Unavailable

4

SHAFT A, IDLE

28115-958-680

Unavailable

5

SHAFT B, STARTER IDLE

28116-958-680

Unavailable

6

CLUTCH, STARTER (OUTER)

28120-426-000

Unavailable

7

GEAR A, STARTER IDLE (NOT AVAILABLE)

28120-958-680

Unavailable

8

GEAR B, STARTER IDLE (NOT AVAILABLE)

28123-958-680

Unavailable

9

GEAR C, STARTER IDLE

28124-958-680

Unavailable

10

SPRING, STARTER CLUTCH ROLLER

28125-426-000

$2.61

11

CAP, STARTER CLUTCH ROLLER SPRING

28126-323-000

$5.05

12

PLATE, STARTER CLUTCH SIDE

28128-958-680

Unavailable

13

PULLEY, RECOIL STARTER

28431-968-010

Unavailable

14

ALTERNATOR ASSY. (NOT AVAILABLE) This part replaces 31100-VM5-004.

31100-VM5-014

Unavailable

14

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-VM5-014

Unavailable

14

ALTERNATOR ASSY. (NOT AVAILABLE) This part replaces 31100-969-004.

31100-VM5-014

Unavailable

15

ROTOR

31110-VM5-004

Unavailable

15

ROTOR | Use up to Engine SN 6095953 This part replaces 31110-958-681.

31110-VM5-004

Unavailable

15

ROTOR This part replaces 31110-968-004.

31110-VM5-004

Unavailable

16

STATOR (DENSO) This part replaces 31120-VM5-004.

31120-VM5-014

Unavailable

16

STATOR (DENSO)

31120-VM5-014

Unavailable

16

STATOR (DENSO) This part replaces 31120-969-004.

31120-VM5-014

Unavailable

17

CAP, IGNITION TIMING

90081-958-680

Unavailable

18

BOLT (8MM)

90083-958-680

Unavailable

19

BOLT, SOCKET (6MM)

90085-413-781

$4.06

20

WASHER, ROTOR SETTING

90426-437-000

$6.57

21

PLATE, THRUST SPLINE

90429-958-681

Unavailable

22

WASHER, THRUST (12MM)

90452-166-600

$2.39

23

WASHER (10X21)

90452-187-000

$2.36

24

WASHER, THRUST (20MM)

90461-883-810

Unavailable

25

WASHER, SEALING (6.2X12X1.2) | Use up to Engine SN 6045969 This part replaces 90461-357-000.

90463-KRM-840

$1.49

25

WASHER A (6MM) | Use from Engine SN 6045970

90478-700-000

$1.49

26

BEARING, NEEDLE (20x26x17) (TOYO)

91021-689-902

Unavailable

27

ROLLER (10.2X11.5)

91101-377-000

$3.01

28

OIL SEAL (45X60X9) | Use up to Engine SN 6022212 This part replaces 91204-958-681.

91204-968-013

$20.47

28

OIL SEAL (45X60X9) | Use up to Engine SN 6022212 This part replaces 91204-958-682.

91204-968-013

$20.47

28

OIL SEAL (45X60X9) | Use up to Engine SN 6022212 This part replaces 91204-968-000.

91204-968-013

$20.47

28

OIL SEAL (45X60X9) | Use up to Engine SN 6070360 This part replaces 91204-968-003.

91204-968-013

$20.47

28

OIL SEAL (45X60X9)

91204-968-013

$20.47

29

O-RING (7.7X1.9) (NOK) This part replaces 91311-PA9-003.

91311-PA9-004

$3.11

29

O-RING (7.7X1.9) (NOK)

91311-PA9-004

$3.11

30

O-RING (18X2.4)

91310-PH3-003

$2.44

30

O-RING (18X2.4) This part replaces 91333-422-003.

91310-PH3-003

$2.44

31

PIN A, DOWEL (8X14)

94301-08140

$2.25

32

PIN C, DOWEL (8X14)

94303-08140

$2.14

33

CIRCLIP (OUTER) (15MM)

94510-15000

$1.49

34

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

34

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

35

BOLT, FLANGE (6X32) | Use from Engine SN 6070391 This part replaces 96000-06032-00.

96001-06032-00

$1.49

35

BOLT, FLANGE (6X32) | Use from Engine SN 6070391

96001-06032-00

$1.49

36

BOLT, FLANGE (6X35) | Use up to Engine SN 6070390 This part replaces 96000-06035-00.

96001-06035-00

$1.49

36

BOLT, FLANGE (6X35) | Use from Engine SN 6070391 This part replaces 96000-06035-00.

96001-06035-00

$1.49

36

BOLT, FLANGE (6X35) | Use up to Engine SN 6070390

96001-06035-00

$1.49

36

BOLT, FLANGE (6X35) | Use from Engine SN 6070391

96001-06035-00

$1.49

37

BOLT, FLANGE (6X80) This part replaces 96000-06080-00.

96001-06080-07

$2.23

37

BOLT, FLANGE (6X80) This part replaces 96000-06080-07.

96001-06080-07

$2.23

37

BOLT, FLANGE (6X80)

96001-06080-00

$2.21

37

BOLT, FLANGE (6X80)

96001-06080-07

$2.23
