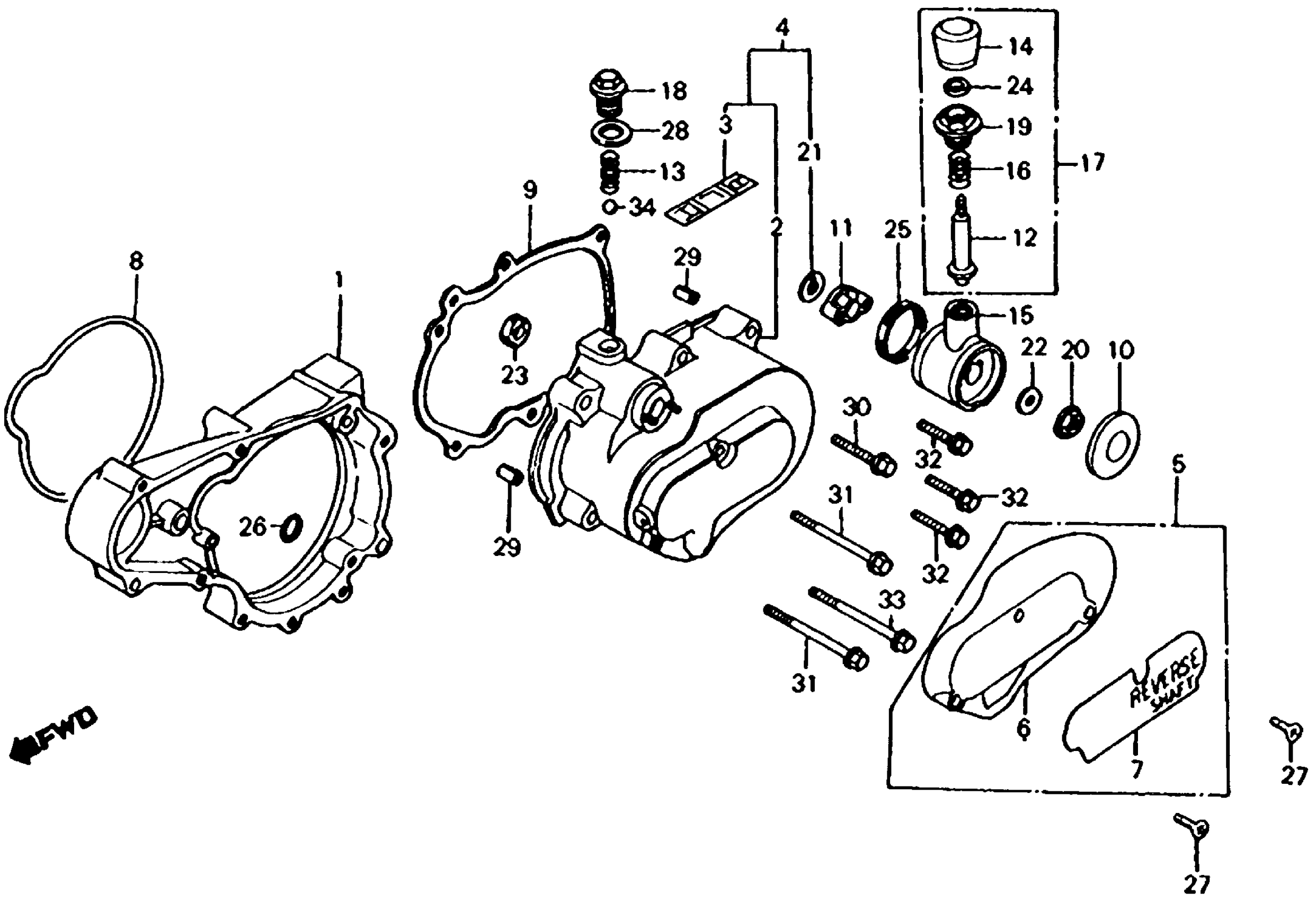

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 LEFT COVER SPACER + SUB-TRANS COVER Diagram

#

Description
Price

1

SPACER, L. COVER

11210-969-010

Unavailable

2

COVER SET, SUB-TRANSMISSION (NOT AVAILABLE) | Use up to Engine SN 6027035 This part replaces 11370-969-000.

11375-969-000

Unavailable

2

COVER SET, SUB-TRANSMISSION (NOT AVAILABLE) | Use up to Engine SN 6027035

11375-969-000

Unavailable

3

EMBLEM, SUB-TRANSMISSION

11372-969-000

Unavailable

4

COVER SET, SUB-TRANSMISSION (NOT AVAILABLE) | Use from Engine SN 6027036

11375-969-000

Unavailable

5

PROTECTOR ASSY., SUB-TRANSMISSION COVER (NOT AVAILABLE)

11380-969-000

Unavailable

6

PROTECTOR, SUB-TRANSMISSION COVER (NOT AVAILABLE)

11381-969-000

Unavailable

7

EMBLEM, PROTECTOR (NOT AVAILABLE)

11383-969-300

Unavailable

8

O-RING, L. COVER

11395-969-000

Unavailable

9

GASKET, SUB-TRANSMISSION COVER This part replaces 11398-969-000.

11398-969-306

Unavailable

9

GASKET, SUB-TRANSMISSION COVER

11398-969-306

Unavailable

10

CAP, PROTECTOR | Use up to Engine SN 6090043

24723-969-003

Unavailable

10

CAP, PROTECTOR | Use from Engine SN 6090044

24723-969-023

Unavailable

11

CAM, SUB-TRANSMISSION LEVER (NOT AVAILABLE)

24724-969-000

Unavailable

12

SHAFT, SUB-TRANSMISSION LEVER

24725-969-000

Unavailable

13

SPRING, GEARSHIFT DRUM SETTING (NOT AVAILABLE)

24726-969-000

Unavailable

14

KNOB, SUB-TRANSMISSION LEVER (NOT AVAILABLE) | Use up to Engine SN 6063919 This part replaces 24727-969-003.

24727-969-013

$7.38

14

KNOB, SUB-TRANSMISSION LEVER (NOT AVAILABLE) | Use from Engine SN 6063920

24727-969-013

$7.38

15

CAP, SUB-TRANSMISSION

24728-969-000

Unavailable

16

SPRING, SUB-TRANSMISSION LEVER (NOT AVAILABLE)

24730-969-000

Unavailable

17

LEVER ASSY., SUB-TRANSMISSION (NOT AVAILABLE) | Use up to Engine SN 6063919 This part replaces 24740-969-000.

24740-969-010

Unavailable

17

LEVER ASSY., SUB-TRANSMISSION (NOT AVAILABLE) | Use from Engine SN 6063920

24740-969-010

Unavailable

18

BOLT, BRAKE DRUM SETTING

90026-969-000

Unavailable

19

NUT, SUB-TRANSMISSION LEVER (NOT AVAILABLE)

90235-969-000

Unavailable

20

NUT (8MM) (NOT AVAILABLE)

90236-969-000

Unavailable

21

WASHER (10MM) (NOT AVAILABLE) | Use up to Engine SN 6027035 This part replaces 90401-969-000.

90401-969-010

Unavailable

21

WASHER (10MM) (NOT AVAILABLE) | Use from Engine SN 6027036

90401-969-010

Unavailable

22

WASHER, CONICAL SPRING (8MM)

90402-969-000

Unavailable

23

OIL SEAL (14X22X5) (NOK) This part replaces 91201-969-003.

91203-KA4-771

$3.81

23

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

23

OIL SEAL (14X22X5)

91203-KK3-830

$3.81

24

DUST SEAL (8X14X4) (NOT AVAILABLE)

91202-VM6-003

Unavailable

24

DUST SEAL (8X14X4) (NOT AVAILABLE) This part replaces 91251-969-003.

91202-VM6-003

Unavailable

24

DUST SEAL (8X14X4) (NOT AVAILABLE) This part replaces 91251-969-005.

91202-VM6-003

Unavailable

25

DUST SEAL (30X36X5) (NOT AVAILABLE) This part replaces 91252-969-003.

91252-969-005

Unavailable

25

DUST SEAL (30X36X5) (NOT AVAILABLE)

91252-969-005

Unavailable

26

O-RING (10.7X1.5) (NOK) (NOT AVAILABLE) This part replaces 91303-958-681.

91303-958-682

Unavailable

26

O-RING (10.7X1.5) (NOK) (NOT AVAILABLE)

91303-958-682

Unavailable

27

SCREW, PAN (5X20)

93500-05020-0G

$1.49

28

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

29

PIN A, DOWEL (8X14)

94301-08140

$2.25

30

BOLT, FLANGE (8X50) This part replaces 95700-08050-00.

95701-08050-00

$2.28

30

BOLT, FLANGE (8X50)

95701-08050-00

$2.28

31

BOLT, FLANGE (8X80) This part replaces 95700-08080-00.

95701-08080-00

$1.64

31

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

32

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

32

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

33

BOLT, FLANGE (6X80) This part replaces 96000-06080-00.

96001-06080-07

$2.23

33

BOLT, FLANGE (6X80) This part replaces 96000-06080-07.

96001-06080-07

$2.23

33

BOLT, FLANGE (6X80)

96001-06080-00

$2.21

33

BOLT, FLANGE (6X80)

96001-06080-07

$2.23

34

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
