- ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032
HANDLEBAR + TOP BRIDGE + KEY SET

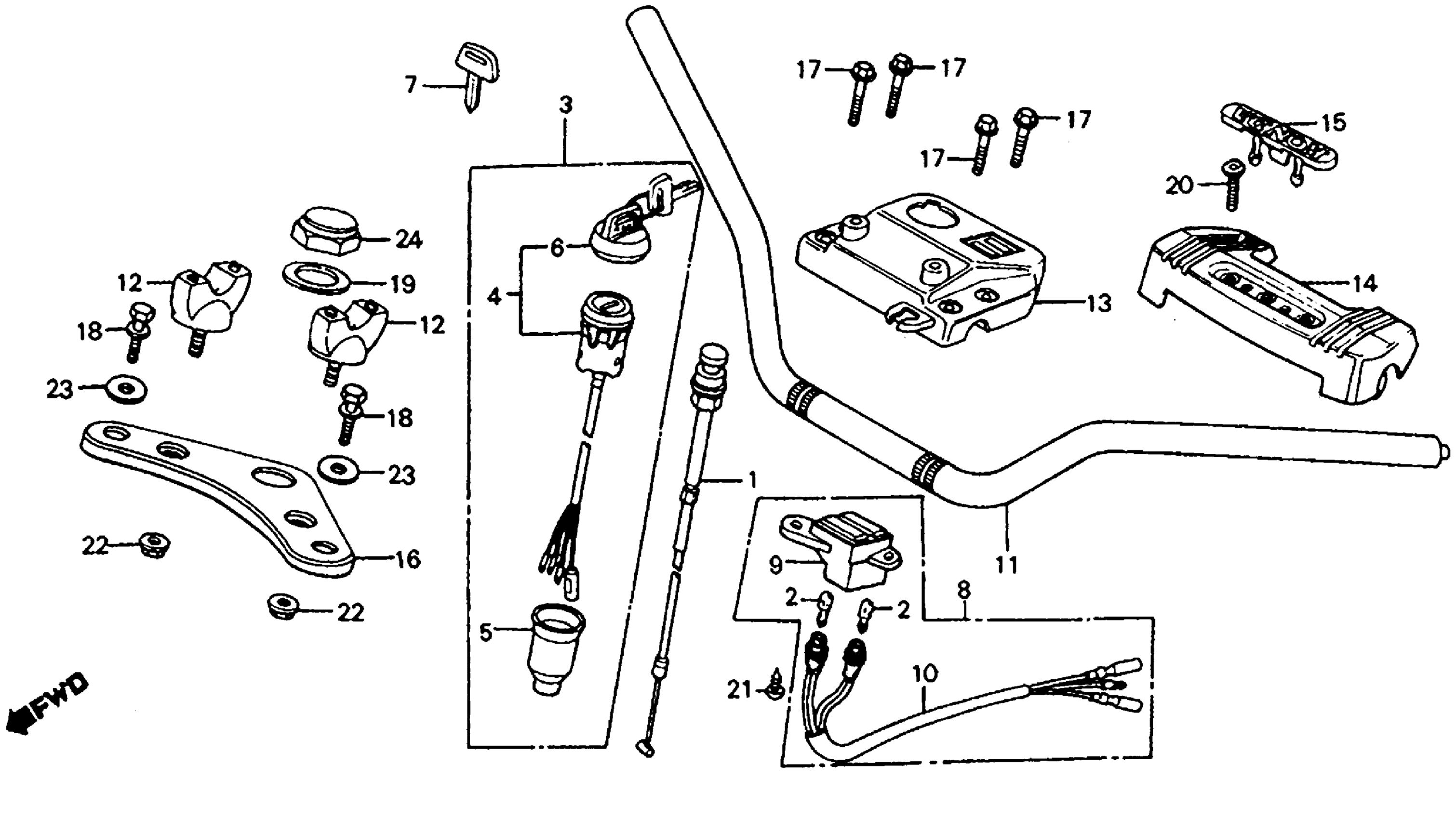

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 HANDLEBAR + TOP BRIDGE + KEY SET Diagram
#
Description
Price
1
CABLE, CHOKE
17950-VM3-000
Unavailable
3
LOCK SET
35010-958-680
Unavailable
4
LOCK SET
35010-958-680
Unavailable
4
LOCK SET This part replaces 35100-958-681.
35010-958-680
Unavailable
5
COVER, COMBINATION SWITCH (NOT AVAILABLE)
35105-958-680
Unavailable
6
CAP, COMBINATION SWITCH KEY
35113-958-681
Unavailable
7
KEY,BLANK (NO.2) | (Optional). This part replaces 35122-086-811.
35122-GW0-731
Unavailable
8
INDICATOR ASSY., NEUTRAL REVERSE
38400-969-003
Unavailable
9
CASE (NOT AVAILABLE)
38401-969-003
Unavailable
10
WIRE (NOT AVAILABLE)
38402-969-003
Unavailable
11
HANDLEBAR (NOT AVAILABLE)
53100-958-681
Unavailable
12
HOLDER, HANDLE (LOWER) This part replaces 53130-HA7-670.
53130-HB9-000
Unavailable
12
HOLDER, HANDLE (LOWER) This part replaces 53130-958-000.
53130-HB9-000
Unavailable
13
HOLDER, HANDLEBAR (UPPER)
53131-969-000
Unavailable
14
COVER, HANDLEBAR (NOT AVAILABLE)
53205-958-682
Unavailable
15
LABEL, HANDLEBAR COVER (NOT AVAILABLE)
53206-958-003
Unavailable
16
BRIDGE, FORK TOP
53231-958-680
Unavailable
18
BOLT-WASHER (12X25) (NOT AVAILABLE) | Use up to Frame SN EC319307
90115-958-003
Unavailable
18
BOLT-WASHER (12X25) | Use from Frame SN EC319308
90115-958-681
Unavailable
19
WASHER, STEERING STEM
90503-958-000
Unavailable
