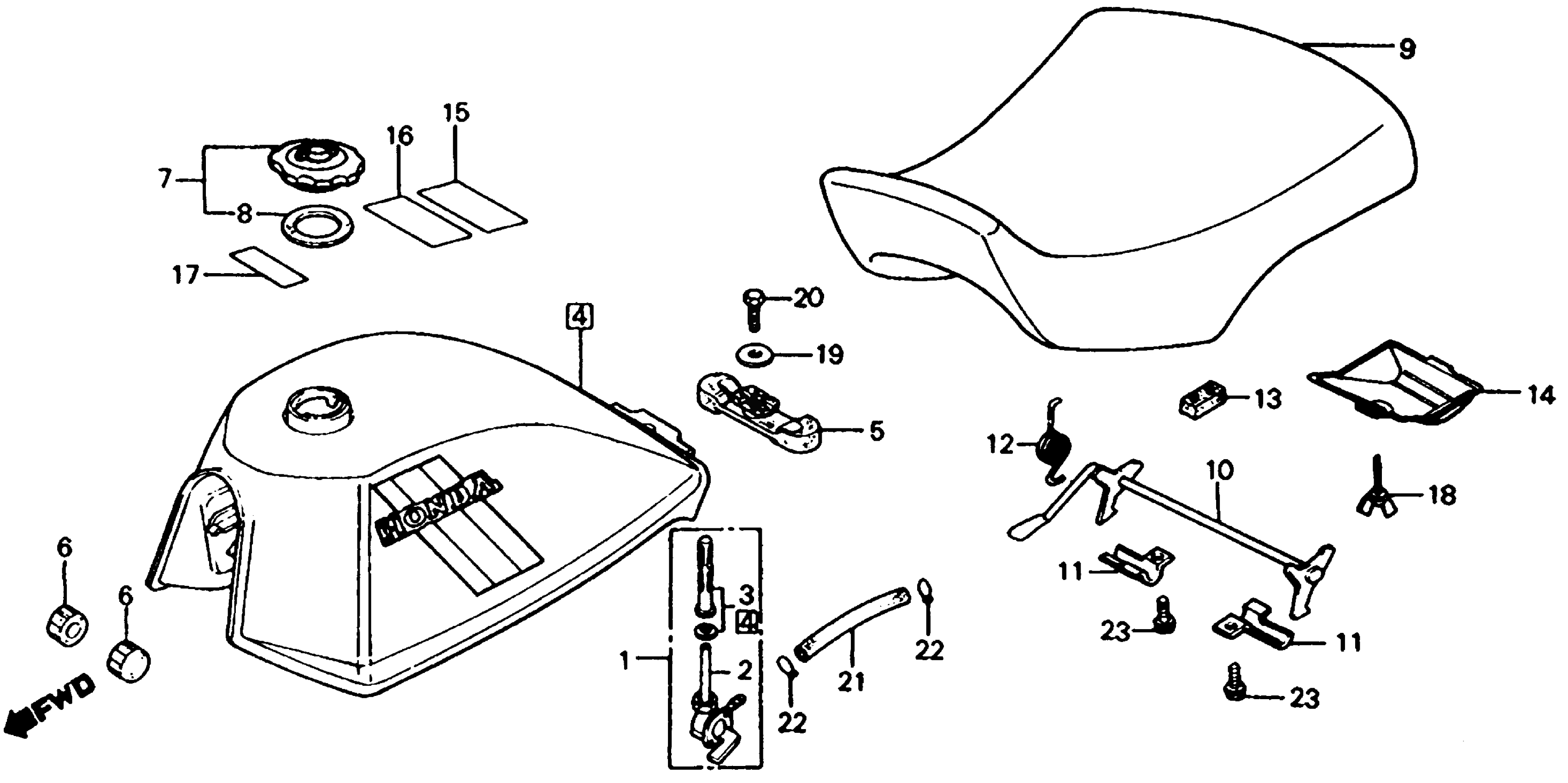

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 FUEL TANK + SEAT Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-149-025

$74.04

2

BODY SET, PETCOCK (HONDA KIKAKI)

16951-149-025

Unavailable

3

SCREEN SET, FUEL STRAINER

16952-GB2-721

Unavailable

3

SCREEN SET, FUEL STRAINER This part replaces 16952-124-830.

16952-GB2-721

Unavailable

4

TANK SET, FUEL *R109* (PASSION RED) (NOT AVAILABLE)

175A1-969-000ZA

Unavailable

5

RUBBER, RR. TANK

17509-437-000

Unavailable

6

RUBBER, FR. TANK

17611-437-000

$6.63

7

FUEL FILL CAP (TOYOSHA) This part replaces 17620-HC3-771.

17620-HC3-505

Unavailable

7

FUEL FILL CAP (TOYOSHA) This part replaces 17620-VM5-000.

17620-HC3-505

Unavailable

7

FUEL FILL CAP (TOYOSHA) This part replaces 17620-VM6-013.

17620-HC3-505

Unavailable

7

FUEL FILL CAP (TOYOSHA) This part replaces 17620-968-003.

17620-HC3-505

Unavailable

8

GASKET This part replaces 17631-VM6-300.

17631-899-010

$6.32

8

GASKET This part replaces 17631-899-000.

17631-899-010

$6.32

8

GASKET This part replaces 17631-958-680.

17631-899-010

$6.32

9

SEAT (NOT AVAILABLE) This part replaces 77100-VM3-000.

77100-VM3-681

Unavailable

10

LEVER, SEAT LOCK

77105-VM3-000

Unavailable

11

BRACKET, LOCK LEVER

77106-958-000

Unavailable

12

SPRING, SEAT LOCK

77107-958-000

$4.30

13

RUBBER, SEAT SETTING

77204-292-000

$9.11

14

HOLDER, TOOL (NOT AVAILABLE)

83501-958-680

Unavailable

15

LABEL, DECOMPRESSION (NOT AVAILABLE)

87135-958-680

Unavailable

16

LABEL, USE CAUTION *NH1* (BLACK) (NOT AVAILABLE) This part replaces 87504-130-720ZB.

87504-130-720ZA

Unavailable

17

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-181-760.

87560-181-760ZE

$3.95

17

LABEL, DRIVE CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87560-181-760ZD

Unavailable

17

MARK, DRIVE CAUTION (TYPEB)

87560-181-760ZE

$3.95

18

BOLT, WING This part replaces 90105-958-680.

90105-958-405

Unavailable

19

WASHER, EX. DUCT (NOT AVAILABLE)

90504-567-000

Unavailable

20

BOLT, HEX. (6X12) This part replaces 92000-06012-0H.

92101-06012-0H

$1.49

20

BOLT, HEX. (6X12) This part replaces 92000-06012-08.

92101-06012-0H

$1.49

20

BOLT, HEX. (6X20)

92101-06012-0H

$1.49

21

BULK HOSE, FUEL (4.5X3000) (4.5X155)

95001-45003-60M

$36.67

22

CLIP, TUBE (B8)

95002-02080

$1.80

23

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

23

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
