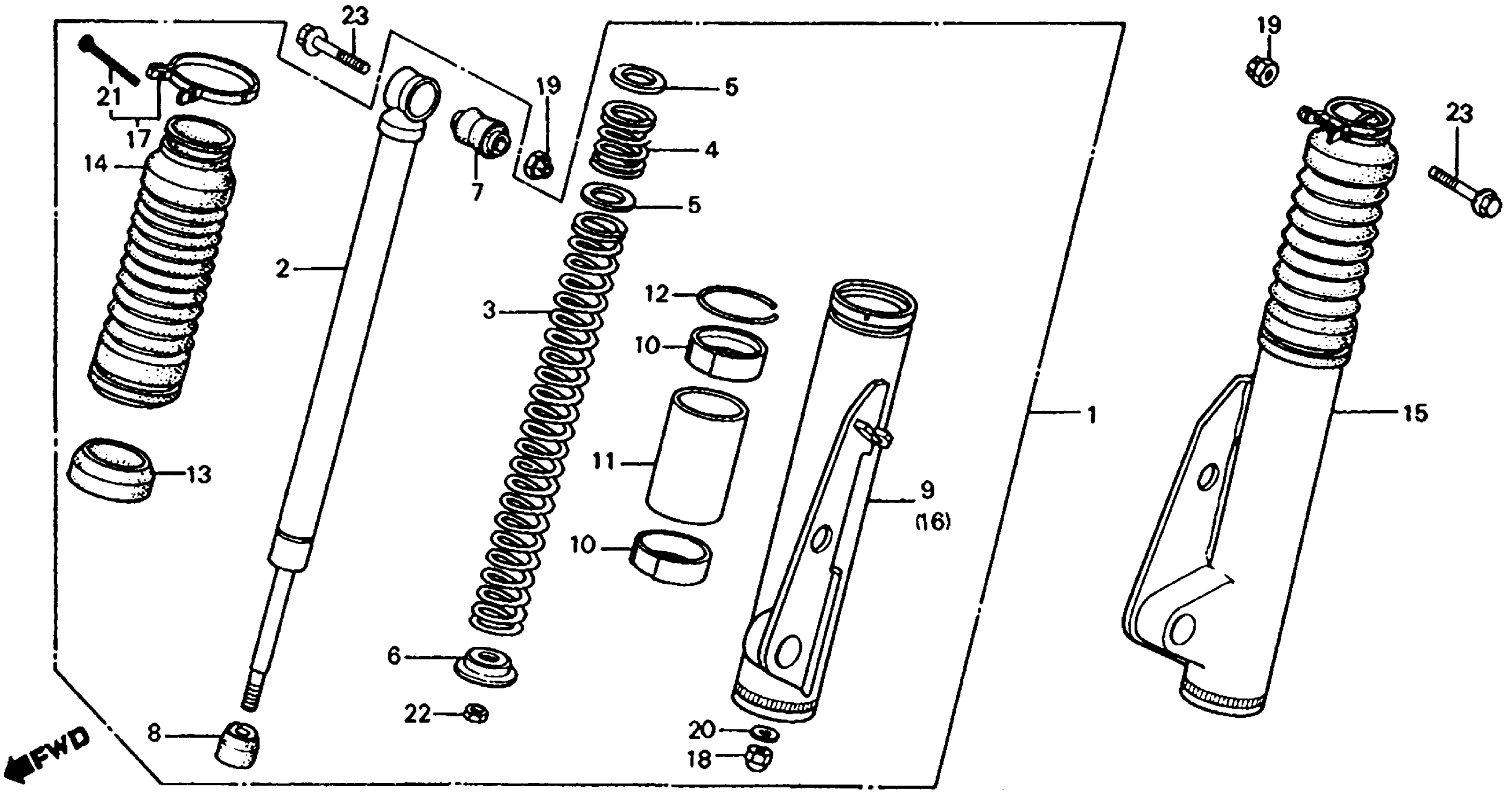

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 FRONT SHOCK ABSORBER Diagram

#

Description
Price

1

CUSHION ASSY., R. FR. FORK (NOT AVAILABLE) | Use up to Frame SN EC385000 This part replaces 51200-969-003.

51200-969-013

Unavailable

1

CUSHION ASSY., R. FR. FORK (NOT AVAILABLE)

51200-969-013

Unavailable

2

DAMPER, FR.

51210-958-305

Unavailable

2

DAMPER, FR. This part replaces 51210-958-681.

51210-958-305

Unavailable

3

SPRING A, FR. FORK (NOT AVAILABLE)

51211-958-681

Unavailable

4

SPRING B, FR. FORK (NOT AVAILABLE)

51212-958-681

Unavailable

5

SEAT, SPRING (NOT AVAILABLE)

51213-958-681

Unavailable

6

SEAT, STOPPER SPRING

51215-958-681

Unavailable

7

BUSH, SHOCK ABSORBER

51216-958-681

Unavailable

8

RUBBER, STOPPER (NOT AVAILABLE)

51217-958-681

Unavailable

9

CASE, R. (LOWER) | Use up to Frame SN EC385000 This part replaces 51220-969-003.

51220-969-013

Unavailable

9

CASE, R. (LOWER) | Use up to Frame SN EC385000

51220-969-013

Unavailable

9

CASE, R. (LOWER)

51220-969-013

Unavailable

10

GUIDE, FR. FORK | Use up to Frame SN EC385000 This part replaces 51221-958-682.

51221-958-683

$10.34

10

GUIDE, FR. FORK | Use up to Frame SN EC385000

51221-958-683

$10.34

10

GUIDE, FR. FORK

51221-958-683

$10.34

11

COLLAR, DISTANCE

51222-958-681

Unavailable

12

RING, STOPPER

51223-958-681

Unavailable

13

DUST SEAL

51224-958-681

Unavailable

14

BOOT, FR. FORK

51231-958-681

$45.53

15

SHOCK ABSORBER ASSY., L. (NOT AVAILABLE) | Use up to Frame SN EC385000 This part replaces 51300-958-685.

51300-958-686

Unavailable

15

SHOCK ABSORBER ASSY., L. (NOT AVAILABLE)

51300-958-686

Unavailable

16

CASE, L. (LOWER) (NOT AVAILABLE) | Use up to Frame SN EC385000 This part replaces 51320-958-685.

51320-958-686

Unavailable

16

CASE, L. (LOWER) (NOT AVAILABLE)

51320-958-686

Unavailable

17

BAND, FR. FORK BOOT

51612-430-010

$8.11

18

NUT, U (8MM) (NOT AVAILABLE)

90301-958-681

Unavailable

19

NUT, SELF-LOCK (10MM)

90351-268-000

$2.87

20

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

21

SCREW, PAN (5X32)

93500-05032-0A

$1.49

22

NUT, HEX. (8MM)

94030-08000

$1.49

23

BOLT, FLANGE (10X45) This part replaces 95800-10045-00.

95801-10045-00

$2.16

23

BOLT, FLANGE (10X45)

95801-10045-00

$2.16
