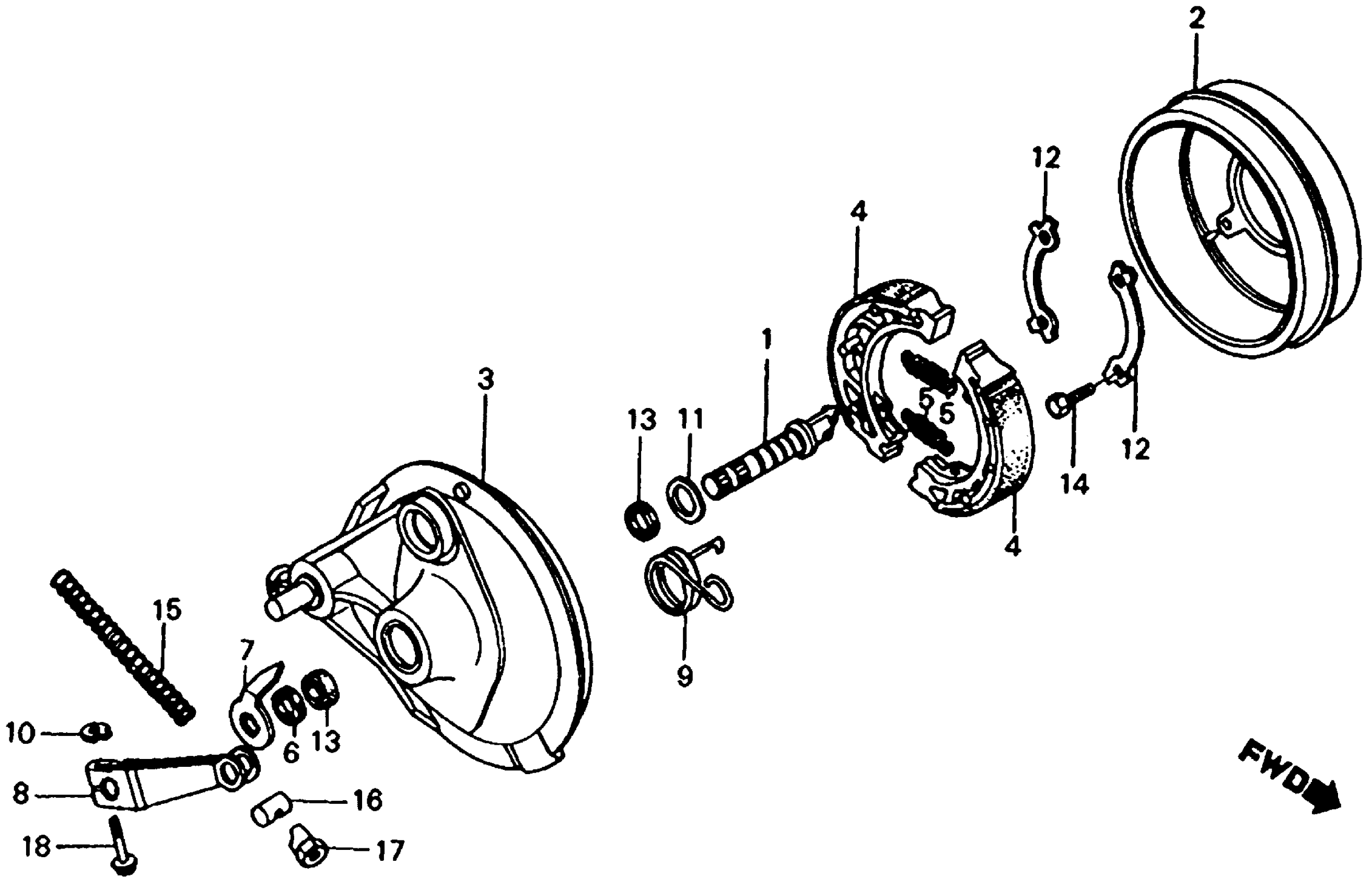

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 FRONT BRAKE PANEL Diagram

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$24.89

SHOE SET, BRAKE (JB) This part replaces 06450-096-405.

06450-178-932

$24.89

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

SHOE SET, BRAKE (JB) This part replaces 451A2-096-305.

06450-178-932

$24.89

CAM, RR. BRAKE

43141-400-010

$23.52

DRUM, FR. BRAKE | Use up to Frame SN EC346392 This part replaces 44602-969-000.

44602-969-010

Unavailable

DRUM, FR. BRAKE

44602-969-010

Unavailable

PANEL, FR. BRAKE (NOT AVAILABLE)

45010-VM4-680

Unavailable

PANEL, FR. BRAKE (NOT AVAILABLE) This part replaces 45010-969-010.

45010-VM4-680

Unavailable

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

SHOE SET, BRAKE (JB) This part replaces 45120-GAG-003.

06450-178-932

$24.89

SHOE SET, BRAKE (JB) This part replaces 45120-096-651.

06450-178-932

$24.89

SPRING, BRAKE SHOE

45133-028-000

$2.03

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

INDICATOR, FR. BRAKE

45145-VM4-680

Unavailable

INDICATOR, FR. BRAKE This part replaces 45145-969-000.

45145-VM4-680

Unavailable

ARM, FR. BRAKE (NOT AVAILABLE)

45410-958-670

Unavailable

SPRING, FR. BRAKE ARM RETURN

45435-969-000

Unavailable

NUT, FR. BRAKE ARM SETTING

45436-001-000

$1.80

WASHER (14.2MM)

90451-115-000

$2.92

WASHER, TONGUED (NOT AVAILABLE)

90514-VM3-000

Unavailable

OIL SEAL (14X20X4) (NIPPON OIL-SEAL)

91208-611-005

$4.35

BOLT, HEX. (8X20) This part replaces 92000-08020-0H.

92101-08020-0H

$1.77

BOLT, HEX. (8X20)

92101-08020-0H

$1.77

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
