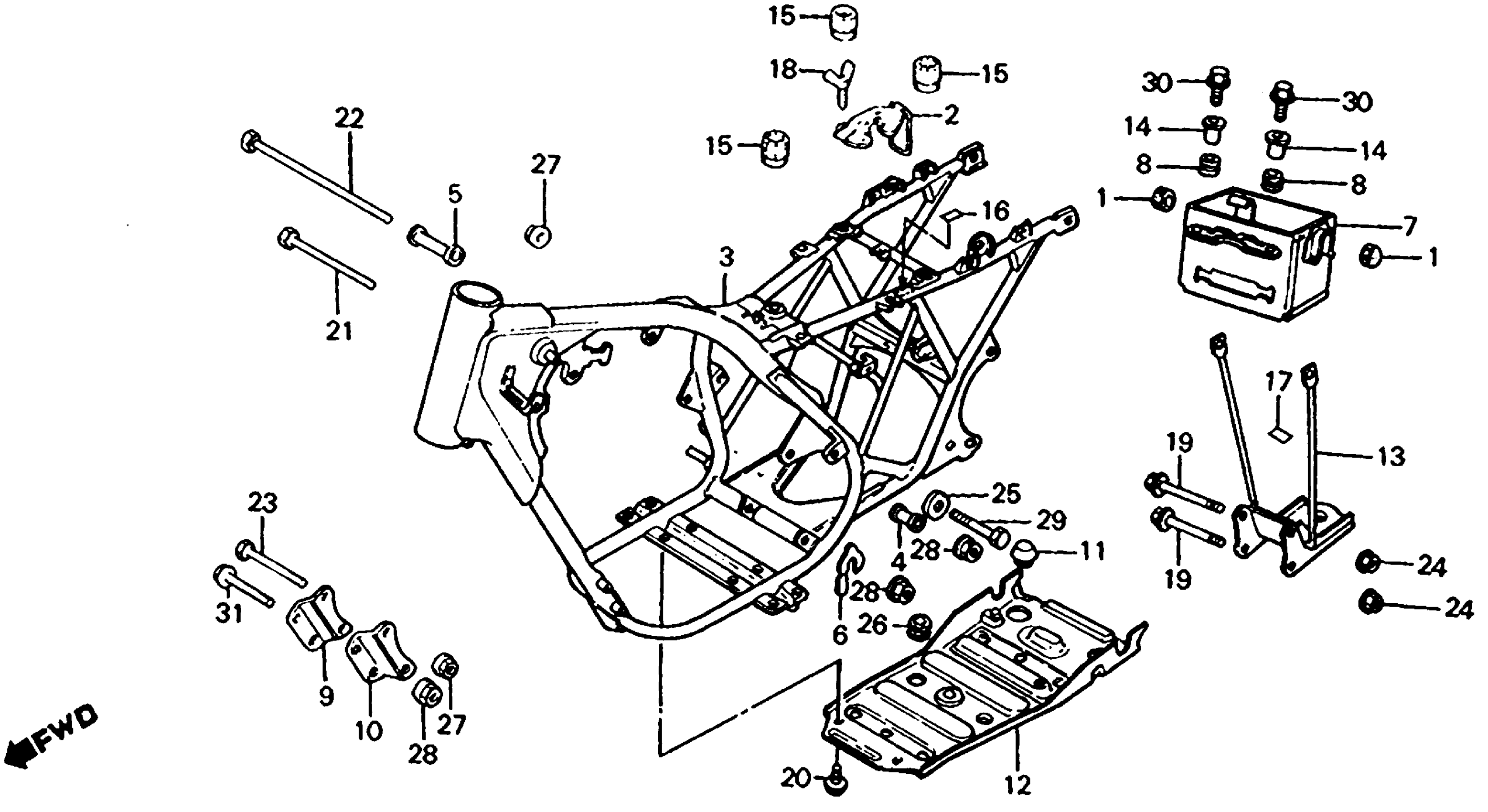

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 FRAME Diagram

#

Description
Price

1

RUBBER, FR. TANK

17611-437-000

$6.63

2

HOLDER, BATTERY BOX (NOT AVAILABLE)

31512-958-680

Unavailable

3

FRAME

50100-969-000

Unavailable

4

COLLAR, L. ENGINE MOUNTING (NOT AVAILABLE)

50250-958-680

Unavailable

5

COLLAR, R. ENGINE MOUNTING (NOT AVAILABLE)

50252-958-680

Unavailable

6

WASHER, ENGINE HANGER (LOWER) (NOT AVAILABLE)

50253-958-680

Unavailable

7

BOX, BATTERY

50325-969-000

Unavailable

8

RUBBER, BATTERY BOX MOUNTING (NOT AVAILABLE)

50329-968-000

Unavailable

9

HANGER, R. ENGINE

50351-958-680

Unavailable

10

HANGER, L. ENGINE

50352-958-680

Unavailable

11

RUBBER A, STOPPER

50352-969-000

Unavailable

12

PLATE, ENGINE PROTECTOR

50355-969-000

Unavailable

13

HITCH, TRAILER

50810-969-000

Unavailable

14

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

14

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

14

COLLAR, RR. FENDER

61105-428-000

Unavailable

15

RUBBER, SEAT SETTING

77207-HA0-000

$7.14

15

RUBBER, SEAT SETTING This part replaces 77207-958-670.

77207-HA0-000

$7.14

16

LABEL, MAIN FUSE (10A) (NOT AVAILABLE)

87136-969-000

Unavailable

17

LABEL, TRAILER HITCH (NOT AVAILABLE)

87508-958-680

Unavailable

18

BOLT, WING This part replaces 90105-958-680.

90105-958-405

Unavailable

19

BOLT, FLANGE (10X90)

90107-969-000

Unavailable

20

BOLT, FLANGE (6X12)

90118-958-003

$3.24

21

BOLT, HEX. (10X115)

90125-958-000

Unavailable

22

BOLT, HEX. (10X240)

90135-958-000

$12.48

23

BOLT, HEX. (8X85)

90157-437-000

Unavailable

24

NUT, AXLE (10MM)

90304-GA6-003

$2.89

25

WASHER, PLAIN (8.5X22X2.3)

90509-642-000

$6.84

26

RUBBER, CONTROL BOX

90852-898-000

$4.03

27

NUT, FLANGE (8MM)

94050-08000

$1.49

28

NUT, FLANGE (10MM)

94050-10000

$1.59

29

BOLT, HEX. (8X60) This part replaces 95300-08060-00.

95301-08060-00

$1.49

30

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

30

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

31

BOLT, FLANGE (10X80) This part replaces 95800-10080-00.

95801-10080-00

$2.92

31

BOLT, FLANGE (10X80)

95801-10080-00

$2.92
