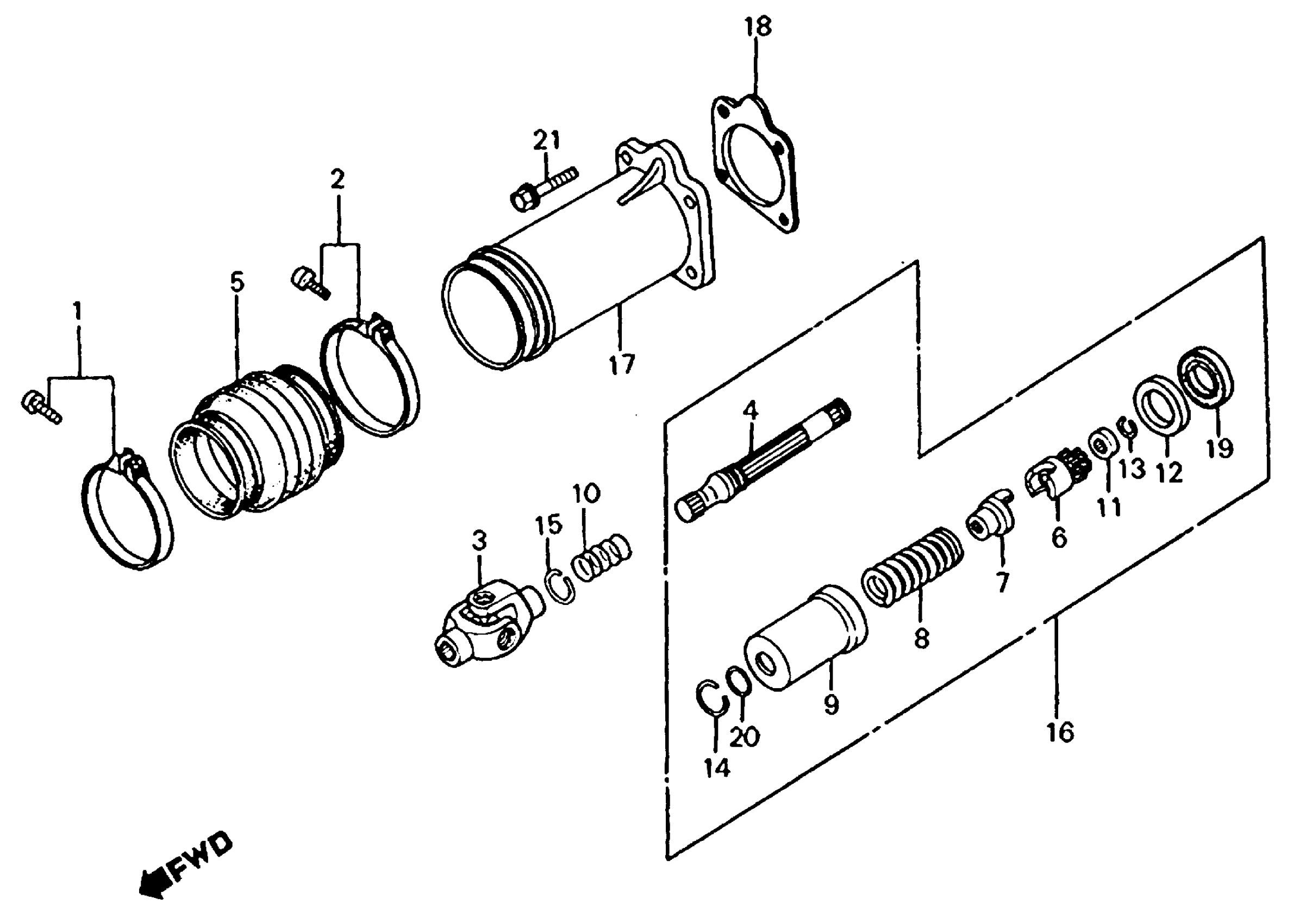

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 DRIVE SHAFT Diagram

#

Description
Price

1

BAND, AIR CLEANER CONNECTING TUBE (74) This part replaces 17255-969-000.

95018-74250

$6.78

1

BAND, AIR CLEANER CONNECTING TUBE (74) This part replaces 90652-GHB-800.

95018-74250

$6.78

1

BAND (74)

95018-74250

$6.78

2

BAND, BOOT JOINT

17256-HC4-000

$13.99

2

BAND, BOOT JOINT This part replaces 17256-969-000.

17256-HC4-000

$13.99

3

JOINT, YOKE

40200-969-000

Unavailable

4

SHAFT, DRIVE (NOT AVAILABLE)

40201-969-003

Unavailable

5

BOOT, JOINT (NOT AVAILABLE)

40207-969-000

Unavailable

6

CAM, DAMPER (NOT AVAILABLE)

40211-ME4-000

Unavailable

7

LIFTER, DAMPER

40212-ME5-000

Unavailable

8

SPRING, DAMPER CAM

40213-ME5-000

Unavailable

9

COVER, DAMPER

40214-ME4-000

Unavailable

10

SPRING, DRIVESHAFT

40215-969-000

Unavailable

11

RING, STOPPER This part replaces 40216-ME5-000.

40216-ME5-020

Unavailable

11

RING, STOPPER This part replaces 40216-ME5-010.

40216-ME5-020

Unavailable

11

RING, STOPPER

40216-ME5-020

Unavailable

11

RING, STOPPER This part replaces 40216-969-000.

40216-ME5-020

Unavailable

12

GUIDE, OIL SEAL (NOT AVAILABLE)

40217-ME4-000

Unavailable

13

RING, SPRING STOPPER

40218-ME5-000

Unavailable

14

RING, DAMPER COVER

40220-ME5-000

Unavailable

15

RING, STOPPER

40221-ME4-000

$4.53

16

SHAFT ASSY., DRIVE

40250-969-000

Unavailable

17

COVER, DRIVESHAFT

40520-969-000

Unavailable

18

GASKET, DRIVESHAFT COVER (NOT AVAILABLE)

40521-969-000

Unavailable

19

OIL SEAL (43X52X7)

91271-ME4-003

$7.03

19

OIL SEAL (43X52X7) This part replaces 91271-ME4-004.

91271-ME4-003

$7.03

20

O-RING (18X1.9)

91361-ME5-003

$3.76

20

O-RING (18X1.9) This part replaces 91361-ME5-004.

91361-ME5-003

$3.76

21

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

21

BOLT, FLANGE (6X25) This part replaces 95718-06025-00.

95701-06025-00

$1.80
