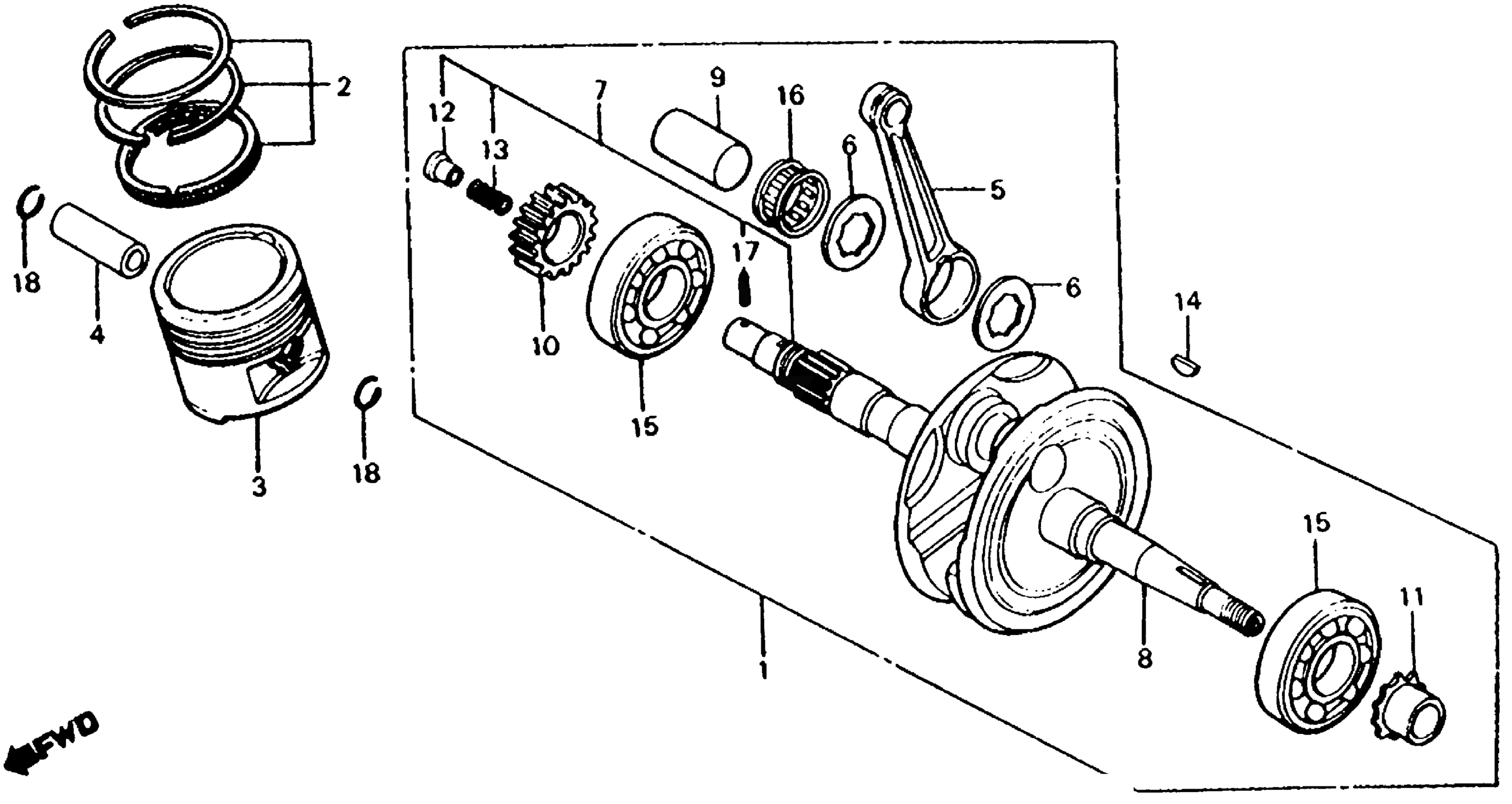

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT

13000-958-681

Unavailable

2

RING SET, PISTON (STD)

13011-958-671

Unavailable

2

RING SET, PISTON (STD) This part replaces 13011-958-672.

13011-958-671

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional).

13012-958-671

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13012-958-672.

13012-958-671

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13013-958-671

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13013-958-672.

13013-958-671

Unavailable

3

PISTON (STD)

13101-958-671

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-958-670

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-958-670

Unavailable

4

PIN, PISTON

13111-425-000

$21.65

5

ROD, CONNECTING

13202-427-300

Unavailable

6

PLATE, CONNECTING ROD SIDE

13202-958-300

$12.02

7

CRANKSHAFT, R.

13312-958-335

Unavailable

8

CRANKSHAFT, L.

13321-958-680

Unavailable

9

PIN, CRANK

13381-HF1-670

Unavailable

9

PIN, CRANK This part replaces 13381-383-300.

13381-HF1-670

Unavailable

10

GEAR, OIL PUMP DRIVE

13411-958-300

Unavailable

11

SPROCKET, TIMING (16T) This part replaces 14311-107-000.

14311-958-000

$41.06

11

SPROCKET, TIMING (16T)

14311-958-000

$41.06

12

THROUGH, OIL

15441-958-000

Unavailable

13

SPRING, OIL THROUGH

15446-958-000

Unavailable

14

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

14

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

14

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

15

BEARING, RADIAL BALL (63/28) This part replaces 91001-KY7-003.

91009-HC0-003

$31.43

15

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-003.

91009-HC0-003

$31.43

15

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-013.

91009-HC0-003

$31.43

15

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-014.

91009-HC0-003

$31.43

15

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-018.

91009-HC0-003

$31.43

15

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

16

BEARING A, CONNECTING ROD (RED) (TOYO) This part replaces 91002-437-004.

91002-440-003

Unavailable

16

BEARING A, CONNECTING ROD (RED) (TOYO)

91002-440-003

Unavailable

16

BEARING B, CONNECTING ROD (BLUE) (TOYO) This part replaces 91003-437-004.

91003-440-003

Unavailable

16

BEARING B, CONNECTING ROD (BLUE) (TOYO)

91003-440-003

Unavailable

16

BEARING C, CONNECTING ROD (WHITE) (TOYO) This part replaces 91004-437-004.

91004-440-003

Unavailable

16

BEARING C, CONNECTING ROD (WHITE) (TOYO)

91004-440-003

Unavailable

17

PIN, SPRING (2X16) (NOT AVAILABLE)

94305-20162

Unavailable

18

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
