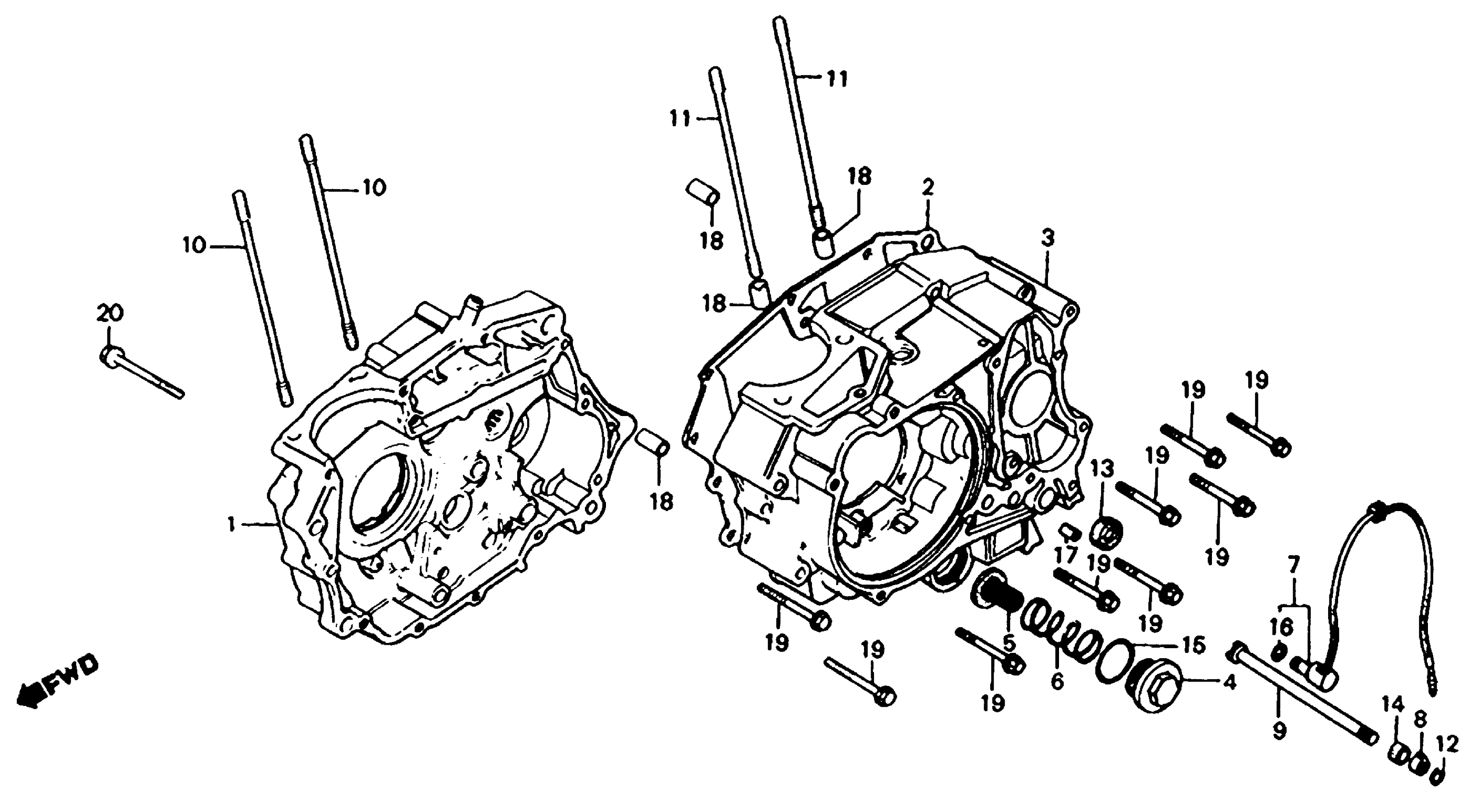

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-969-000

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-969-000.

11191-969-306

Unavailable

3

CRANKCASE, L.

11200-969-000

Unavailable

4

CAP, VALVE ADJ.

12361-383-000

$6.43

5

SCREEN, OIL FILTER

15421-107-000

$6.31

6

SPRING, OIL FILTER SCREEN

15426-107-000

$3.63

7

CONTACT ASSY., NEUTRAL SWITCH (NOT AVAILABLE)

35750-969-000

Unavailable

8

INDICATOR, NEUTRAL

35762-HF7-000

$4.17

8

INDICATOR, NEUTRAL This part replaces 35762-918-020.

35762-HF7-000

$4.17

9

SHAFT, NEUTRAL INDICATOR

35764-969-000

Unavailable

10

BOLT A, CYLINDER STUD

90031-427-010

Unavailable

11

BOLT B, CYLINDER STUD

90032-427-010

$10.95

12

CIRCLIP (5MM) (NOT AVAILABLE)

90601-816-000

Unavailable

13

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

14

OIL SEAL (8X16X6) This part replaces 91208-MS2-611.

91254-792-003

$2.92

14

OIL SEAL (8X16X6) This part replaces 91208-958-681.

91254-792-003

$2.92

14

OIL SEAL (8X16X6) This part replaces 91208-958-682.

91254-792-003

$2.92

15

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

16

O-RING (7X1.7)

91312-107-000

$3.18

17

PIN A, DOWEL (6X10)

94301-06100

$2.25

18

PIN A, DOWEL (10X14)

94301-10140

$2.28

19

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

19

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

20

BOLT, FLANGE (6X55) This part replaces 96000-06055-00.

96001-06055-00

$1.62

20

BOLT, FLANGE (6X55)

96001-06055-00

$1.62
