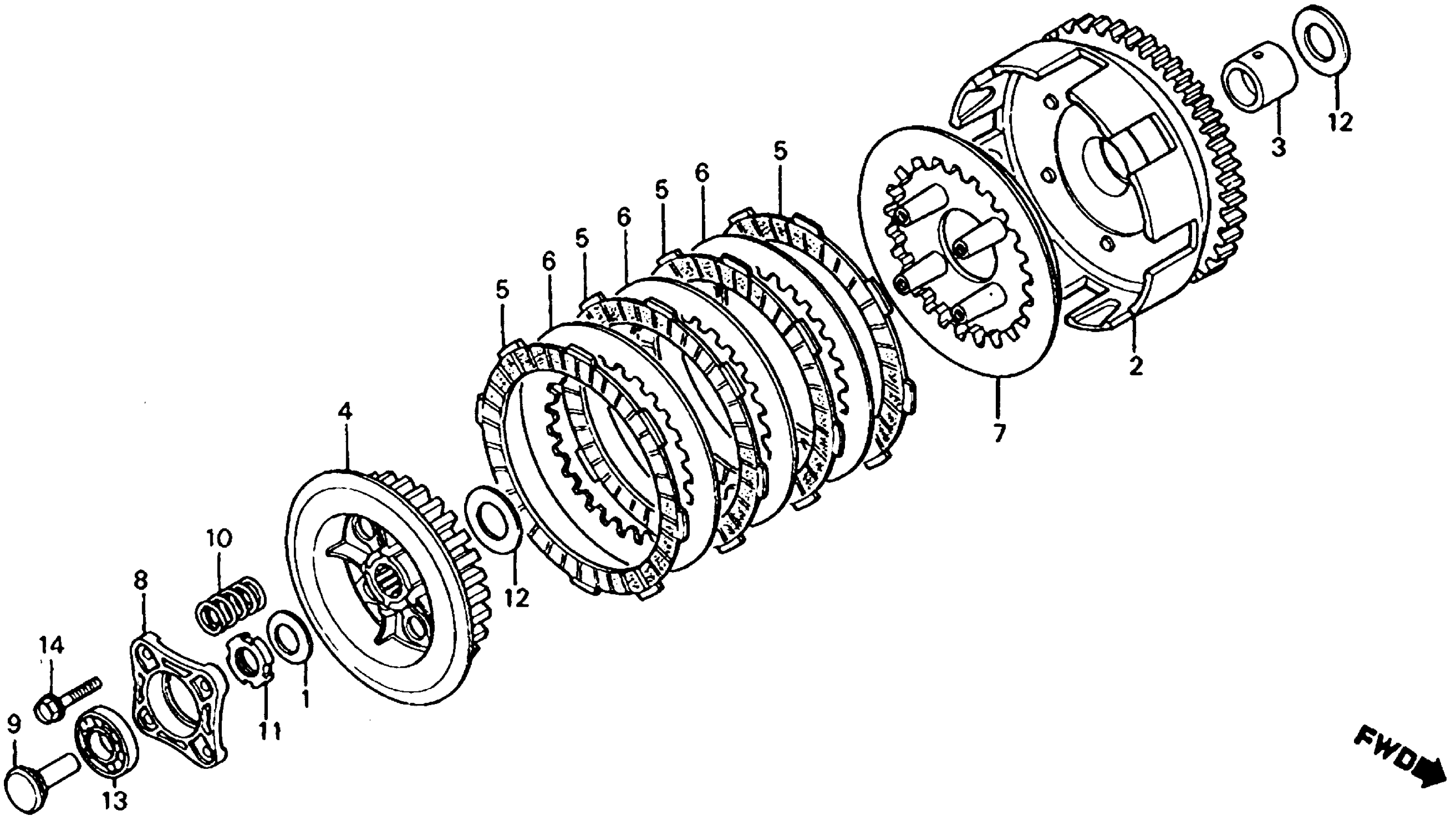

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 CLUTCH Diagram

#

Description
Price

1

WASHER, OIL FILTER ROTOR LOCKING

15451-107-000

$4.03

2

CLUTCH (OUTER)

22100-958-000

Unavailable

3

GUIDE, CLUTCH (OUTER) (NOT AVAILABLE)

22116-958-000

Unavailable

4

CENTER, CLUTCH (NOT AVAILABLE)

22121-958-000

Unavailable

5

DISK, CLUTCH FRICTION This part replaces 22201-GF6-000.

22201-166-000

$17.44

5

DISK, CLUTCH FRICTION

22201-166-000

$17.44

6

PLATE, CLUTCH

22311-KN4-680

$6.31

6

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$6.31

7

PLATE, CLUTCH PRESSURE

22350-115-020

$41.76

8

PLATE, CLUTCH LIFTER

22361-437-000

$14.82

9

ROD, CLUTCH LIFTER

22366-958-000

Unavailable

10

SPRING, CLUTCH

22401-958-000

Unavailable

11

NUT, LOCK (16MM)

90231-KCS-651

$4.21

11

NUT, LOCK (16MM) This part replaces 90231-200-010.

90231-KCS-651

$4.21

12

WASHER (20MM) (NOT AVAILABLE)

90432-958-000

Unavailable

13

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

13

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

13

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

13

BEARING, RADIAL BALL (16003)

91011-KK6-013

$15.40

14

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

14

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
