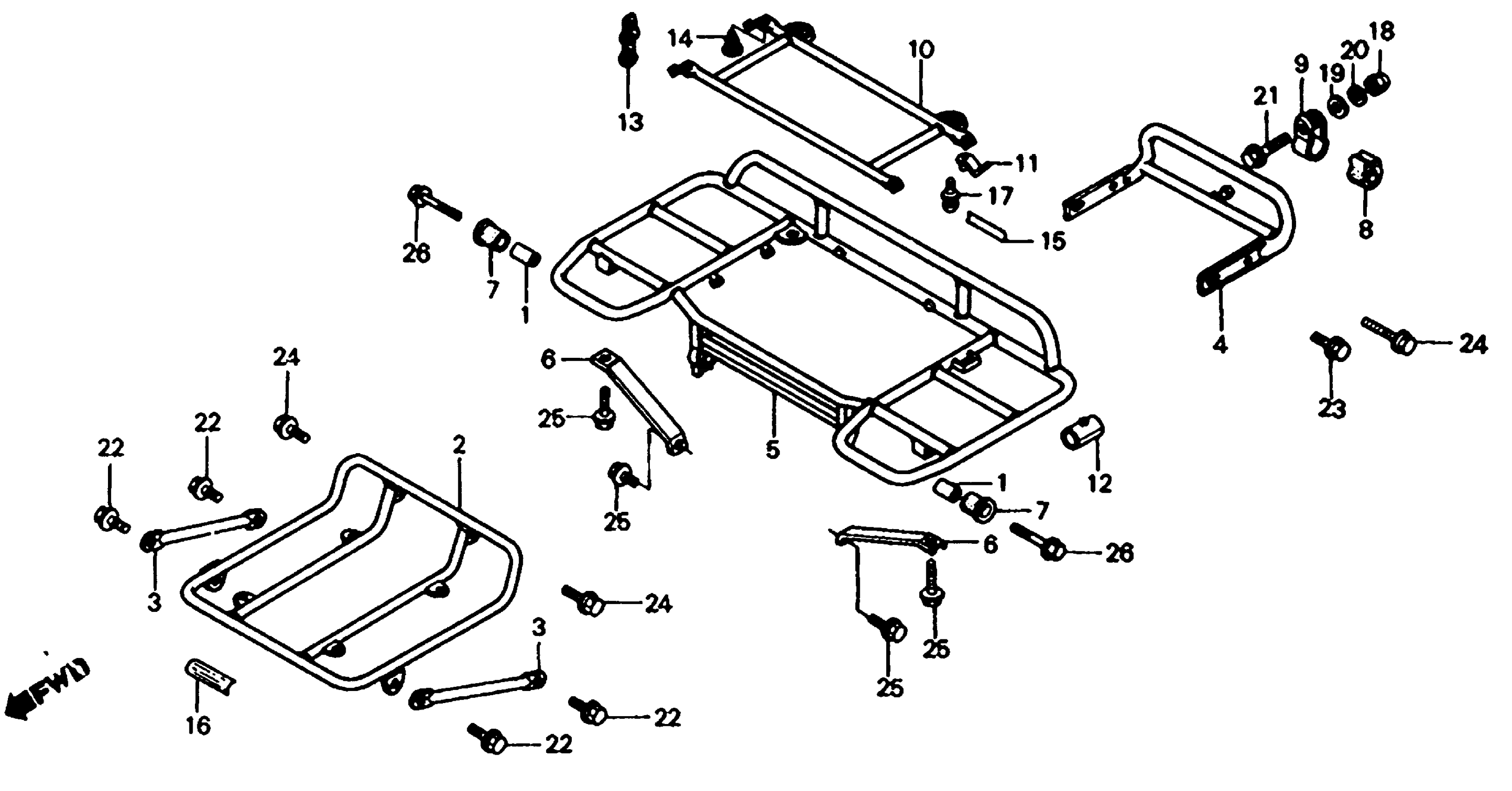

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 CARRIER Diagram

#

Description
Price

1

COLLAR, FORK RUBBER BUSH

52486-074-000

$3.77

2

CARRIER, FR. LUGGAGE (NOT AVAILABLE)

81100-958-680

Unavailable

3

PIPE, FR. CARRIER STAY (NOT AVAILABLE)

81101-958-680

Unavailable

4

PIPE, CARRIER (NOT AVAILABLE)

81200-958-680

Unavailable

5

CARRIER, RR. LUGGAGE (NOT AVAILABLE)

81300-969-000

Unavailable

6

SUPPORT, RR. CARRIER (NOT AVAILABLE)

81302-958-680

Unavailable

7

RUBBER, FR. CARRIER

81303-958-680

Unavailable

8

RUBBER, RR. CARRIER (NOT AVAILABLE)

81304-958-680

Unavailable

9

BRACKET, RR. CARRIER

81305-958-680

Unavailable

10

CARRIER, LUGGAGE SUB (NOT AVAILABLE)

81306-969-000

Unavailable

11

BRACKET, SUB-CARRIER

81307-958-680

$8.53

12

SPACER, SUB-CARRIER

81308-958-680

$9.75

13

BAND, SUB-CARRIER

81309-958-680

$11.56

14

RUBBER, SUB-CARRIER

81310-958-680

$4.99

15

LABEL, RR. CARRIER (NOT AVAILABLE)

87509-958-681

Unavailable

16

LABEL, FR. CARRIER (NOT AVAILABLE)

87511-958-681

Unavailable

17

SCREW-WASHER (6X12)

93893-06012-00

Unavailable

18

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

18

NUT, CAP (6MM)

94021-06020

$1.73

18

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

18

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

WASHER, SPRING (6MM)

94111-06000

$1.49

21

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

21

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

21

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

22

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.49

22

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

23

BOLT, FLANGE (8X12) This part replaces 95700-08012-08.

95701-08012-08

$1.80

23

BOLT, FLANGE (8X12)

95701-08012-08

$1.80

24

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

24

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

25

BOLT, FLANGE (8X25) This part replaces 95700-08025-08.

95701-08025-08

$1.49

25

BOLT, FLANGE (8X25)

95701-08025-08

$1.49

26

BOLT, FLANGE (8X32) This part replaces 95700-08032-08.

95701-08032-08

$2.28

26

BOLT, FLANGE (8X32)

95701-08032-08

$2.28
