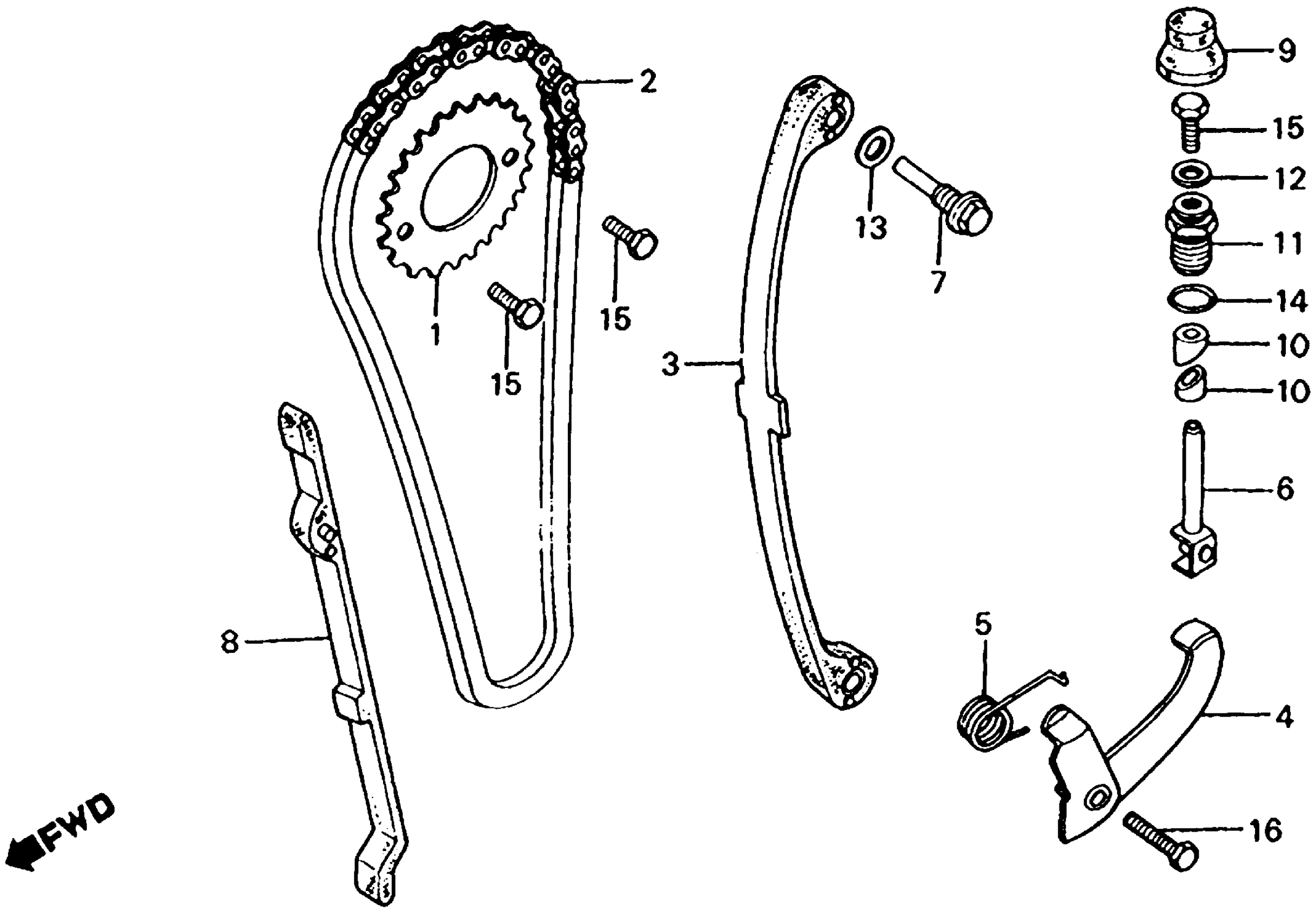

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (32T)

14321-440-000

$40.92

CHAIN, CAM (100L) (DAIDO)

14401-958-003

$77.35

TENSIONER, CAM CHAIN

14500-427-000

$70.69

ARM, CAM CHAIN TENSIONER

14510-958-000

Unavailable

SPRING, CAM CHAIN TENSIONER

14515-383-000

$4.86

BAR, TENSIONER SETTING

14520-969-010

$23.94

BOLT, CAM CHAIN TENSIONER PIVOT

14535-437-000

$6.01

GUIDE, CAM CHAIN

14550-427-000

$48.58

CAP, TENSIONER ADJUSTING

14564-VM3-000

Unavailable

COLLAR, SET BAR LOCKING

14626-383-000

$8.76

BOLT, SPECIAL (16MM)

90082-383-000

$24.66

WASHER, SEALING (6MM)

90441-028-010

$3.29

WASHER (8MM)

90481-035-000

$1.72

O-RING (13X2.5)

91335-567-000

$3.83

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.29

BOLT, HEX. (6X10) This part replaces 92000-06010-0A.

92101-06010-0A

$1.29

BOLT, HEX. (6X10)

92101-06010-0A

$1.29

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$0.96

BOLT, HEX. (6X20) This part replaces 92000-06020-0A.

92101-06020-0A

$0.96

BOLT, HEX. (6X20)

92101-06020-0A

$0.96
