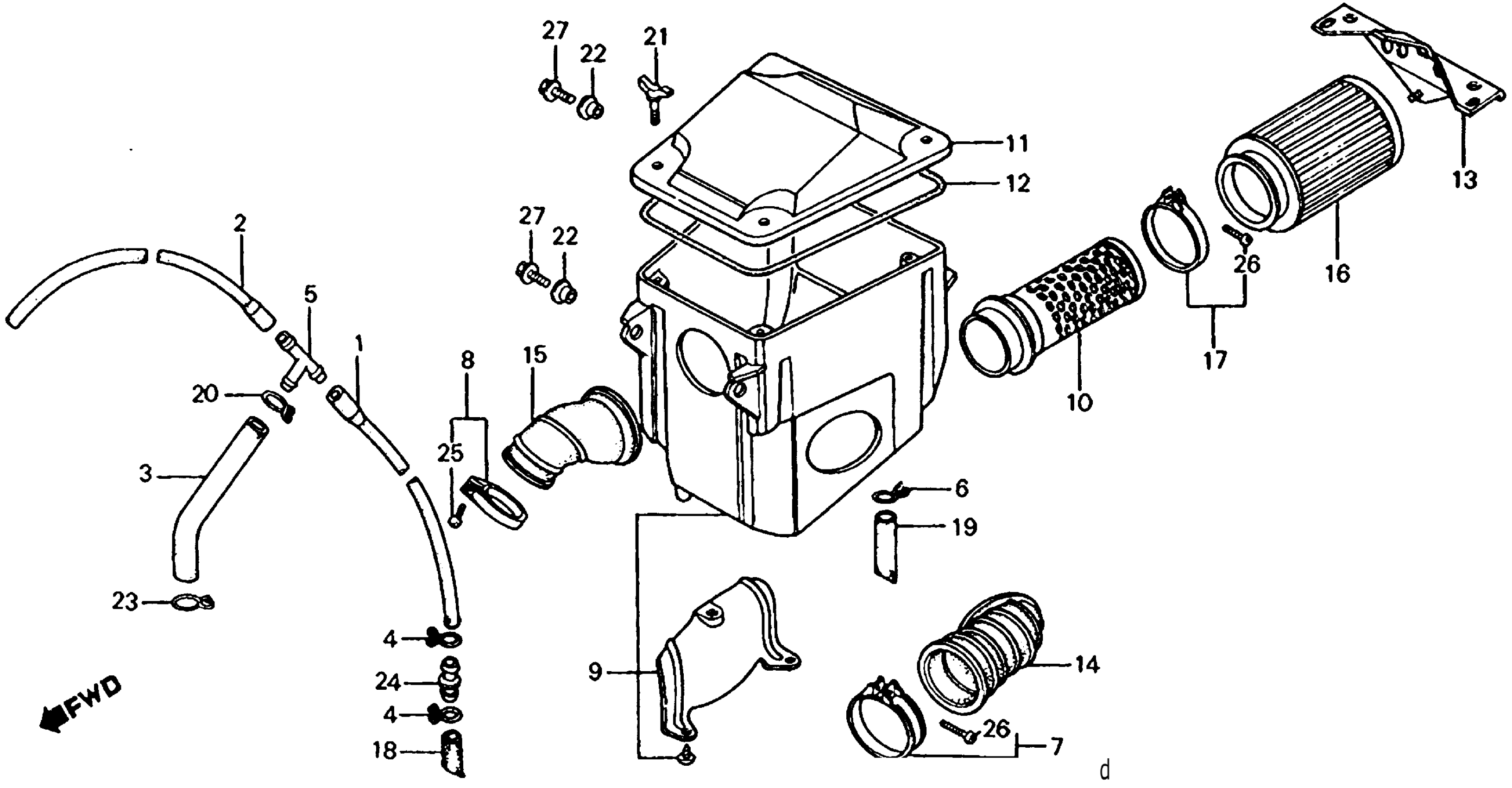

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 AIR CLEANER Diagram

#

Description
Price

1

TUBE A, BREATHER (NOT AVAILABLE)

15761-VM3-000

Unavailable

2

TUBE B, BREATHER (NOT AVAILABLE) This part replaces 15762-VM3-000.

15762-VM5-000

Unavailable

2

TUBE B, BREATHER (NOT AVAILABLE)

15762-VM5-000

Unavailable

3

TUBE C, BREATHER (NOT AVAILABLE)

15763-958-680

Unavailable

4

CLIP, BREATHER TUBE

15772-292-010

$2.92

5

JOINT, BREATHER THREE-WAY

15772-376-000

$19.49

6

CLIP, BREATHER TUBE

15772-500-010

$3.90

6

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

7

BAND, INSULATOR This part replaces 16223-KA4-000.

16223-KS5-000

$14.20

7

BAND, INSULATOR

16223-KS5-000

$14.20

8

BAND, INSULATOR

16223-317-000

$8.82

9

HOUSING, AIR CLEANER (NOT AVAILABLE)

17210-VM3-000

Unavailable

10

BODY, AIR CLEANER (NOT AVAILABLE)

17211-958-680

Unavailable

11

LID, AIR CLEANER HOUSING (NOT AVAILABLE)

17217-958-681

Unavailable

12

SEAL, AIR CLEANER HOUSING (NOT AVAILABLE)

17219-958-680

Unavailable

13

STAY, AIR CLEANER ELEMENT (NOT AVAILABLE)

17221-958-680

Unavailable

14

TUBE, AIR CLEANER IN.

17252-958-680

Unavailable

15

TUBE, CONNECTING (NOT AVAILABLE)

17253-958-682

Unavailable

16

ELEMENT, AIR CLEANER

17254-958-013

$22.60

17

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-961-000.

95018-56200

$9.55

17

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 90651-GHB-710.

95018-56200

$9.55

17

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56200

$9.55

18

TUBE, DRAIN

17358-170-000

$3.74

19

TUBE, DRAIN

17358-964-000

Unavailable

20

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

21

BOLT, AIR CLEANER COVER

90143-958-405

Unavailable

21

BOLT, AIR CLEANER COVER This part replaces 90143-958-680.

90143-958-405

Unavailable

22

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

23

CLIP, AIR BLEED

90656-579-000

$7.13

24

JOINT, TUBE

91463-393-780

$1.80

25

SCREW, PAN (4X16)

93500-04016-0H

$1.49

26

SCREW, PAN (5X20)

93500-05020-0A

$1.49

27

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

27

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
