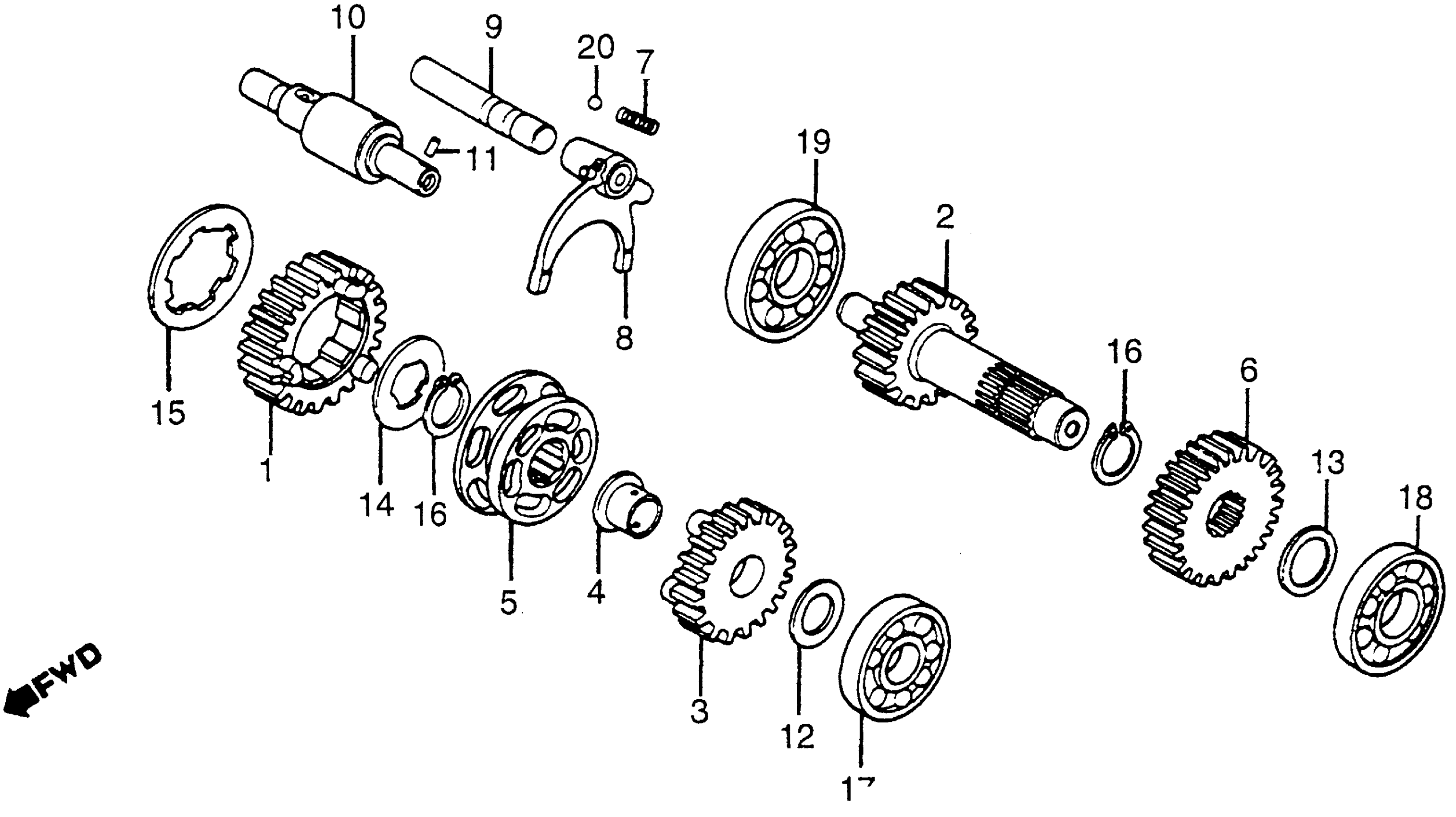

Honda ATC200EA (83) BIG RED, JPN, VIN# JH3TB051-DC203548 SUB TRANS Diagram

#

Description
Price

1

GEAR, SUB-TRANSMISSION DRIVE HIGH (NOT AVAILABLE)

23911-958-681

Unavailable

2

GEAR, SUB-TRANSMISSION DRIVEN HIGH (NOT AVAILABLE)

23921-958-680

Unavailable

3

GEAR, SUB-TRANSMISSION DRIVEN LOW

23931-958-680

Unavailable

4

BUSH, SUB-TRANSMISSION DRIVE LOW GEAR (NOT AVAILABLE)

23933-958-680

Unavailable

5

SLIDER, SUB-TRANSMISSION

23935-958-680

Unavailable

6

GEAR, SUB-TRANSMISSION DRIVEN LOW (19T) (NOT AVAILABLE)

23941-958-680

Unavailable

7

SPRING, BALL SETTING (NOT AVAILABLE)

24271-053-010

Unavailable

8

FORK, SUB-TRANSMISSION SHIFT (NOT AVAILABLE)

24711-958-680

Unavailable

9

SHAFT, SUB-TRANSMISSION SHIFT FORK (NOT AVAILABLE)

24712-958-680

Unavailable

10

DRUM, SUB-TRANSMISSION GEARSHIFT (NOT AVAILABLE)

24721-958-680

Unavailable

11

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

12

WASHER, THRUST (15MM)

90412-187-000

$2.05

13

WASHER (17MM)

90452-115-000

$2.20

14

WASHER, SPLINE (20MM) (NOT AVAILABLE)

90455-958-680

Unavailable

15

WASHER, SPLINE (35MM)

90462-958-680

Unavailable

16

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

17

BEARING, RADIAL BALL (6202)

96100-62020-00

$9.18

18

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70

19

BEARING, RADIAL BALL (6302)

96100-63020-00

$8.91

20

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
